约翰迪尔零件查询600 - AMT DRIVE SPROCKETS, CHAIN AND AXLES (51")EPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 387 次

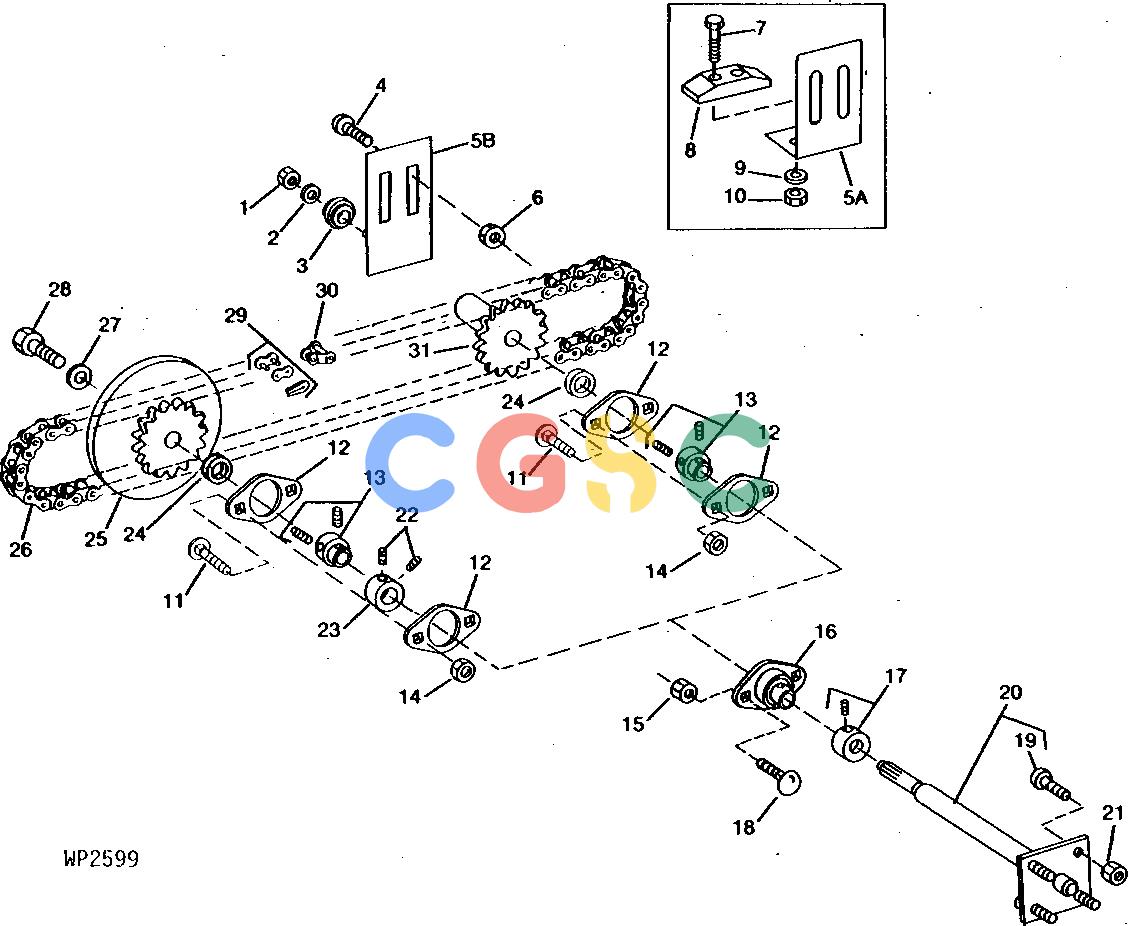

Pos.	Part No	Qty	Parts name	Comments
1.	14M7167	[2]	Lock Nut	M10
2.	24M7178	[2]	Washer	10.500 X 30 X 2.500 MM
3.	W40951	[2]	Idler	(USE AN115321 SPROCKET IN PLACE OF W40951 ROLLER IDLER FOR HEAVY DUTY APPLICATIONS.)
3.	AN115321	[2]	Idler Sprocket	(USE AN115321 SPROCKET IN PLACE OF W40951 ROLLER IDLER FOR HEAVY DUTY APPLICATIONS.)
4.	03M7191	[4]	Bolt	M10 X 25
5A.	R87622	[2]	Angle	(USE AN115321 SPROCKET IN PLACE OF W40951 ROLLER IDLER FOR HEAVY DUTY APPLICATIONS.) (SUB AW27217, W40951, 24M7178 AND 14M7167)
5B.	AW27217	[2]	Support
6.	14M7167	[4]	Lock Nut	M10
7.	19M8146	[4]	Screw	M5 X 16
8.	R87623	[2]	Pad	(SUB AW27217, W40951, 14M7167 AND 24M7178)
9.	24H1283	[4]	Washer	7/32" X 1/2" X 0.049"
10.	14M7360	[4]	Lock Nut	M5
11.	03M7184	[8]	Bolt	M8 X 20
12.	M66125	[8]	Pressed Flanged Housing
13.	AM108591	[4]	Ball Bearing	(SUB FOR JD10419)
14.	14M7166	[8]	Lock Nut	M8
15.	14M7167	[8]	Lock Nut	M10
16.	AM108565	[4]	Bearing With Housing	(FLUSH MOUNT FLANGETTE/BEARING ASSEMBLY)
17.	JD8544	[4]	Eccentric Locking Collar
18.	03M7191	[8]	Bolt	M10 X 25
19.	A44553	[16]	Bolt
20.	AM108546	[4]	Axle
21.	A45904	[16]	Nut
22.	22H979	[4]	Set Screw	3/8" X 3/8"
23.	R91570	[2]	Ring
24.	R91571	[4]	Spacer
25.	RE28816	[2]	Chain Sprocket
26.	RE28723	[2]	Roller Chain	(NO. 50) (5/8") (112 LINKS)
27.	24H1928	[2]	Washer	11/32" X 1-3/8" X 1/4"
28.	R91461	[2]	Cap Screw	M8 X 45
29.	P20351	[AR]	Chain Link
30.	P20352	[AR]	Chain Link
31.	AM108569	[2]	Chain Sprocket
