约翰迪尔零件查询600 - AMT STEERING FORKEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 230 次

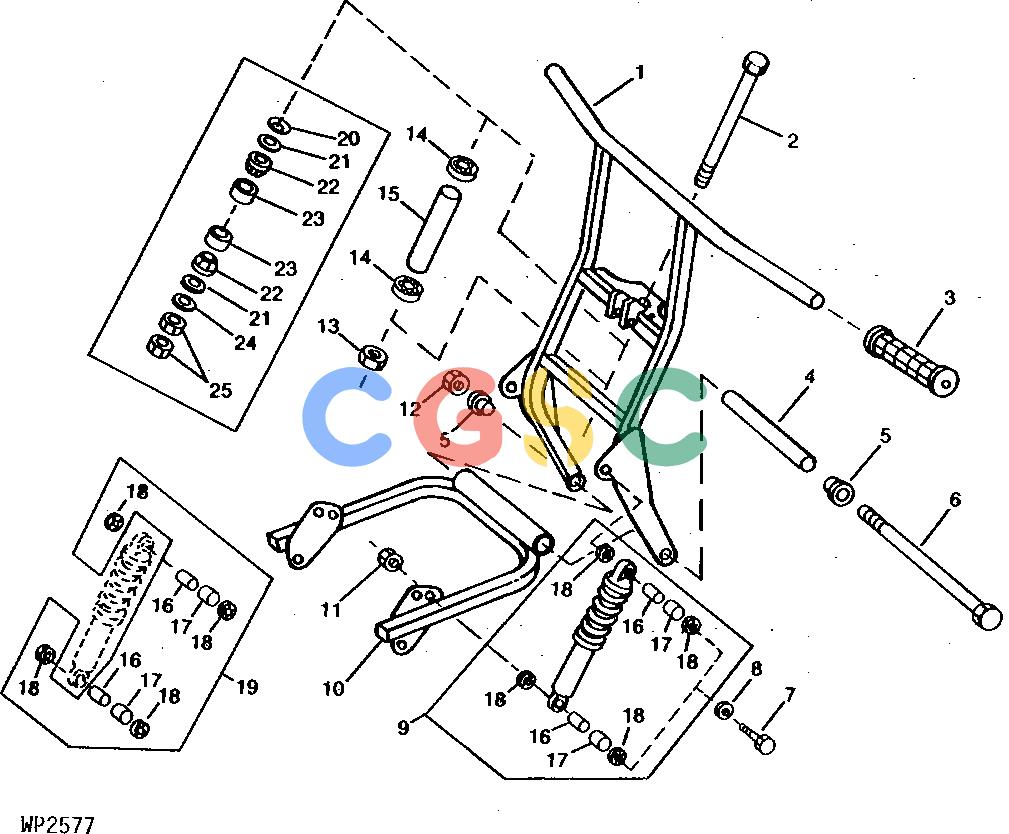

Pos.	Part No	Qty	Parts name	Comments
1.	AW26409	[1]	Fork	(SUB FOR RE28143)
2.	19H3373	[1]	Cap Screw	5/8" X 9"
3.	R89833	[2]	Grip
4.	M96382	[1]	Spacer	(SUB FOR R88690) (SUB FOR W40742)
5.	M96375	[2]	Bushing	(BUSHING IS A PRESS FIT) (SUB FOR M44968)
6.	19H3459	[1]	Cap Screw	3/8" X 13-1/2"
7.	19M7358	[4]	Cap Screw	M10 X 40
8.	24M7028	[4]	Washer	10.500 X 20 X 2 MM
8.	24H1309	[4]	Washer	13/32" X 1-1/16" X 0.120"
9.	AM108525	[2]	Shock Absorber	(REPLACE SHOCKS IN PAIRS) (SUB FOR RE28724)
10.	AM108540	[1]	Yoke	(SUB FOR RE28218 OR AW26926) (ALSO ORDER M96382 AND (2) M96375)
11.	14M7167	[4]	Lock Nut	M10
12.	T11234	[1]	Lock Nut	3/8"
13.	K40015	[1]	Lock Nut	15.875 MM
14.	JD9214	[2]	Ball Bearing
15.	R90791	[1]	Spacer	NLA
16.	W39681	[2]	Bushing	(ORDER AM108526)
16.	........	[2]	Bushing	(ORDER AM108526)
17.	W39682	[2]	Bushing	(ORDER AM108526)
17.	........	[2]	Bushing	(ORDER AM108526)
18.	........	[4]	Washer	(ORDER AM108526)
19.	AM108526	[AR]	Absorber Kit
20.	M47959	[1]	Washer	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS)
21.	24H1139	[3]	Washer	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS) 11/16" X 1-1/4" X 0.105"
22.	M96617	[2]	Bearing Cone	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS)
23.	M96616	[2]	Bearing Cup	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS)
24.	24H1740	[3]	Washer	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS) 21/32" X 1-3/8" X 0.032"
25.	K40015	[2]	Lock Nut	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS) 15.875 MM
...	TY15969	[1]	Adhesive	(FIELD CONVERSION TO TAPERED ROLLER BEARINGS)
