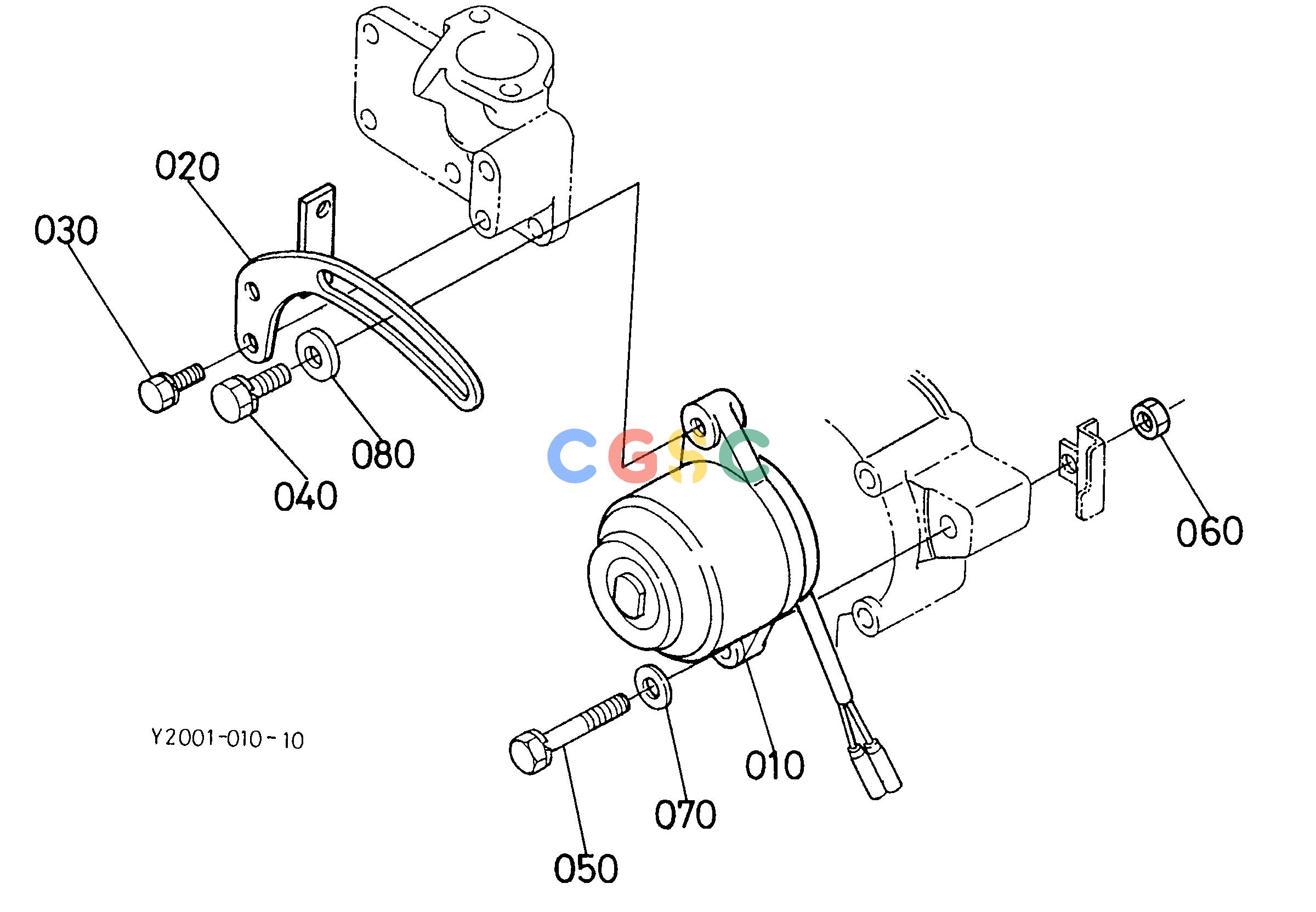

久保田零件查询T03501 DYNAMO [A AU] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1553164010
|
[1] |
ASSY DYNAMO
|
3.0800(lbs); 1.400
|
| 020. |
1565564420
|
[1] |
STAY DYNAMO
|
0.2420(lbs); 0.110
|
| 030. |
0102350616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 040. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
| 050. |
0112350860
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 060. |
0205650080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0401560080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
