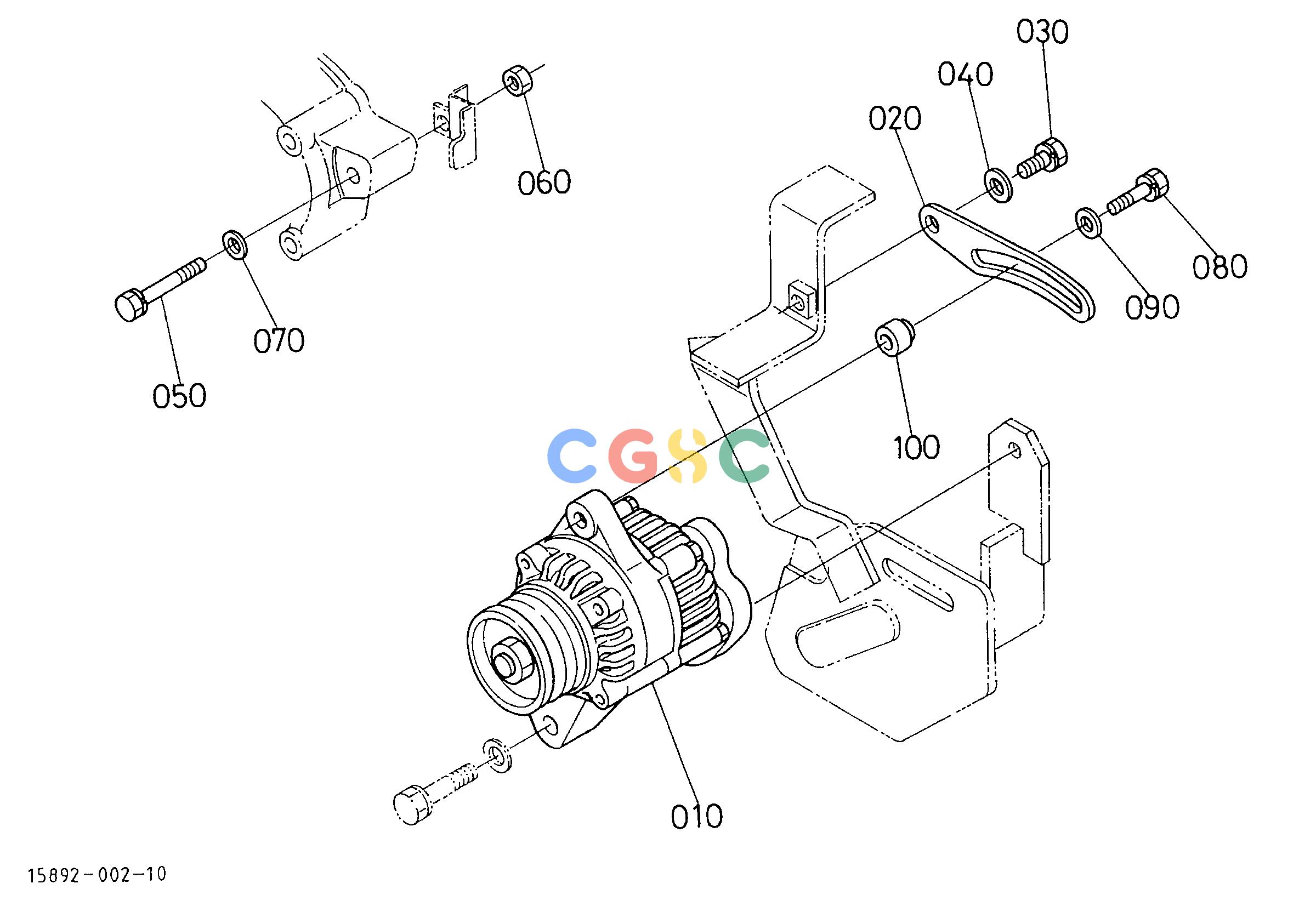

久保田零件查询T03502 ALTERNATOR [CA] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1624164010
|
[1] |
ASSY ALTERNATOR
|
6.6000(lbs); 3.000
|
| 020. |
1545164420
|
[1] |
STAY DYNAMO
|
0.3300(lbs); 0.150
|
| 030. |
0113351030
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 040. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 050. |
0112350845
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 060. |
0205650080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0112350835
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 090. |
0401560080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 100. |
6642664140
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
