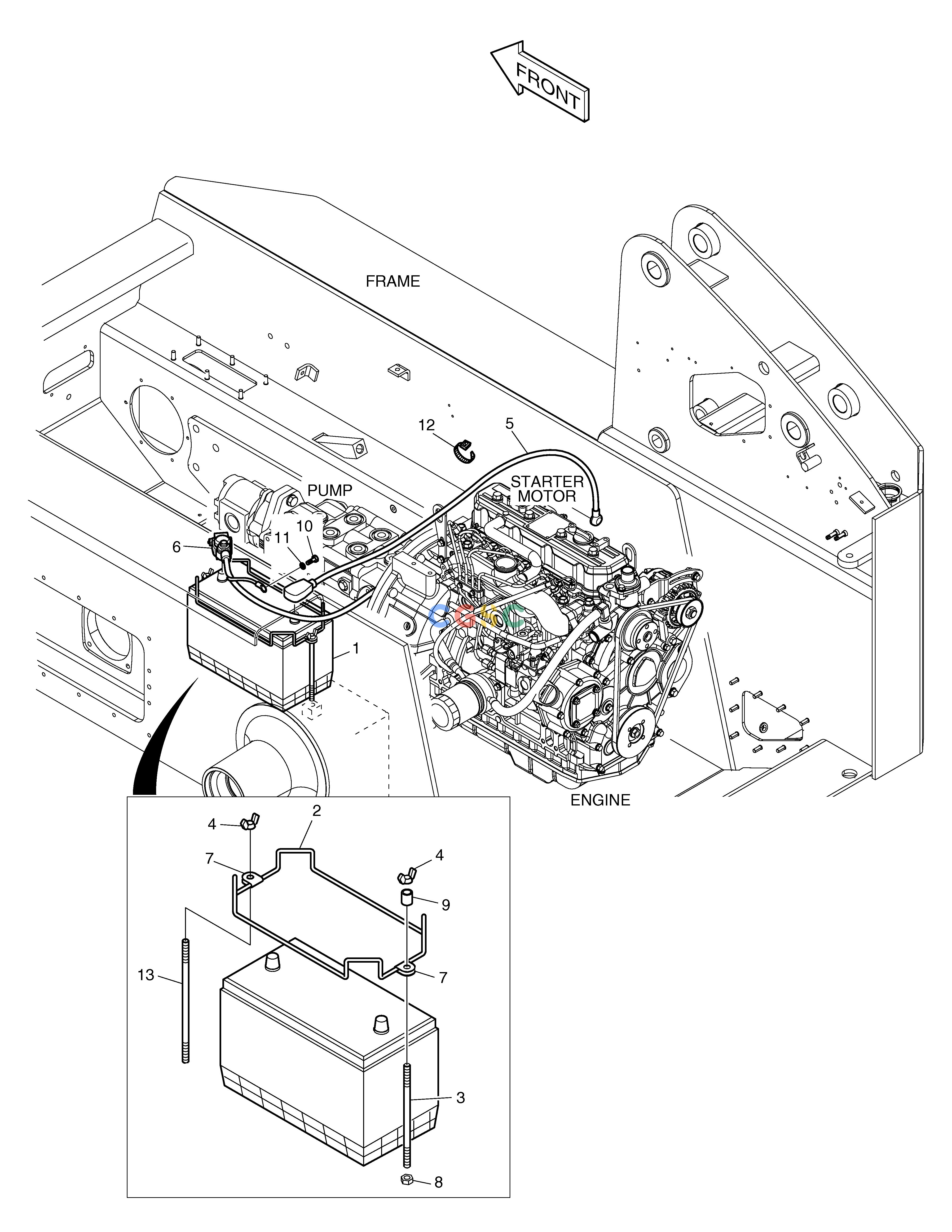

斗山零件查询ELECTRIC PARTS-BATTERY 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021262
|
[-] |
ELECTRIC PARTS-BATTERY
|
|
| 1. |
2506-1104
|
[1] |
BATTERY
|
|
| 10. |
S0511463
|
[2] |
BOLT
|
|
| 11. |
K1023135
|
[2] |
WASHER;LOCK
|
|
| 12. |
K1022971
|
[2] |
CLIP;BAND
|
|
| 13. |
K1022300
|
[1] |
BOLT;STUD
|
|
| 2. |
K1022954
|
[1] |
HOLDER;BATTERY
|
|
| 3. |
K1022955
|
[1] |
BOLT;STUD
|
|
| 4. |
S4540603
|
[2] |
NUT;WING M10X1.5
|
|
| 5. |
K1019069
|
[1] |
CABLE;BATTERY
|
|
| 6. |
K1022956
|
[1] |
CABLE;EARTH
|
|
| 7. |
K1022957
|
[2] |
CLIP
|
|
| 8. |
S4016633
|
[2] |
NUT
|
|
| 9. |
K1022958
|
[1] |
SPACER
|
|
