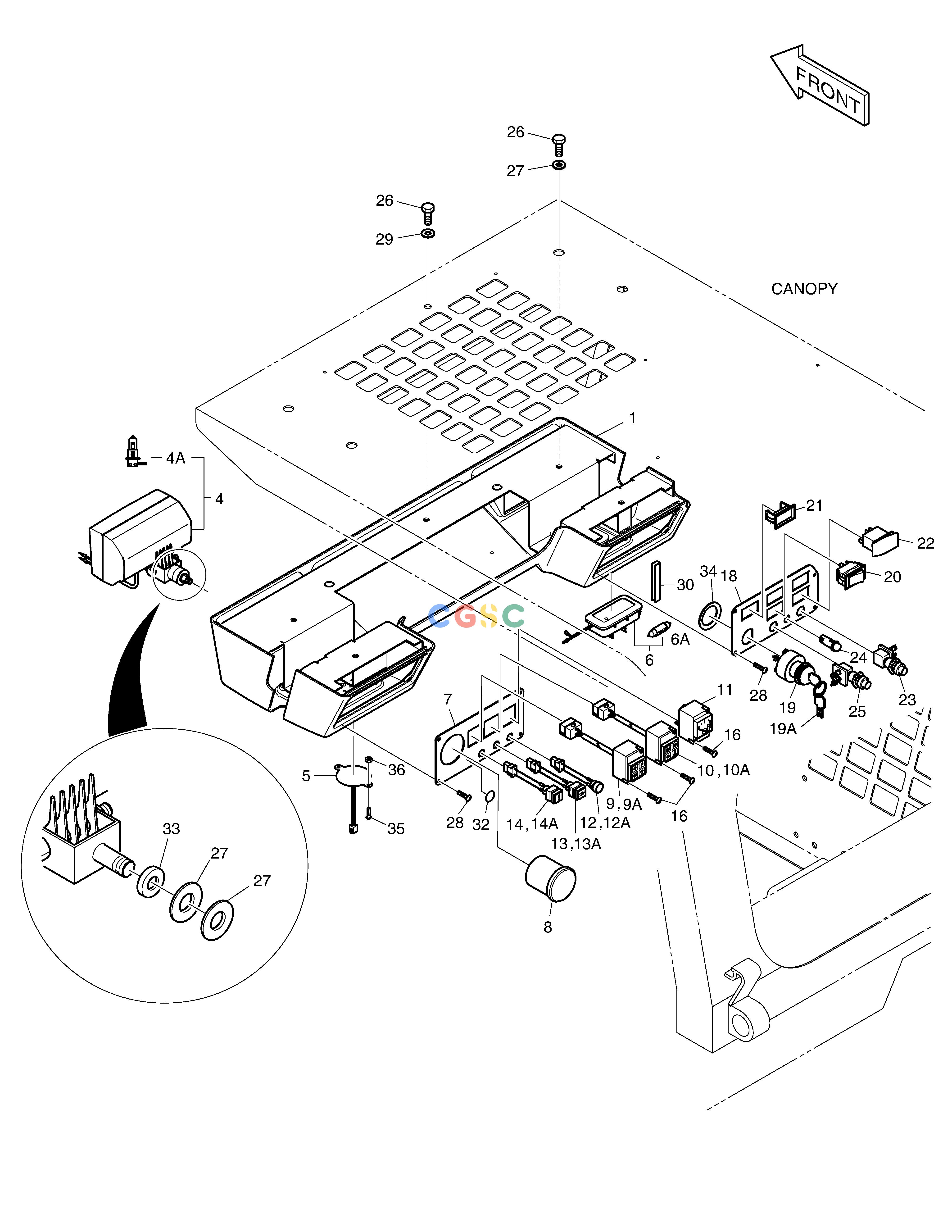

斗山零件查询ELECTRIC PARTS-INSTRUMENT PANEL 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
976 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300605-00021
|
[-] |
|
|
| 1. |
K1020919
|
[1] |
COVER
|
|
| 10. |
K1022998
|
[1] |
LAMP;WARNING
|
|
| 10A. |
K1019111
|
[4] |
BULB
|
|
| 11. |
K1023040
|
[1] |
GAUGE;FUEL
|
|
| 12. |
K1022896
|
[1] |
LAMP;PARKING
|
|
| 12A. |
K1022897
|
[1] |
LAMP;PILOT(PARKING)
|
|
| 13. |
K1022999
|
[1] |
LAMP;PILOT(STOP)
|
|
| 13A. |
K1022899
|
[1] |
LAMP;PILOT(STOP)
|
|
| 14. |
K1023000
|
[1] |
LAMP;PILOT
|
|
| 14A. |
K1022900
|
[1] |
LAMP;PILOT
|
|
| 16. |
S3450583
|
[6] |
SCREW
|
|
| 18. |
K1020567
|
[1] |
PANEL (R.H)
|
|
| 19. |
K1019659
|
[1] |
SWITCH;STARTER
|
|
| 19A. |
K1019104
|
[1] |
KEY;STARTER
|
|
| 20. |
K1019048
|
[1] |
SWITCH
|
|
| 21. |
K1019047
|
[3] |
PLUG
|
|
| 22. |
K1020089
|
[1] |
SWITCH;ROCKER
|
|
| 23. |
K1020091
|
[1] |
SWITCH
|
|
| 24. |
K1020092
|
[1] |
INDICATOR;LAMP
|
|
| 25. |
K1020090
|
[1] |
SWITCH
|
|
| 26. |
S0509063
|
[5] |
BOLT M8X1.25X25
|
|
| 27. |
K1023144
|
[8] |
WASHER
|
|
| 28. |
S3450583
|
[8] |
SCREW
|
|
| 29. |
K1023146
|
[1] |
WASHER;HARDENED
|
|
| 30. |
K1019747
|
[9] |
STRIP;BULK
|
|
| 32. |
K1029438
|
[1] |
FILM
|
|
| 33. |
K1023159
|
[2] |
WASHER;HARDENED
|
|
| 34. |
K1029120
|
[1] |
SHIM
|
|
| 35. |
S3450353
|
[2] |
SCREW M3X0.5X12
|
|
| 36. |
S4012003
|
[2] |
NUT
|
|
| 4. |
K1022967
|
[2] |
LAMP
|
|
| 4A. |
2515-1016D2
|
[1] |
BULB
|
|
| 5. |
K1022920
|
[1] |
BUZZER;PILOT
|
|
| 6. |
K1023001
|
[1] |
LAMP;ROOM
|
|
| 6A. |
2515-1021D6
|
[1] |
BULB
|
|
| 7. |
K1020568
|
[1] |
PANEL
|
|
| 8. |
K1019658
|
[1] |
METER;HOUR
|
|
| 9. |
K1019110
|
[1] |
LAMP;WARNING
|
|
| 9A. |
K1019111
|
[4] |
BULB
|
|
