沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical System and Instruments 1-pole Electrical SystemEPC Volvo Penta Parts catal
广数供应链运营团队, 14 02月, 2025，浏览：
810 次

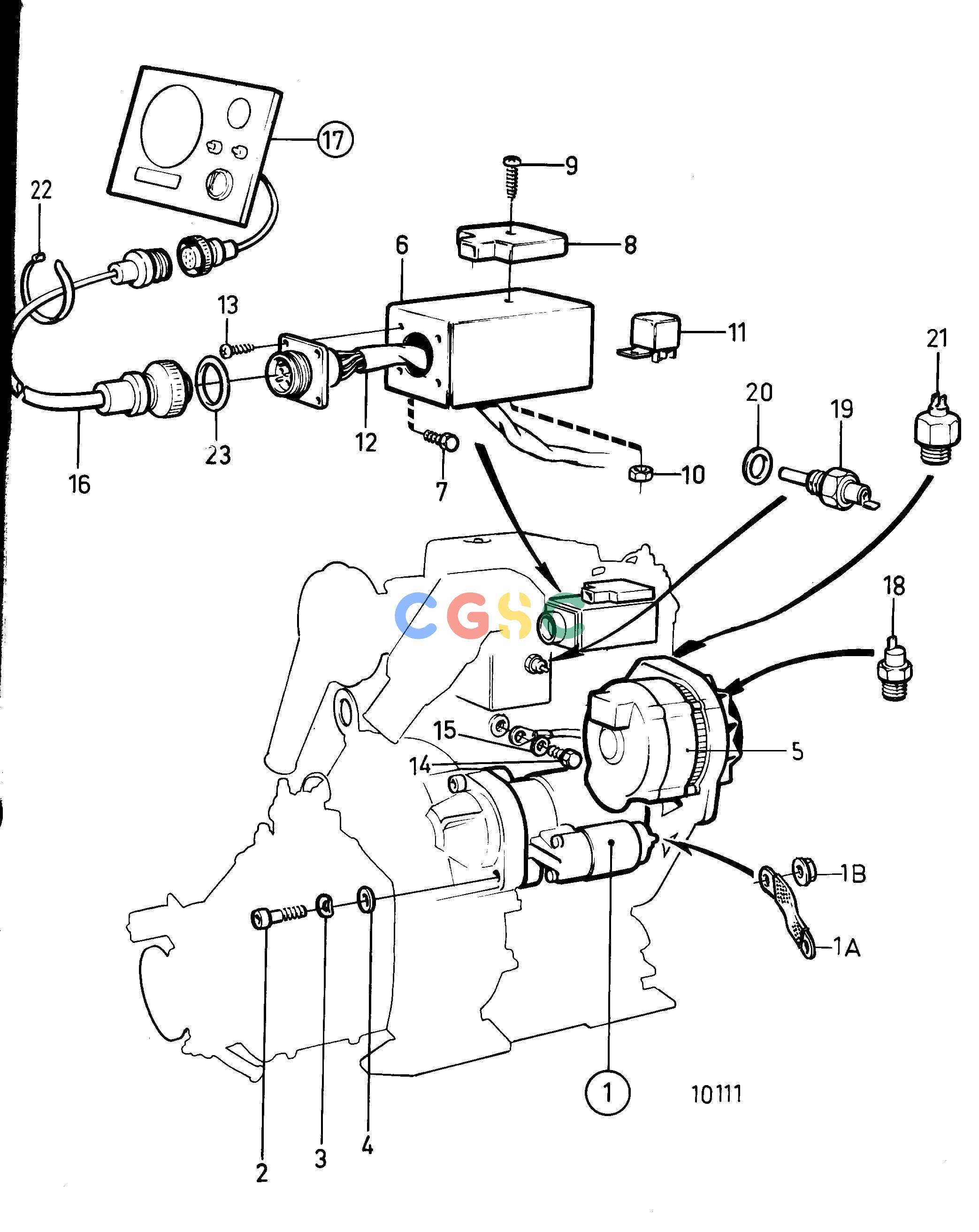

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840901
|
[1] |
Starter motor, starter motor
|
Replaced by starter motor 859553,ground cable 968048,plate 945408 as well as screw 955305 and spacer
|
| 1. |
|
|
|
SN2300044289-
|
| 1. |
859553
|
[1] |
Starter motor, starter motor
|
Also available as an exchange part., 2-pole
|
| 1A. |
968048
|
[1] |
Chassis ground cable
|
For 859553
|
| 1B. |
945408
|
[1] |
Flange nut
|
For 859553
|
| 2. |
959257
|
[2] |
Hex. socket screw
|
L=40mm
|
| 3. |
940280
|
[2] |
Spring washer
|
|
| 4. |
943194
|
[2] |
Washer
|
|
| 5. |
7726000_225
|
|
alternator and installation comps
|
|
| 5. |
|
|
|
|
| 6. |
840672
|
[1] |
Attaching plate
|
|
| 7. |
941793
|
[2] |
Hex. socket screw
|
L=12mm
|
| 8. |
873566
|
[1] |
Fuse box
|
|
| 9. |
969408
|
[1] |
Six point socket scr
|
|
| 10. |
955780
|
[1] |
Hexagon nut
|
|
| 11. |
876037
|
[1] |
Relay kit
|
12V/30A
|
| 12. |
840694
|
[1] |
Cable block
|
Productno.867831,867832,867833
|
| 12. |
858126
|
[1] |
Cable block
|
Productno.868089,868090, For W
|
| 12. |
7726000_255
|
|
cables and cable terminals
|
|
| 13. |
955119
|
[4] |
Cross recessed screw
|
|
| 14. |
970945
|
[1] |
Hexagon screw
|
(955315)
|
| 15. |
940109
|
[1] |
Toothed washer
|
|
| 16. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 16. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 16. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 17. |
840922
|
[1] |
Instrument panel
|
Productno.867831,867832,867833, Repl by 858870
|
| 17. |
858870
|
[1] |
Instrument panel
|
Repl by 859057
|
| 17. |
859057
|
[1] |
Instrument panel
|
Productno.868089,868090.
|
| 17. |
873594
|
[1] |
Instrument panel
|
|
| 18. |
1324750
|
[1] |
Oil pressure sensor
|
|
| 19. |
833927
|
[1] |
Thermo monitor
|
|
| 20. |
947624
|
[1] |
Gasket
|
|
| 21. |
1502028
|
[1] |
Tachometer sensor
|
See group 9
|
| 22. |
948211
|
[1] |
Cable tie
|
|
| 23. |
846615
|
[1] |
Sealing ring
|
|
