沃尔沃零件查询2001 2001B 2001AG 2001BG 2002 2002B 2002D 2002AG 2002BG 2003 2003B 2003D 2003AG 2003BG 2003T 2003TB 2003 SOLAS 2003B SOLAS 2003TElectrical SystemElectrical System and Instruments 1-pole Electrical SystemEPC Volvo Penta Parts catal_沃尔沃遍达Volvo Penta_工程机械

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical System and Instruments 1-pole Electrical SystemEPC Volvo Penta Parts catal

广数供应链运营团队, 14 02月, 2025，浏览： 614 次

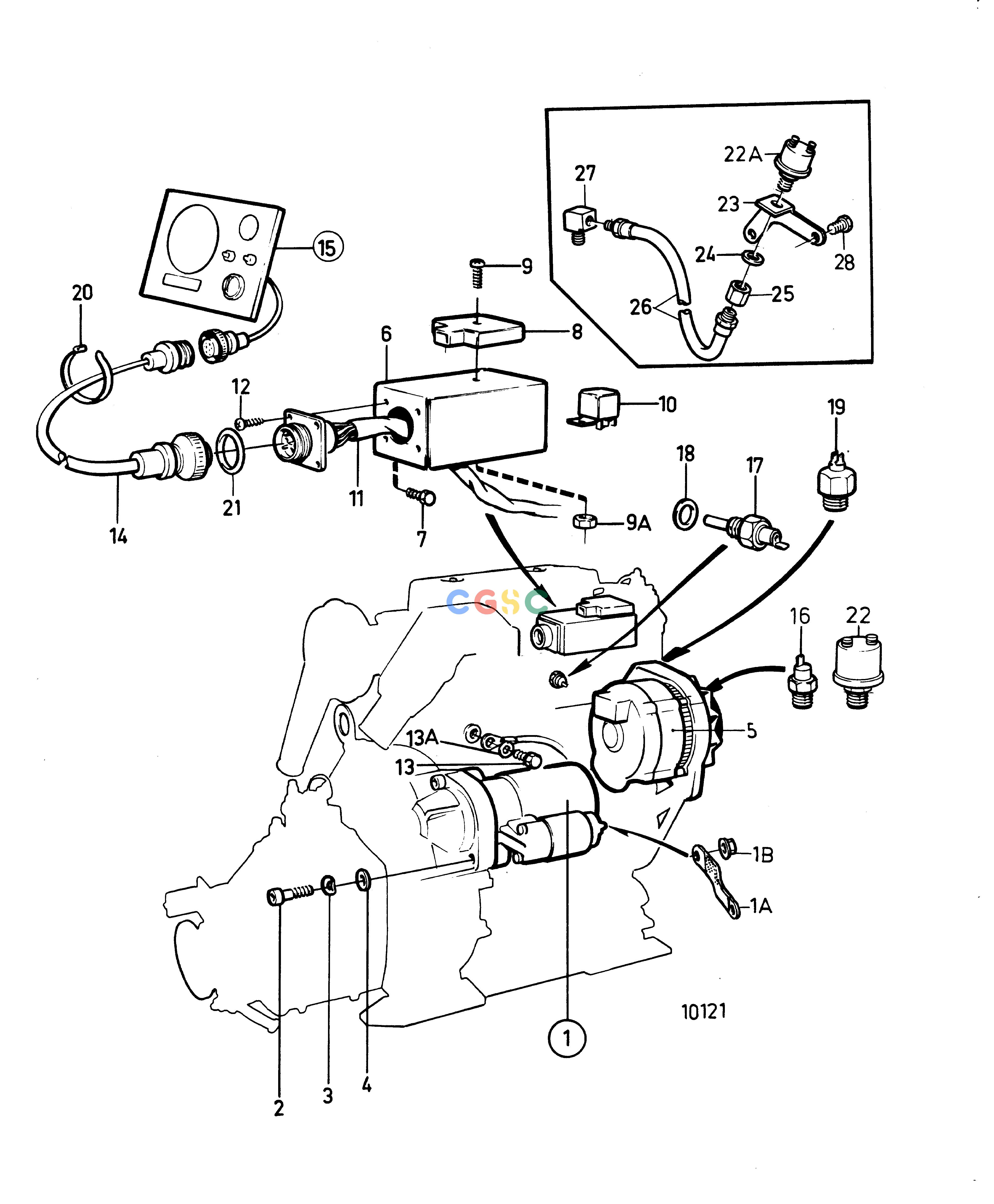

Pos.	Part No	Qty	Parts name	Comments
1.	840808	[1]	Starter motor, starter motor	Replaced by starter 859553 + ground cable 968048 + plate 945408., Also available as an exchange part
1.				SN2300051510-
1.	859553	[1]	Starter motor, starter motor	Replaced by 1-pole starter motor 872241.Ground cable 968048 should not be used when 1-pole starter m
1.	872241	[1]	Starter motor, starter motor	Also available as an exchange part., 1-pole
1A.	968048	[1]	Chassis ground cable	For 859553
1B.	945408	[1]	Flange nut	For 859553
2.	959257	[2]	Hex. socket screw	L=40mm
3.	940280	[2]	Spring washer
4.	943194	[2]	Washer
5.	7726000_226		alternator and installation comps
6.	840672	[1]	Attaching plate
7.	941793	[2]	Hex. socket screw	L=12mm
8.	873566	[1]	Fuse box
9.	969408	[1]	Six point socket scr	L=20mm
9A.	955780	[1]	Hexagon nut
10.	876037	[1]	Relay kit	12V/30A
11.	840694	[1]	Cable block	Prodno.867801,867802,867803,867805,867806,867807.
11.	858126	[1]	Cable block	Productno.867808,868004,868039,868040,868094,868096, 868097,868098, For W
11.	858524	[1]	Cable block	Productno.868012,868095, Productno.868216., For W
11.				De luxe
11.	7726000_255		cables and cable terminals
12.	955119	[4]	Cross recessed screw
13.	970945	[1]	Hexagon screw
13A.	940109	[1]	Toothed washer
14.	846648	[1]	Extension cable	L=3000mm
14.	846649	[1]	Extension cable	L=5000mm
14.	846650	[1]	Extension cable	L=7000mm
15.	840922	[1]	Instrument panel	Productno.867801,867802,867803., Repl by 858870
15.	858870	[1]	Instrument panel	Productno.867801,867802,867803.
15.	858017	[1]	Instrument panel	Productno.867805,867806,867807., Replaced by instrument panel 858871 and conversion kit 876139
15.	858127	[1]	Instrument panel	Productno.867808,868039,868040., Repl by 858871
15.	858871	[1]	Instrument panel	Prodno.868004., Repl by 859058
15.	859058	[1]	Instrument panel	Productno.868092,868093,868094,868096,868097,868098
15.	858238	[1]	Instrument panel	Productno.868012, Repl by 859059
15.	859059	[1]	Instrument panel	Productno.868095., SN-2300042200
15.				Repl by 864038
15.	864038	[1]	Instrument panel	Productno.868095., Productno.868216., SN2300042201-
16.	1324750	[1]	Oil pressure sensor	Productno.867801,867802,867803,867805,867806,867807, 867808,868004,868039,868040.
17.	833927	[1]	Thermo monitor
17.	840345	[1]	Temperature sensor	Productno.868012,868095, Productno.868216., De luxe
18.	947624	[1]	Gasket
19.	1502028	[1]	Tachometer sensor	Early type
20.	948211	[1]	Cable tie
21.	846615	[1]	Sealing ring
22.	366906	[1]	Pressure sensor	Productno.868216., De luxe
22A.	366906	[1]	Pressure sensor	Productno.868012,868095, De luxe
23.	858858	[1]	Bracket	Productno.868012,868095, De luxe
24.	976945	[1]	Washer	Productno.868012,868095, De luxe
25.	828805	[1]	Nipple	Productno.868012,868095, De luxe
26.	344624	[1]	Hose assembly	Productno.868012,868095, De luxe
27.	180110	[1]	Elbow nipple	Productno.868012,868095, De luxe
28.	955301	[2]	Hexagon screw	Productno.868012,868095, De luxe
