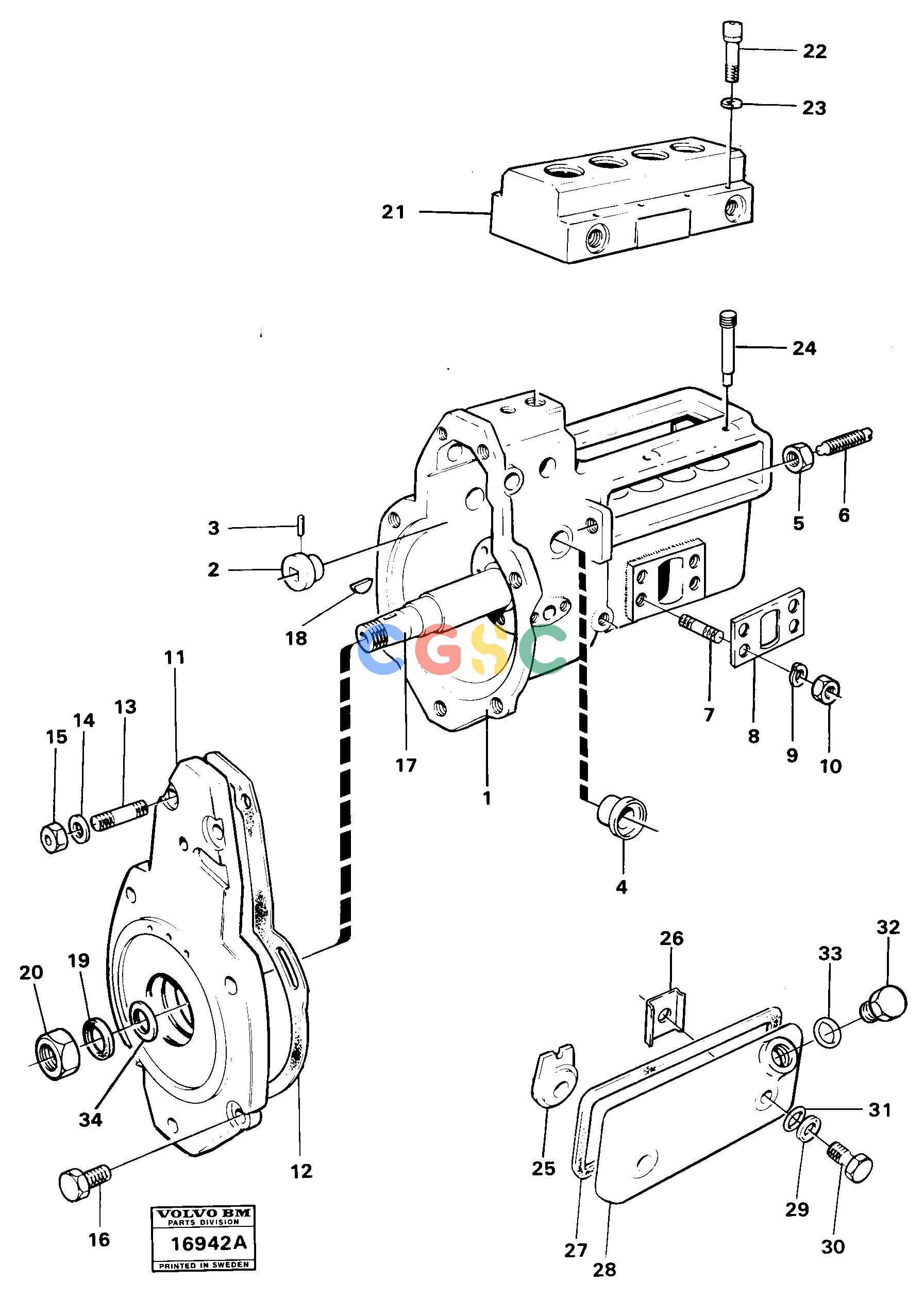

沃尔沃零件查询4300 Fuel injection pump cmpl Mo 52512-598824300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
|
Shafts
|
|
| 1. |
|
[0001] |
Pump body
|
|
| 2. |
VOE7480103
|
[0001] |
Bushing
|
|
| 3. |
VOE7480104
|
[0001] |
Pin
|
|
| 4. |
VOE6648666
|
[0001] |
Plug
|
|
| |
VOE4881022
|
[0001] |
Injection pump
|
|
| |
VOE6212089
|
[0002] |
Bushing
|
|
| 5. |
VOE13955781
|
[0002] |
Nut
|
|
| 6. |
VOE6212090
|
[0002] |
Screw
|
|
| 7. |
VOE6212079
|
[0004] |
Stud
|
|
| 8. |
VOE6211726
|
[0001] |
Gasket
|
|
| 9. |
VOE13941907
|
[0004] |
Washer
|
|
| 10. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 11. |
|
[0001] |
End plate
|
|
| 12. |
VOE7350514
|
[0001] |
Gasket
|
|
| |
VOE6211723
|
[0001] |
Feed pump
|
|
| 13. |
VOE6212091
|
[0002] |
Stud
|
|
| 14. |
VOE13941906
|
[0002] |
Washer
|
|
| 15. |
VOE13955781
|
[0002] |
Nut
|
|
| 16. |
VOE13955272
|
[0002] |
Screw
|
|
| 17. |
|
[0001] |
Camshaft
|
|
| 18. |
VOE6212075
|
[0001] |
Key
|
|
| 19. |
VOE941911
|
[0001] |
Spring washer
|
|
| 20. |
VOE955804
|
[0001] |
Hexagon nut
|
|
| 21. |
|
[0001] |
Housing
|
|
| 22. |
VOE13956545
|
[0008] |
Screw
|
|
| |
|
|
Pump part
|
|
| 23. |
VOE7350459
|
[0008] |
Washer
|
|
| 24. |
VOE6212067
|
[0002] |
Screw
|
|
| 25. |
VOE6212083
|
[0002] |
Plate
|
|
| 26. |
VOE6212084
|
[0002] |
Plate
|
|
| 27. |
VOE7480118
|
[0001] |
Sealing ring
|
|
| 28. |
VOE6212086
|
[0001] |
Cap
|
|
| 29. |
VOE957171
|
[0002] |
Gasket
|
|
| 30. |
VOE6212085
|
[0002] |
Screw
|
|
| 31. |
VOE7350525
|
[0002] |
Sealing ring
|
|
| 32. |
VOE6212087
|
[0001] |
Plug
|
|
| |
|
|
Governor part
|
|
| 33. |
VOE6212088
|
[0001] |
O-ring
|
|
| 34. |
VOE955899
|
[0001] |
Plain washer
|
|
