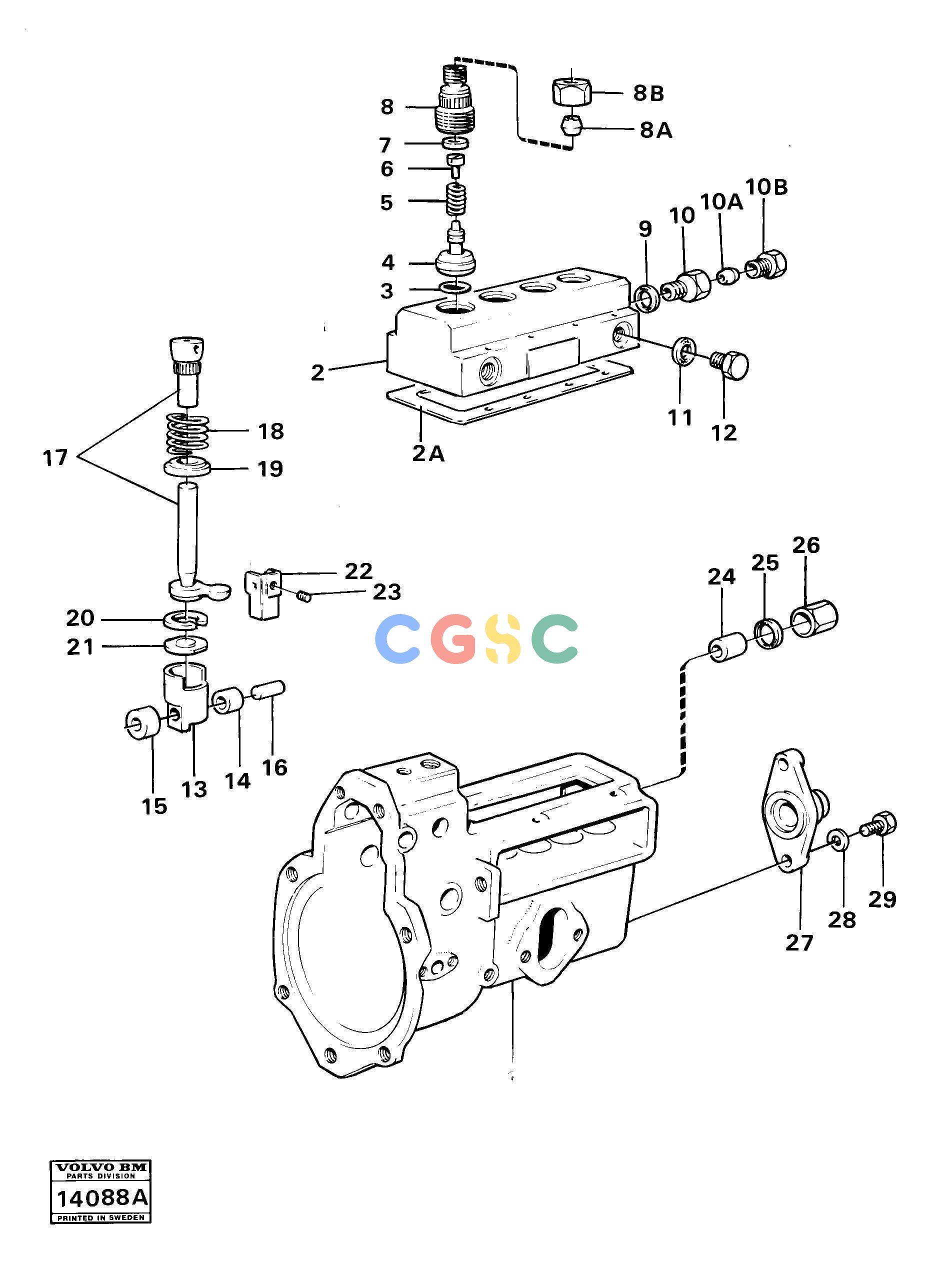

沃尔沃零件查询4300 Fuel injection pump pump part4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6648675
|
[4] |
Spring
|
|
| 29. |
VOE956553
|
[0002] |
Screw
|
|
| 6. |
|
[4] |
Peg
|
|
| |
VOE480191
|
[4] |
Plug
|
FÖR/FOR 4880612
|
| 7. |
VOE6648674
|
[4] |
Gasket
|
|
| 8. |
VOE7363565
|
[4] |
Retainer
|
|
| 8A. |
VOE7350520
|
[4] |
Ferrule
|
|
| 8B. |
VOE7350519
|
[4] |
Nut
|
|
| 9. |
VOE13947621
|
[1] |
Plane gasket
|
|
| |
VOE13947621
|
[1] |
Plane gasket
|
FÖR/FOR 4880612
|
| 1. |
|
[0001] |
Pump body
|
|
| 10. |
VOE7363576
|
[1] |
Nipple
|
|
| 10A. |
VOE7350522
|
[1] |
Ferrule
|
|
| 10B. |
VOE4780356
|
[1] |
Nipple
|
|
| 11. |
VOE947620
|
[2] |
Gasket
|
|
| 12. |
VOE7480177
|
[2] |
Screw
|
|
| |
VOE6648961
|
[0004] |
Tappet
|
|
| 13. |
|
[0004] |
Lifter
|
|
| 14. |
VOE7480164
|
[0004] |
Bushing
|
|
| 15. |
VOE7350512
|
[0004] |
Roller
|
|
| 16. |
VOE7480165
|
[0004] |
Pin
|
|
| 17. |
VOE6212394
|
[0004] |
Pump element
|
|
| 18. |
VOE7480181
|
[0004] |
Spring
|
|
| 2. |
VOE7363555
|
[0001] |
Cap
|
|
| 19. |
VOE7480182
|
[REQ] |
Spring disc
|
THICK = 0,6
|
| |
VOE7480183
|
[REQ] |
Spring disc
|
THICK = 0,9
|
| |
VOE7480184
|
[REQ] |
Spring disc
|
THICK = 1,2
|
| |
VOE6639816
|
[REQ] |
Spring disc
|
THICK = 1,4
|
| |
VOE7480185
|
[REQ] |
Spring disc
|
THICK = 1,5
|
| 2A. |
VOE6643624
|
[0001] |
Gasket
|
|
| |
VOE6639817
|
[REQ] |
Spring disc
|
THICK = 1,6
|
| |
VOE6639818
|
[REQ] |
Spring disc
|
THICK = 1,7
|
| |
VOE7480186
|
[REQ] |
Spring disc
|
THICK = 1,8
|
| |
VOE6639819
|
[REQ] |
Spring disc
|
THICK = 1,9
|
| |
VOE6639820
|
[REQ] |
Spring disc
|
THICK = 2,0
|
| 3. |
VOE7363564
|
[0004] |
O-ring
|
|
| |
VOE7480187
|
[REQ] |
Spring disc
|
THICK = 2,1
|
| 20. |
VOE7480172
|
[0004] |
Lock ring
|
|
| 21. |
VOE7363566
|
[REQ] |
Shim
|
THICK = 3,9
|
| |
VOE7363567
|
[REQ] |
Shim
|
THICK = 4,0
|
| |
VOE7363568
|
[REQ] |
Shim
|
THICK = 4,1
|
| |
VOE7363569
|
[REQ] |
Shim
|
THICK = 4,2
|
| |
VOE7363570
|
[REQ] |
Shim
|
THICK = 4,3
|
| |
VOE7480167
|
[REQ] |
Spacer washer
|
THICK = 4,4
|
| |
VOE7480168
|
[REQ] |
Spacer washer
|
THICK = 4,5
|
| |
VOE7480169
|
[REQ] |
Spacer washer
|
THICK = 4,6
|
| 4. |
VOE6211471
|
[4] |
Delivery valve
|
|
| |
VOE7480170
|
[REQ] |
Spacer washer
|
THICK = 4,7
|
| |
VOE7480171
|
[REQ] |
Spacer washer
|
THICK = 4,8
|
| 22. |
VOE6646680
|
[0004] |
Fork
|
|
| 23. |
VOE7480175
|
[0004] |
Screw
|
|
| 24. |
VOE6648664
|
[0001] |
Socket
|
|
| 25. |
VOE6648665
|
[0001] |
Gasket
|
|
| 26. |
VOE6648663
|
[0001] |
Casing
|
|
| 27. |
VOE6210962
|
[0001] |
Connector
|
|
| |
VOE6648672
|
[0001] |
Gasket
|
|
| 28. |
VOE13941906
|
[0002] |
Washer
|
|
| |
VOE7350459
|
[0002] |
Washer
|
FÖR/FOR 4880612
|
