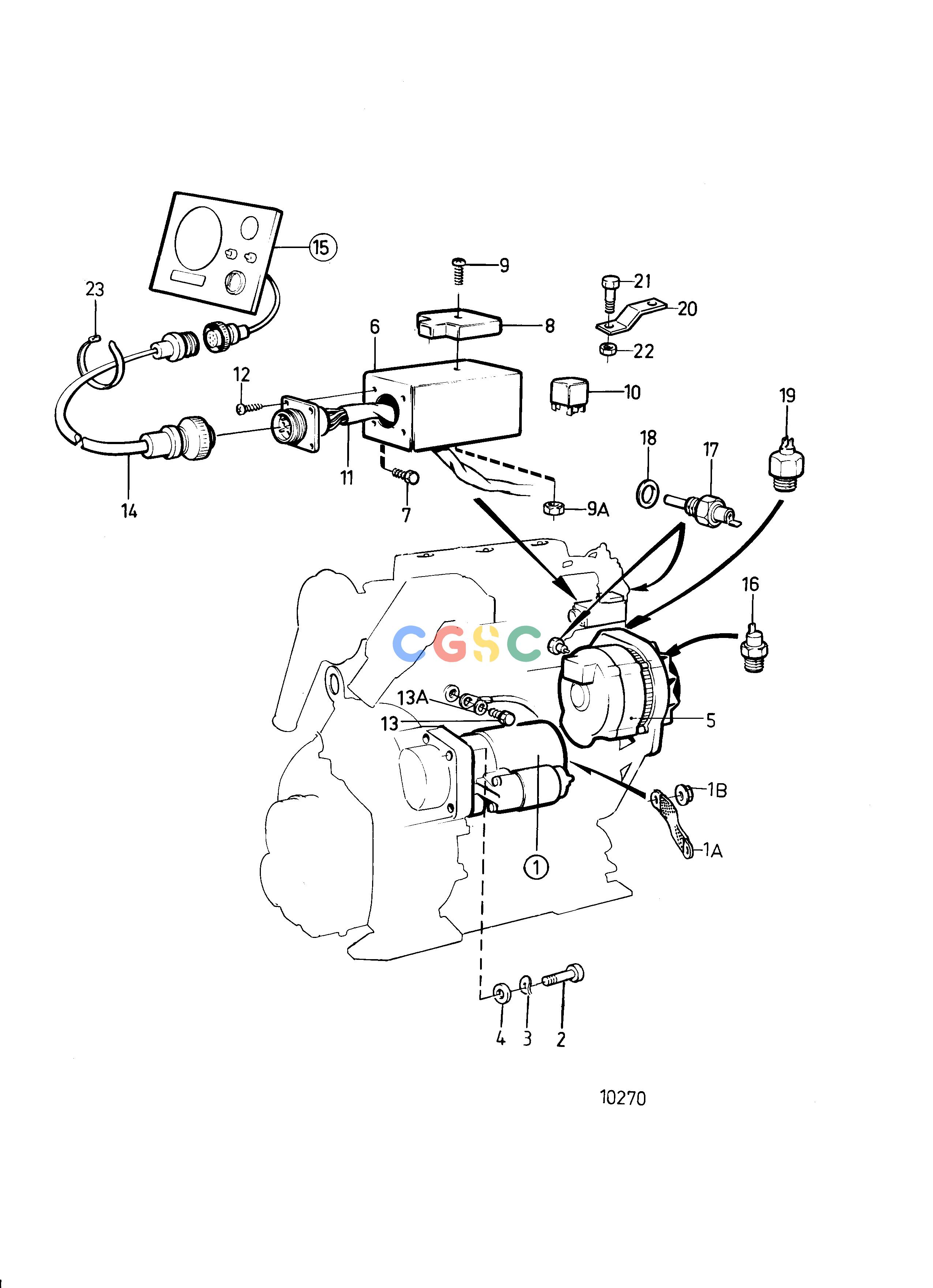

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical System and Instruments 1-pole Electrical System: 868031EPC Volvo Penta Par
广数供应链运营团队, 14 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829527
|
[1] |
Starter motor
|
Replaced by starter motor 859252,ground cable 968048 and plate 945408, Also available as an exchange
|
| 1. |
859252
|
[1] |
Starter motor
|
Also available as an exchange part., 2-pole
|
| 1A. |
968048
|
[1] |
Chassis ground cable
|
For 859252
|
| 1B. |
968862
|
[1] |
Nut
|
For 859252 (945408)
|
| 2. |
959239
|
[3] |
Hex. socket screw
|
|
| 3. |
941908
|
[3] |
Spring washer
|
|
| 4. |
942551
|
[3] |
Washer
|
|
| 5. |
7726000_226
|
|
alternator and installation comps
|
|
| 5. |
|
|
|
|
| 6. |
840672
|
[1] |
Attaching plate
|
|
| 7. |
941793
|
[1] |
Hex. socket screw
|
|
| 8. |
873566
|
[1] |
Fuse box
|
|
| 9. |
955247
|
[1] |
Hexagon screw
|
|
| 9A. |
955780
|
[1] |
Hexagon nut
|
|
| 10. |
860339
|
[1] |
Relay
|
(846762) 12V/50A
|
| 11. |
858683
|
[1] |
Cable block
|
For W
|
| 12. |
955119
|
[4] |
Cross recessed screw
|
|
| 13. |
970945
|
[1] |
Hexagon screw
|
(955315)
|
| 13A. |
940109
|
[1] |
Toothed washer
|
|
| 14. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 14. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 14. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 15. |
858127
|
[1] |
Instrument panel
|
Repl by 859058
|
| 16. |
1324750
|
[1] |
Oil pressure sensor
|
|
| 17. |
833927
|
[1] |
Thermo monitor
|
|
| 18. |
947624
|
[1] |
Gasket
|
|
| 19. |
1502028
|
[1] |
Tachometer sensor
|
|
| 20. |
858642
|
[1] |
Bracket
|
|
| 21. |
955271
|
[1] |
Hexagon screw
|
|
| 22. |
963105
|
[1] |
Lock nut
|
|
| 23. |
948211
|
[1] |
Cable tie
|
|
