沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemElectrical System and Instruments 1-pole Electrical SystemEPC Volvo Penta Parts catal
广数供应链运营团队, 14 02月, 2025，浏览：
768 次

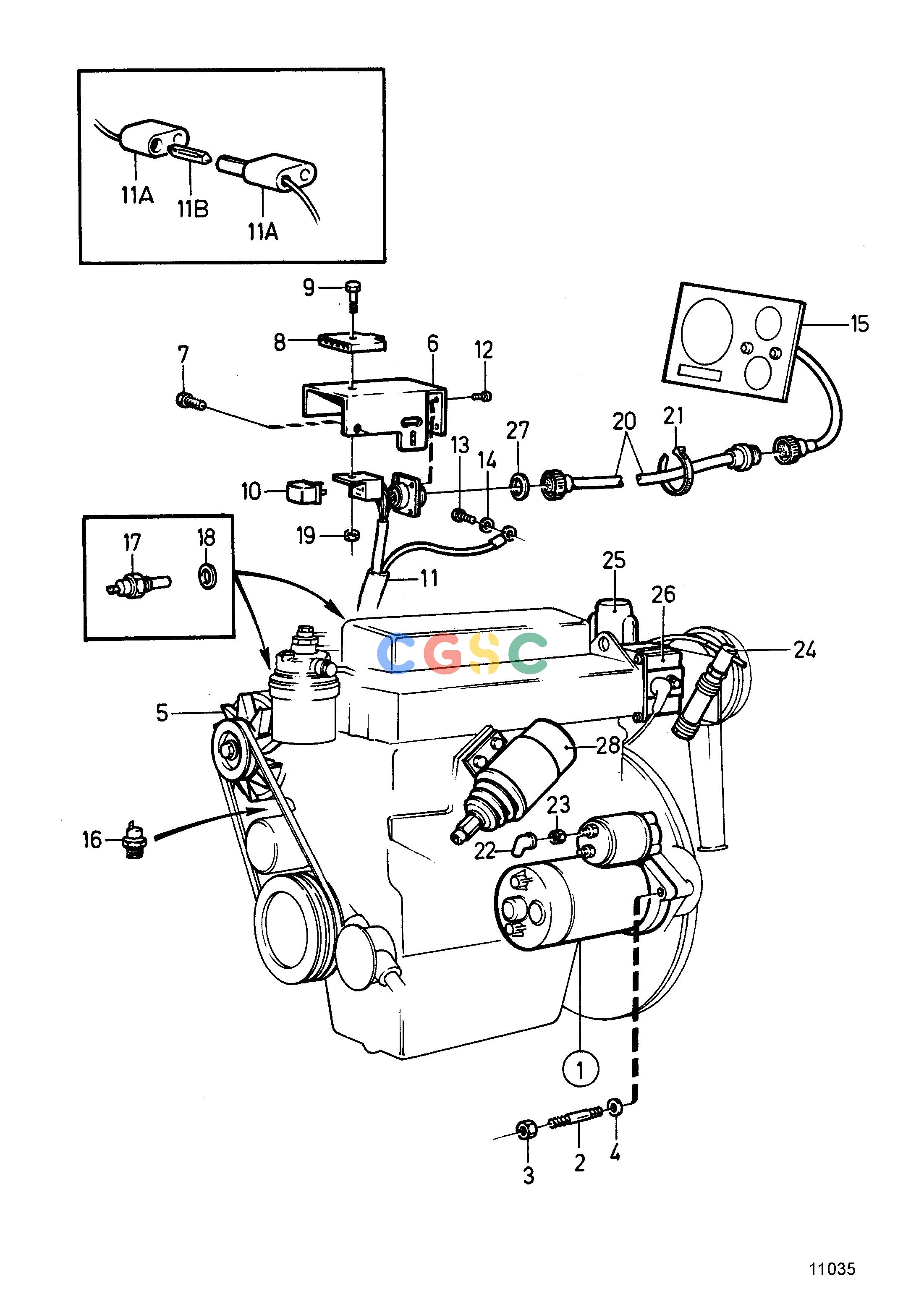

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1545418
|
[1] |
Starter motor
|
24V
|
| 2. |
953067
|
[3] |
Stud
|
|
| 3. |
955783
|
[3] |
Hexagon nut
|
|
| 4. |
941908
|
[3] |
Spring washer
|
|
| 5. |
|
|
|
24V
|
| 6. |
840672
|
[2] |
Attaching plate
|
|
| 7. |
941793
|
[4] |
Hex. socket screw
|
|
| 8. |
824823
|
[1] |
Fuse box
|
|
| 9. |
955247
|
[2] |
Hexagon screw
|
|
| 10. |
1504951
|
[2] |
Relay
|
|
| 11. |
858409
|
[1] |
Cable block
|
Repl by 859235
|
| 11. |
859235
|
[1] |
Cable block
|
SN2300030717-
|
| 11A. |
966334
|
[1] |
Fuse holder
|
|
| 11B. |
11433
|
[1] |
Fuse
|
|
| 11. |
7726000_255
|
|
cables and terminals
|
|
| 12. |
955119
|
[4] |
Cross recessed screw
|
|
| 13. |
970945
|
[1] |
Hexagon screw
|
(955315)
|
| 14. |
940109
|
[1] |
Toothed washer
|
|
| 15. |
858362
|
[1] |
Instrument panel
|
Repl by 858872
|
| 15. |
858872
|
[1] |
Instrument panel
|
|
| 16. |
1324750
|
[1] |
Oil pressure sensor
|
|
| 17. |
833927
|
[1] |
Thermo monitor
|
|
| 18. |
947624
|
[1] |
Gasket
|
|
| 19. |
955780
|
[2] |
Hexagon nut
|
|
| 20. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 20. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 20. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 21. |
948210
|
[1] |
Cable tie
|
|
| 22. |
855798
|
[1] |
Protecting sleeve
|
(855318)
|
| 23. |
855330
|
[1] |
Spacer nut
|
|
| 24. |
7726000_241
|
|
tilt switch
|
|
| 25. |
7726000_244
|
|
start element relay
|
|
| 26. |
7726000_242
|
|
start element
|
|
| 27. |
846615
|
[1] |
Sealing ring
|
|
| 28. |
|
|
|
24V
|
