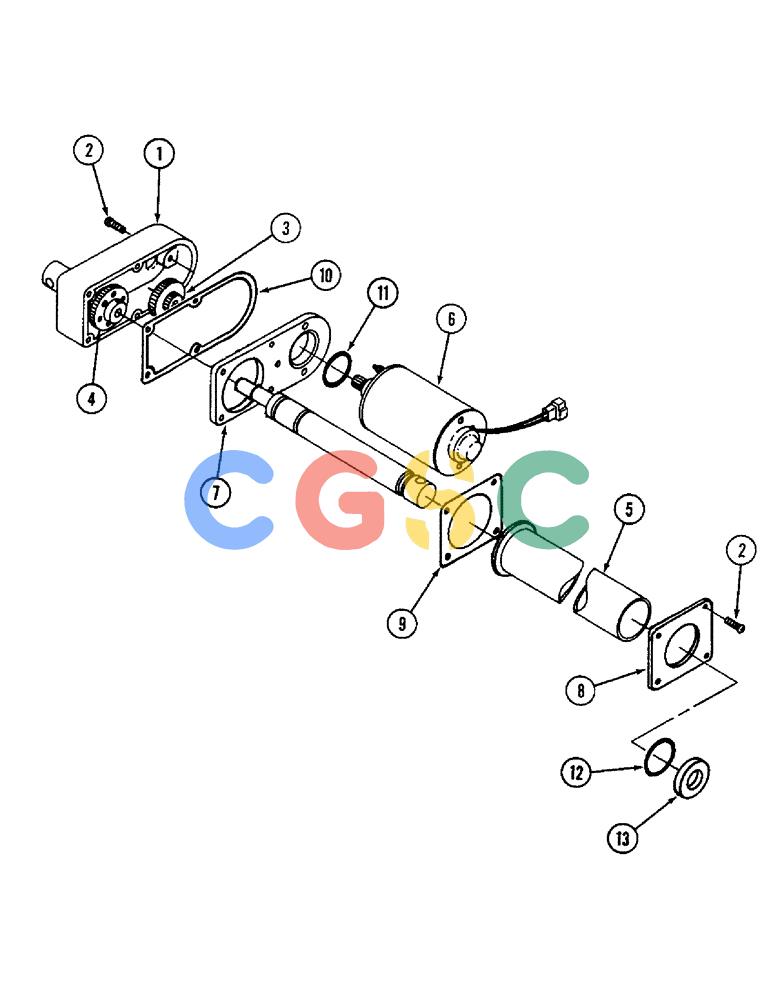

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (06) - ACTUATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
ZA105658
|
[1] |
ACTUATOR
|
IH
Superseded by part number: 700709661
|
| 1. |
1281482C1
|
[1] |
HOUSING
|
IH
- rear Superseded by part number: 700704854
|
| 2. |
1281483C1
|
[5] |
ADJUSTMENT SCREW
|
IH
|
| 3. |
1281484C1
|
[1] |
GEAR
|
IH
|
| 4. |
1281485C1
|
[1] |
CLUTCH
|
IH
|
| 5. |
1281486C1
|
[1] |
COVER
|
IH
Superseded by part number: 700709904
|
| 6. |
1281487C1
|
[1] |
KIT
|
IH
MOTOR Superseded by part number: 700704871
|
| 7. |
1281488C1
|
[1] |
HOUSING
|
IH
- front
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
COVER - tube
|
| . . |
1281489C1
|
[1] |
SEAL KIT
|
CAS
KIT - seal
|
