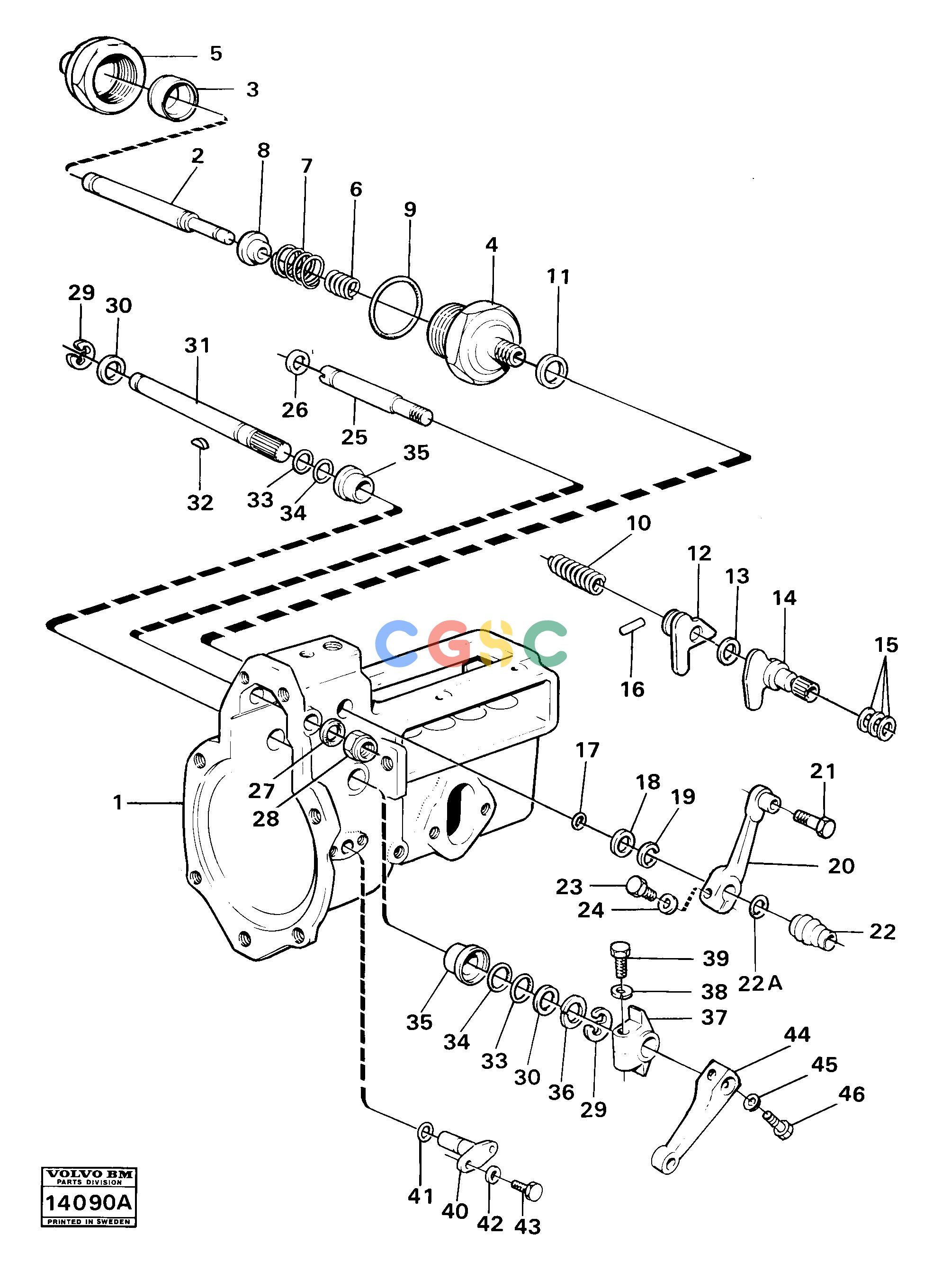

沃尔沃零件查询4300 Fuel injection pump shafts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE780558
|
[0001] |
Housing
|
|
| 5. |
VOE780557
|
[0001] |
Nut
|
|
| 6. |
VOE780562
|
[0001] |
Spring
|
|
| 7. |
VOE780560
|
[0001] |
Spring
|
|
| 8. |
VOE780555
|
[0001] |
Cap
|
|
| 1. |
|
[0001] |
Pump body
|
|
| 9. |
VOE943822
|
[0001] |
O-ring
|
|
| 10. |
VOE6643640
|
[0001] |
Spring
|
|
| 11. |
VOE957175
|
[0001] |
Gasket
|
|
| 12. |
VOE7363558
|
[0001] |
Lever
|
|
| 13. |
VOE7480156
|
[0001] |
Washer
|
|
| |
VOE6210959
|
[0001] |
Shim
|
FÖR/FOR 4880612
|
| |
VOE6210960
|
[0001] |
Sealing washer
|
FÖR/FOR 4880612
|
| 14. |
VOE7363557
|
[0001] |
Lever
|
FÖR/FOR 4786803
|
| |
VOE6210957
|
[0001] |
Shaft
|
FÖR/FOR 4880090,4880612
|
| |
VOE6210961
|
[0001] |
Bushing
|
FÖR/FOR 4880090,4880612
|
| |
VOE7480142
|
[0001] |
Sealing ring
|
FÖR/FOR 4880090,4880612
|
| 15. |
VOE7350451
|
[0003] |
Washer
|
|
| 16. |
VOE7480154
|
[0001] |
Pin
|
|
| 17. |
VOE7350508
|
[0001] |
O-ring
|
|
| 18. |
VOE7350453
|
[1] |
Washer
|
|
| |
VOE6648677
|
[0001] |
Cold start device
|
FÖR/FOR 4786803
|
| 19. |
VOE7480149
|
[1] |
Lock ring
|
FÖR/FOR 4786803
|
| |
VOE6210958
|
[1] |
Spring ring
|
FÖR/FOR 4880090,4880612
|
| 20. |
VOE6643592
|
[1] |
Lever
|
|
| 21. |
VOE6643595
|
[1] |
Screw
|
|
| 22. |
VOE780576
|
[1] |
Plug
|
|
| 22A. |
VOE925050
|
[1] |
O-ring
|
|
| 23. |
VOE956079
|
[1] |
Cross recessed screw
|
|
| |
VOE6210964
|
[0001] |
Cold start device
|
FÖR/FOR 4880090,4880612
|
| 24. |
VOE7350459
|
[1] |
Washer
|
|
| 25. |
VOE7350526
|
[1] |
Retainer
|
|
| 26. |
VOE7350525
|
[1] |
Sealing ring
|
|
| 27. |
VOE7350550
|
[1] |
Gasket
|
|
| 28. |
VOE950372
|
[1] |
Lock nut
|
|
| 2. |
VOE6648678
|
[0001] |
Shaft
|
FÖR/FOR 4786803
|
| 29. |
VOE7480145
|
[2] |
Retaining ring
|
|
| 30. |
VOE7350453
|
[2] |
Washer
|
|
| 31. |
VOE7350455
|
[1] |
Shaft
|
|
| 32. |
VOE7350549
|
[1] |
Key
|
|
| 33. |
VOE7480142
|
[2] |
Sealing ring
|
|
| |
VOE6210965
|
[0001] |
Shaft
|
FÖR/FOR 4880090,4880612
|
| 34. |
VOE7350508
|
[2] |
O-ring
|
|
| 35. |
|
[2] |
Bushing
|
|
| 36. |
VOE7480144
|
[1] |
Washer
|
|
| 37. |
VOE6648669
|
[1] |
Stop lug
|
|
| 38. |
VOE7350459
|
[1] |
Washer
|
|
| 3. |
VOE780556
|
[0001] |
Piston
|
|
| 39. |
VOE6648671
|
[1] |
Screw
|
|
| 40. |
VOE6643596
|
[1] |
Shaft
|
|
| |
|
[1] |
Gasket
|
|
| |
VOE6210963
|
[1] |
Gasket
|
FÖR/FOR 4880612
|
| 41. |
VOE7350508
|
[1] |
O-ring
|
|
| 42. |
VOE7350459
|
[0002] |
Washer
|
|
| 43. |
VOE950021
|
[0002] |
Cross recessed screw
|
|
| |
VOE956540
|
[0002] |
Screw
|
FÖR/FOR 4880612
|
| 44. |
VOE4780290
|
[0001] |
Arm
|
|
| 45. |
VOE941905
|
[0001] |
Spring washer
|
|
| 46. |
VOE7191038
|
[0001] |
Screw
|
|
