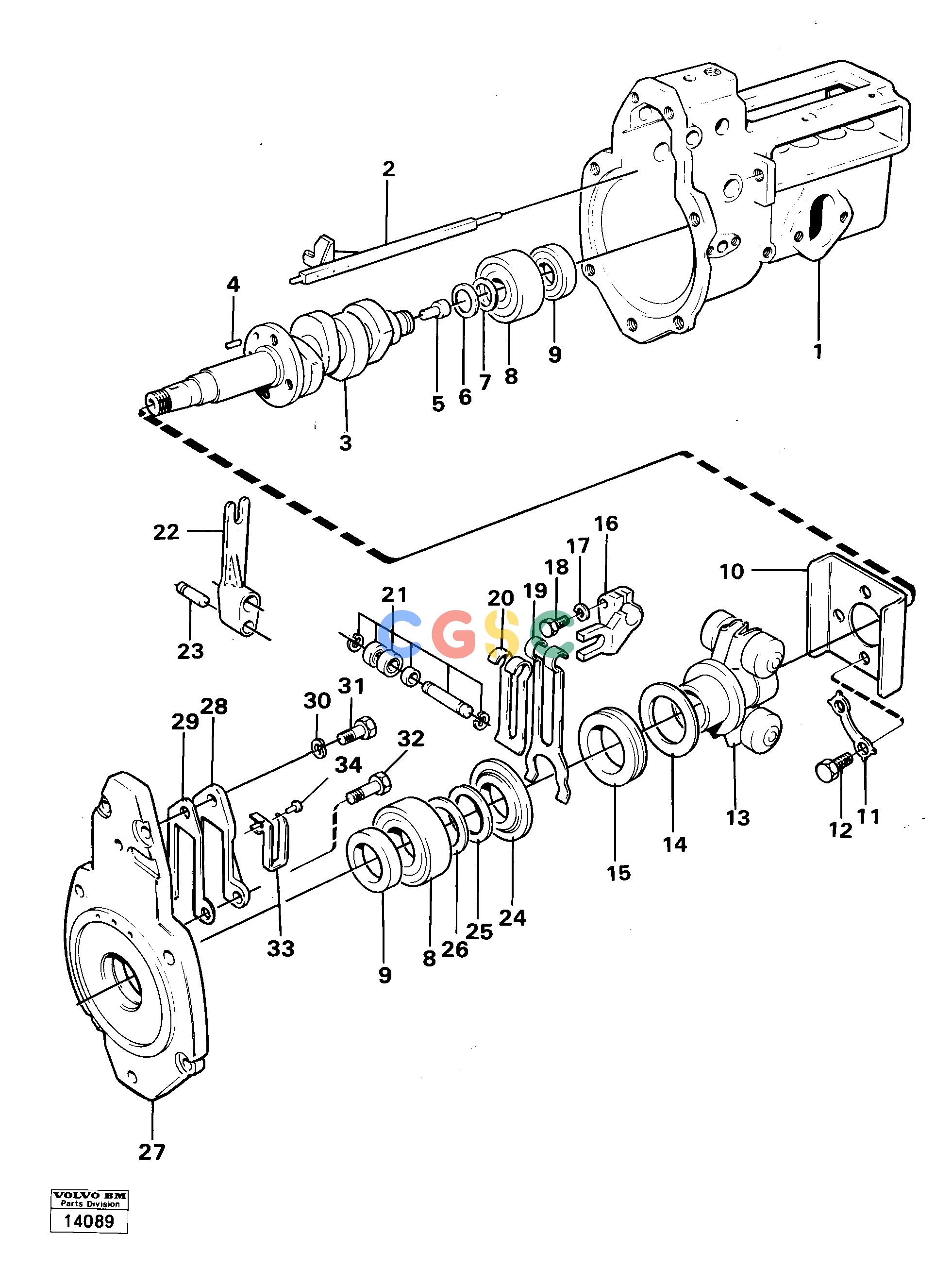

沃尔沃零件查询4300 Fuel injection pump governor part4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
349 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6645226
|
[0001] |
Pin
|
|
| 6. |
VOE7480127
|
[REQ] |
Spacer
|
THICK=0,2
|
| 7. |
VOE7480126
|
[REQ] |
Spacer
|
THICK=0,1
|
| 8. |
VOE6646678
|
[0002] |
Roller bearing
|
|
| 9. |
VOE7019946
|
[0002] |
Ring
|
|
| 1. |
|
[0001] |
Pump body
|
|
| 10. |
VOE7480131
|
[0001] |
Retainer
|
|
| 11. |
VOE7480132
|
[0002] |
Lock washer
|
|
| 12. |
VOE7350446
|
[0004] |
Screw
|
|
| 13. |
VOE7480133
|
[0001] |
Weight
|
|
| 14. |
VOE7480134
|
[0001] |
Thrust Bearing
|
|
| 15. |
VOE7480135
|
[0001] |
Socket
|
|
| 16. |
VOE7363577
|
[0001] |
Lever
|
|
| 17. |
VOE941905
|
[0002] |
Spring washer
|
|
| 18. |
VOE956542
|
[0001] |
Screw
|
|
| 19. |
VOE7350456
|
[0001] |
Spring
|
|
| 2. |
VOE7363556
|
[0001] |
Control Rod
|
|
| 20. |
VOE7356532
|
[0001] |
Spring
|
|
| 21. |
VOE6646564
|
[0001] |
Roller
|
|
| 22. |
VOE6643593
|
[0001] |
Lever
|
|
| |
VOE6643626
|
[0001] |
Spring
|
FÖR/FOR 4880612
|
| |
VOE6643627
|
[0001] |
Snap ring
|
FÖR/FOR 4880612
|
| 23. |
VOE6643597
|
[0001] |
Pin
|
|
| |
VOE6648662
|
[0001] |
Bushing
|
FÖR/FOR 4880090
|
| 24. |
VOE7350444
|
[0001] |
Washer
|
|
| 25. |
VOE7480127
|
[REQ] |
Spacer
|
THICK=0,2
|
| 26. |
VOE7480126
|
[REQ] |
Spacer
|
THICK=0,1
|
| |
|
[0001] |
End plate
|
|
| 3. |
VOE7363561
|
[0001] |
Camshaft
|
|
| 27. |
VOE7363571
|
[1] |
End plate
|
|
| 28. |
VOE7356538
|
[1] |
Spacer
|
|
| 29. |
VOE830716
|
[REQ] |
Shim
|
THICK=0,15
|
| |
VOE830717
|
[REQ] |
Shim
|
THICK=0,32
|
| |
VOE830715
|
[REQ] |
Shim
|
THICK=0,61
|
| 30. |
VOE941905
|
[3] |
Spring washer
|
|
| 31. |
|
[2] |
Screw
|
|
| 32. |
VOE956540
|
[1] |
Screw
|
|
| 33. |
VOE7363572
|
[1] |
Spring
|
|
| 34. |
VOE950883
|
[1] |
Drive screw
|
|
| 4. |
VOE918085
|
[0001] |
Pin
|
|
