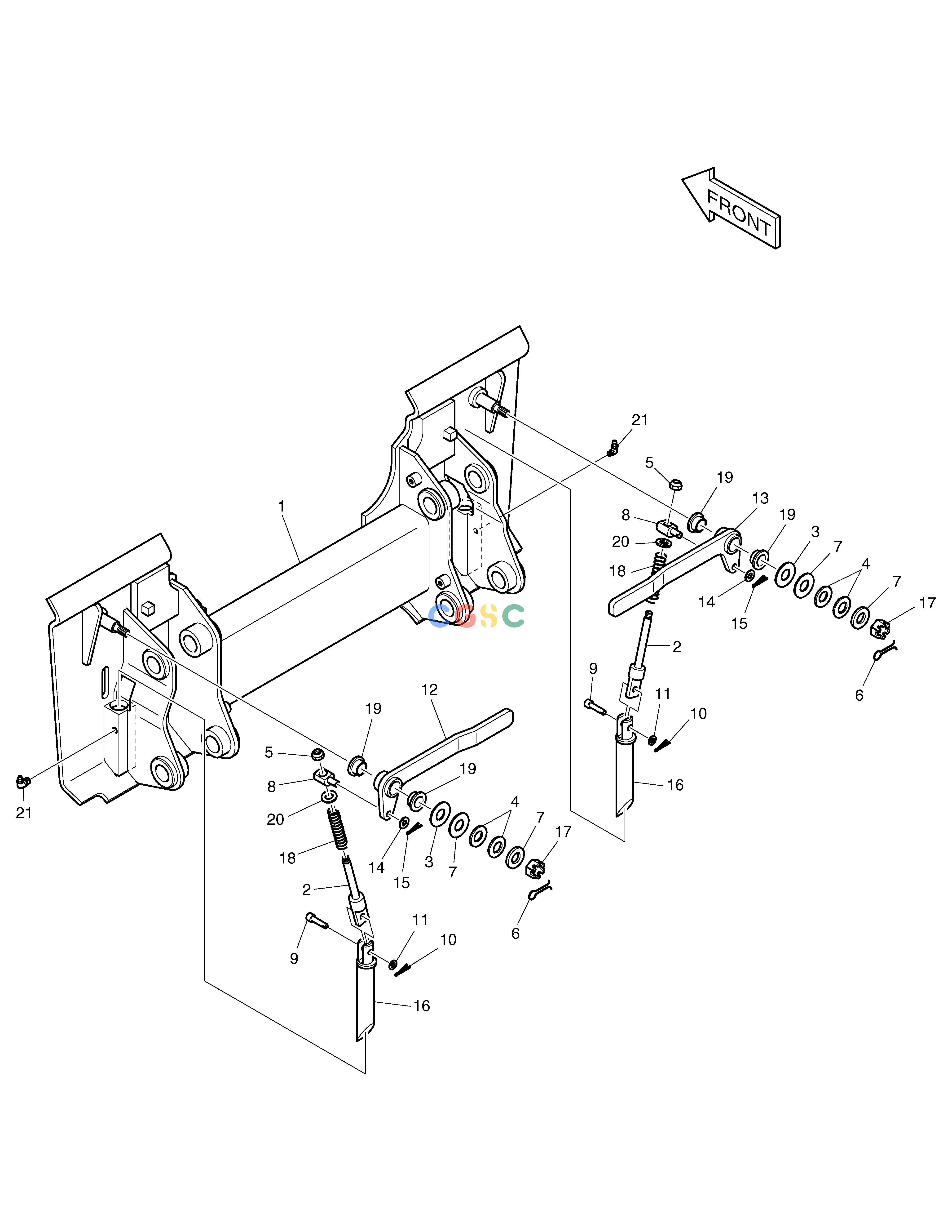

斗山零件查询QUICK TACH 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021735
|
[-] |
QUICK TACH
|
|
| 1. |
K1021736
|
[1] |
QUICK TACH
|
|
| 10. |
S5735241
|
[2] |
PIN;SPLIT
|
|
| 11. |
K1023146
|
[2] |
WASHER;HARDENED
|
|
| 12. |
K1021751
|
[4] |
HANDLE (L.H)
|
|
| 13. |
K1021753
|
[4] |
HANDLE (R.H)
|
|
| 14. |
S5000613
|
[2] |
WASHER
|
|
| 15. |
S5735441
|
[2] |
PIN;SPLIT
|
|
| 16. |
K1020332
|
[2] |
BLOCK;WEDGE
|
|
| 17. |
S4330743
|
[2] |
NUT;CASTLE
|
|
| 18. |
K1020333
|
[2] |
SPRING
|
|
| 19. |
K1022262
|
[4] |
BUSHING
|
|
| 2. |
K1021748
|
[2] |
ROD
|
|
| 20. |
S5000713
|
[2] |
WASHER;PLAIN
|
|
| 21. |
S6710151
|
[2] |
NIPPLE;GREASE
|
|
| 3. |
K1023140
|
[2] |
WASHER
|
|
| 4. |
K1023131
|
[4] |
WASHER;SPRING
|
|
| 5. |
K1023114
|
[2] |
NUT;LOCK
|
|
| 6. |
S5735491
|
[2] |
PIN;SPLIT
|
|
| 7. |
DS0401100
|
[4] |
WASHER;HARDENED
|
|
| 8. |
K1020331
|
[2] |
PIN
|
|
| 9. |
K1020334
|
[2] |
PIN;GUIDE
|
|
