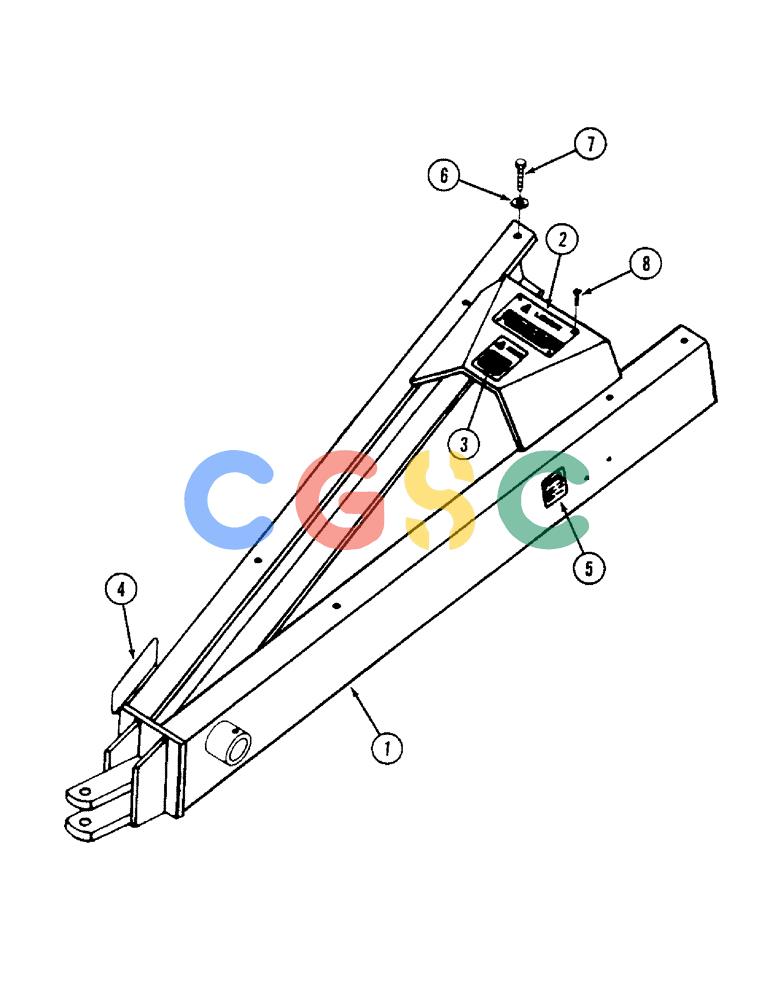

凯斯零件查询(3450) - CASE IH ROUND TIE BALER (1/83-12/89) (22) - HITCH, P.I.N. 001281 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZA104550
|
[1] |
TRAILER HITCH
|
CAS
HITCH ASSEMBLY
|
| 2. |
96330C1
|
[1] |
PRODUCT GRAPHIC
|
IH
DECAL - caution
|
| 3. |
96332C1
|
[1] |
PRODUCT GRAPHIC
|
IH
DECAL - warning
|
| 4. |
96319C1
|
[1] |
DECAL
|
IH
- caution
|
| 5. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
DECAL - important (Order kit 1265869C93)
|
| 6. |
28425R1
|
[1] |
WASHER
|
IH
- flat, 21/32 x 1-1/2 x 3/16 inch (16 x 38 x 4 mm) Superseded by part number: 86624156
|
| 7. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
- hex, 5/8 NC x 1-1/2 inch
|
| 8. |
436525C1
|
[4] |
RIVET,Pop, 1/4" x 1/2"
|
IH
- mandrel, 6.3 x 12.7 mm
|
