约翰迪尔零件查询622 - AMT CRANKCASE/CYLINDER AND HEAD CARTER/CYLINDRE ET CULASSE NOCKENWELLE/ZYLINDER UND ZYLINDERKOPF CARTER/EPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 385 次

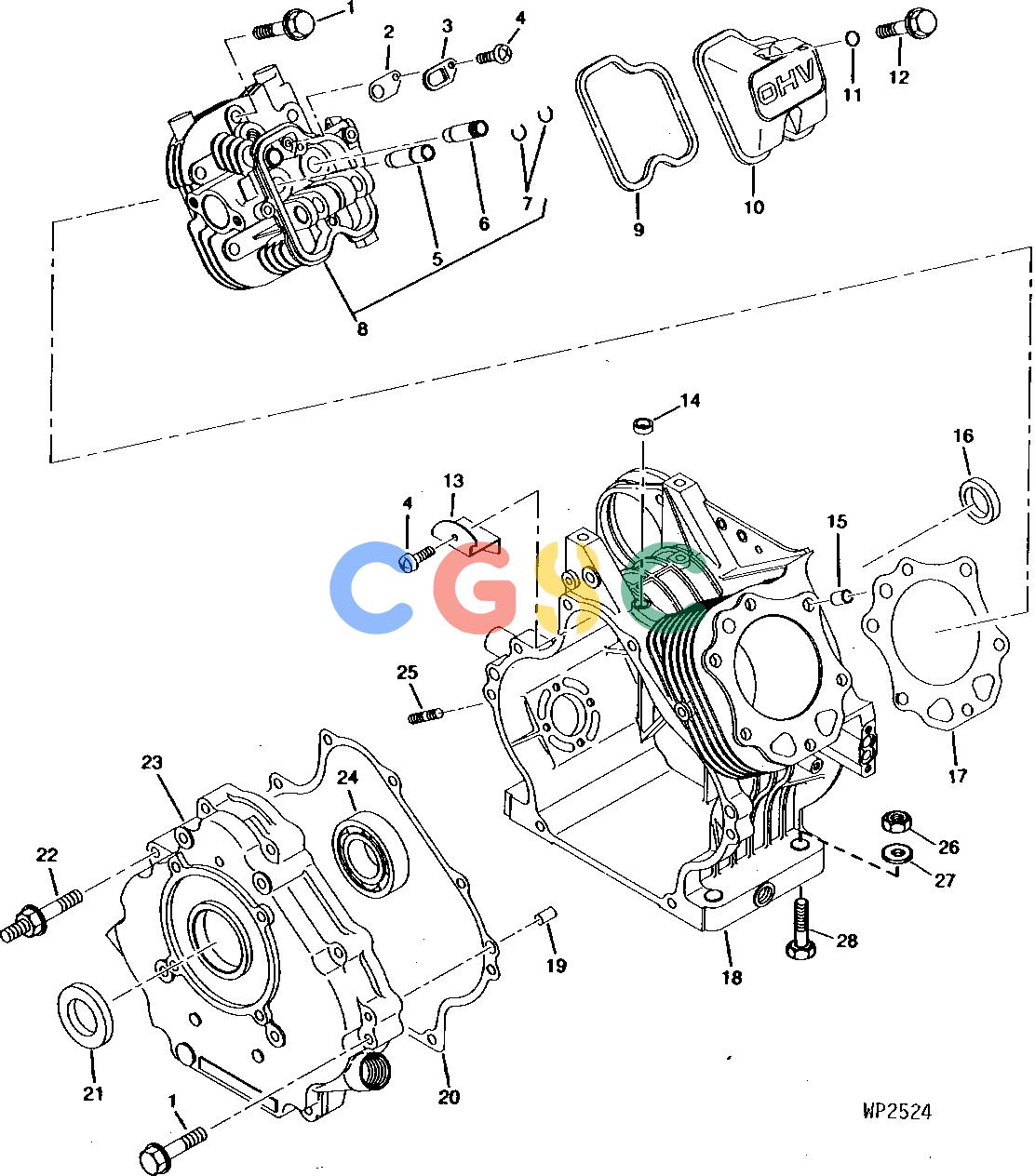

Pos.	Part No	Qty	Parts name	Comments
1.	19M8318	[10]	Screw	M8 X 45 (HS, HEAD MARKED 10.9)
2.	M73817	[1]	Valve
3.	W40494	[1]	Plate
4.	M95848	[2]	Screw	(SUB FOR PT12100)
5.	W40420	[1]	Guide
6.	M96547	[1]	Guide	(SUB FOR M70194)
7.	M70010	[2]	Snap Ring
8.	AW26831	[1]	Cylinder Head
9.	W40491	[1]	Gasket	(A)
10.	W40493	[1]	Case
11.	W40499	[2]	O-Ring
12.	19M8290	[2]	Screw	M6 X 35 (HS, HEAD MARKED 10.9) (SUB FOR W40500)
13.	W40495	[1]	ISOLATOR
14.	M88987	[1]	SEAL
15.	M70227	[2]	Pin
16.	M97289	[1]	SEAL	(A) (SUB FOR M70234)
17.	M131989	[1]	Gasket	(A) (SUB FOR W40490 OR M119138)
18.	M119141	[1]	CRANKCASE	(SUB FOR AW26847)
19.	M74252	[2]	Pin
20.	M119139	[1]	Gasket	(A) (SUB FOR W40492 OR M97283)
21.	W40498	[1]	SEAL	(A) (SUB PT18249)
22.	M127939	[1]	Stud	(SUB FOR W40551 OR M119348)
23.	W40496	[1]	Cover	(INCLUDES GOVERNOR GEAR SHAFT)
24.	W40497	[1]	BALL BEARING
25.	M88447	[4]	Stud
26.	14M7166	[4]	LOCK NUT	M8
27.	24M7055	[4]	Washer	8.400 X 16 X 1.600 MM
28.	03M7188	[4]	Bolt	M8 X 40
...	AM124808	[1]	Gasket Kit	(SUB FOR AW26869 OR AM109305)
...	MIA10305	[1]	GASOLINE ENGINE	(B) (C) (D) (SUB FOR AW26868, AM119622, AW26681 OR AM108530)
