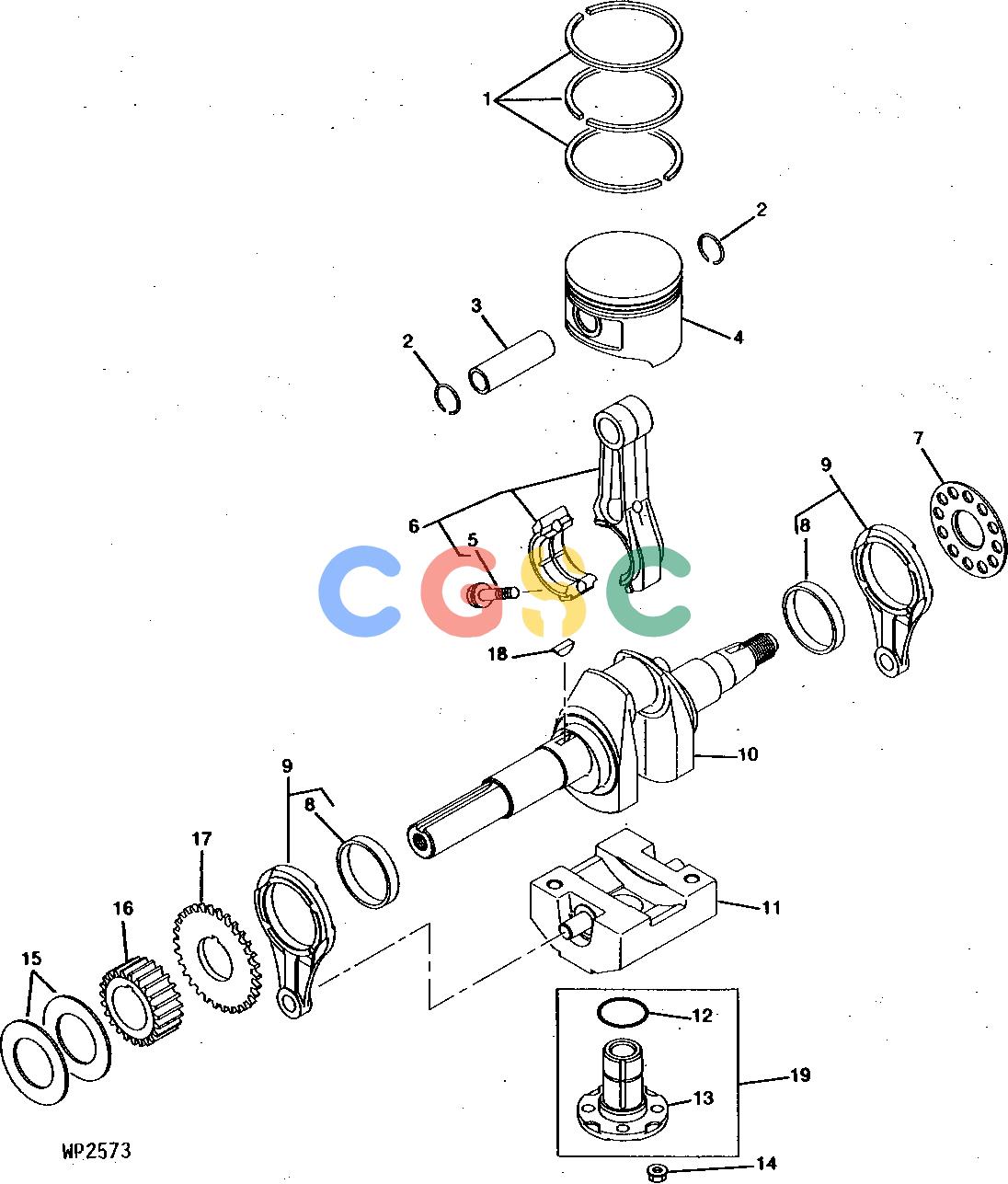

Pos.	Part No	Qty	Parts name	Comments
1.	AM102610	[1]	Piston Ring Kit
1.	AM102611	[AR]	Piston Ring	O.D.=+0.25 MM (.010") (NO LONGER AVAILABLE)
1.	AM102612	[AR]	Piston Ring	O.D.=+0.50 MM (.020")
1.	AM102613	[AR]	Piston Ring	O.D.=+0.75 MM (.030") (NO LONGER AVAILABLE)
2.	M70220	[2]	WIRE
3.	M70219	[1]	Piston Pin
4.	M119153	[1]	Piston	(SUB FOR W40422)
4.	W40560	[AR]	Piston	O.D.=+0.25 MM (.010") (NO LONGER AVAILABLE)
4.	M119174	[AR]	Piston	O.D.=+0.50 MM (.020") (SUB FOR W40553)
4.	W40552	[AR]	Piston	O.D.=+0.75 MM (.030") (NO LONGER AVAILABLE)
5.	PT12040	[2]	Bolt
6.	AW26834	[1]	Connecting Rod
6.	AW26861	[AR]	Connecting Rod	I.D.=-0.50 MM (.020")
7.	M70226	[1]	Spacer
8.	M70265	[2]	BEARING
9.	AM107155	[2]	Rod
10.	PT18252	[1]	Crankshaft	(SUB FOR W40554 OR ET15668)
11.	AW26833	[1]	Weight
12.	M70096	[1]	O-Ring	(A)
13.	M70095	[1]	Shaft
14.	M70097	[4]	NUT
15.	AM102616	[AR]	Shim	KIT, PACKG (9), TK=1.13 - 1.53 MM (.044 - .060")
16.	M119175	[1]	HELICAL GEAR	(SUB FOR W40423)
17.	M70222	[1]	Spur Gear
18.	M77843	[1]	Shaft Key
19.	AM109188	[1]	KIT	(SUB M70095, M70096)
...	PT18252	[1]	Crankshaft	(INCLUDES M70265, AM107155, M119175, M70222 AND M77843)
