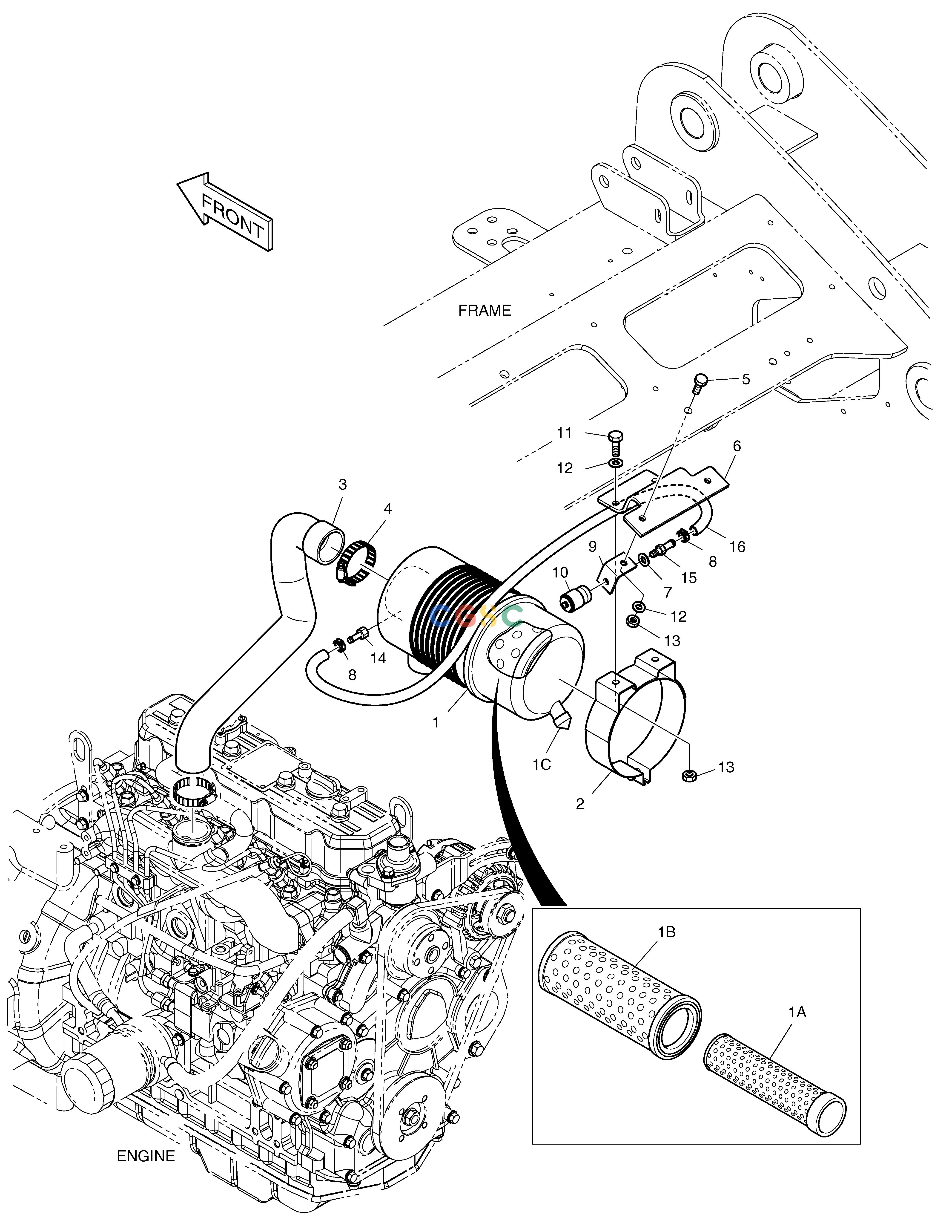

斗山零件查询AIR CLEANER 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021267
|
[-] |
AIR CLEANER ASS'Y
|
|
| 1. |
K1022412
|
[1] |
AIR CLEANER
|
|
| 10. |
K1019645
|
[1] |
INDICATOR;DUST
|
|
| 11. |
S0508863
|
[2] |
BOLT;M8X20
|
|
| 12. |
K1023146
|
[4] |
WASHER;HARDENED
|
|
| 13. |
S4016533
|
[4] |
NUT
|
|
| 14. |
K1022331
|
[1] |
REDUCER
|
|
| 15. |
K1022324
|
[1] |
ADAPTER
|
|
| 16. |
K1022322
|
[60] |
HOSE
|
|
| 1A. |
K1022414
|
[1] |
ELEMENT;INNER
|
|
| 1B. |
K1022415
|
[1] |
ELEMENT;OUTER
|
|
| 1C. |
K1019101
|
[1] |
VALVE;VACUATOR
|
|
| 2. |
K1019099
|
[1] |
CLAMP
|
|
| 3. |
K1021315
|
[1] |
HOSE;AIR CLEANER
|
|
| 4. |
S8450066
|
[2] |
CLAMP;HOSE
|
|
| 5. |
S0509063
|
[2] |
BOLT M8X1.25X25
|
|
| 6. |
K1021299
|
[1] |
BRACKET
|
|
| 7. |
K1023150
|
[1] |
WASHER;HARDENED
|
|
| 8. |
S8450006
|
[2] |
CLAMP
|
|
| 9. |
K1020764
|
[1] |
PLATE
|
|
