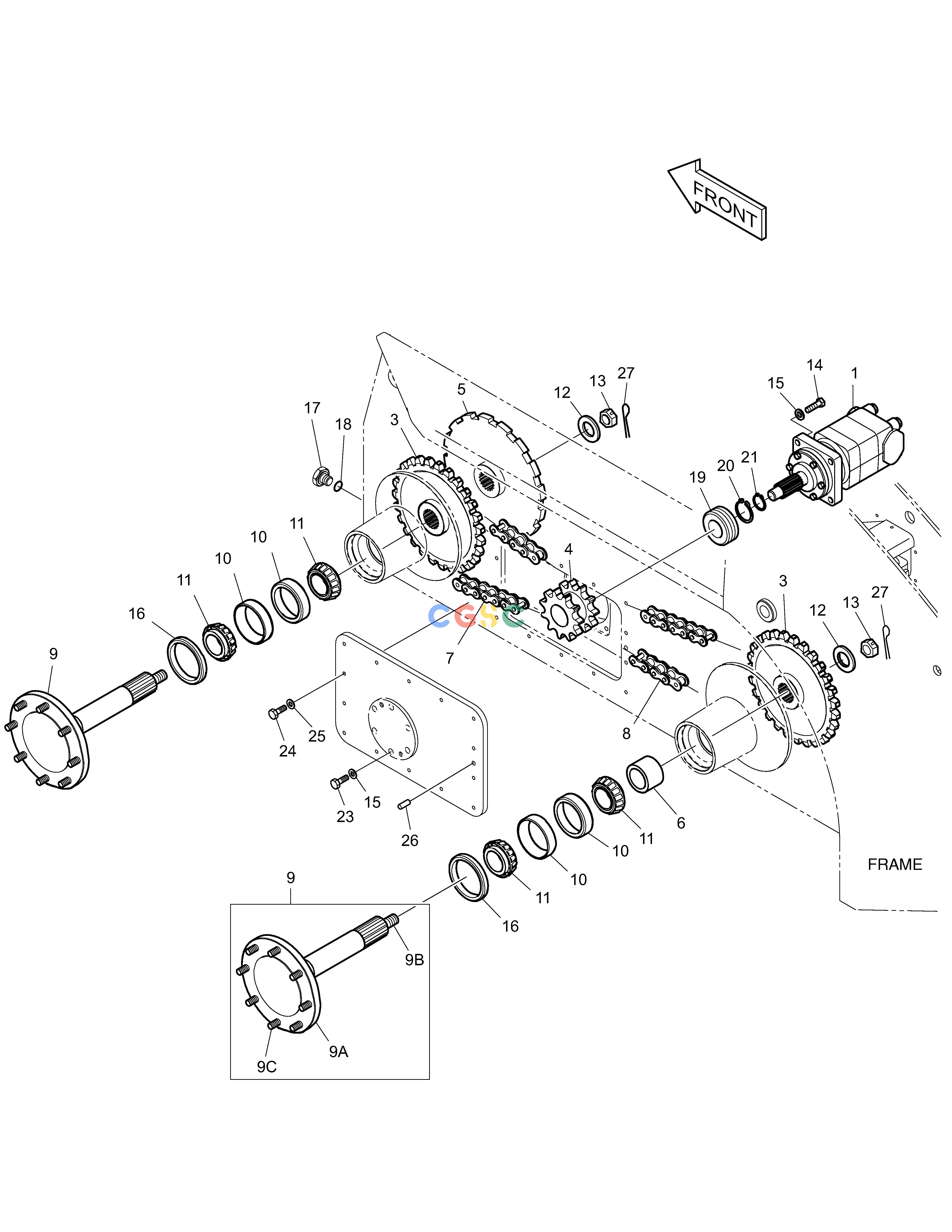

斗山零件查询DRIVE MOTOR 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
426 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1020419
|
[2] |
DRIVE MOTOR ASS'Y
|
|
| 1. |
K1022750
|
[1] |
DRIVE MOTOR
|
K1022753A
|
| 1. |
K1022753A
|
[1] |
DRIVE MOTOR
|
|
| 10. |
K1022320
|
[4] |
CUP;BEARING
|
|
| 11. |
K1022321
|
[4] |
BEARING;TAPER ROLLER
|
|
| 12. |
K1020307
|
[2] |
WASHER;HARDENED
|
|
| 13. |
S4276933
|
[2] |
NUT;CASTLE
|
|
| 14. |
K1023108
|
[4] |
BOLT
|
|
| 15. |
K1023137
|
[10] |
WASHER;HARDENED
|
|
| 16. |
K1022403
|
[2] |
SEAL;OIL
|
|
| 17. |
K1019707
|
[1] |
PLUG
|
|
| 18. |
K1023056
|
[1] |
O-RING
|
|
| 19. |
K1021025
|
[1] |
BEARING;ROLLER
|
|
| 20. |
S6510520
|
[1] |
RING;SNAP
|
|
| 21. |
S6500380
|
[1] |
RING;SNAP
|
|
| 23. |
S0515063
|
[6] |
BOLT
|
|
| 24. |
S0512063
|
[14] |
WASHER
|
|
| 25. |
K1023147
|
[14] |
WASHER;HARDENED
|
|
| 26. |
S5701190
|
[2] |
PIN;PARALLEL
|
|
| 27. |
S5735611
|
[2] |
PIN;SPLIT
|
|
| 3. |
K1022317
|
[2] |
SPROCKET;DRIVEN
|
|
| 4. |
K1020678
|
[1] |
SPROCKET;MOTOR
|
|
| 5. |
K1020305
|
[1] |
DISC
|
|
| 6. |
K1022313
|
[1] |
SPACER
|
|
| 7. |
K1020679
|
[1] |
CHAIN;FRONT
|
|
| 8. |
K1020680
|
[1] |
CHAIN;REAR
|
|
| 9. |
K1020869
|
[2] |
SHAFT;AXLE
|
K1020869A
|
| 9. |
K1020869A
|
[2] |
SHAFT;AXLE
|
|
| 9A. |
K1020306
|
[1] |
SHAFT;AXLE
|
K1020306A
|
| 9A. |
K1020306A
|
[1] |
SHAFT;AXLE
|
|
| 9B. |
K1023109
|
[1] |
BOLT;STUD
|
|
| 9C. |
K1023102
|
[8] |
BOLT;HUB
|
|
