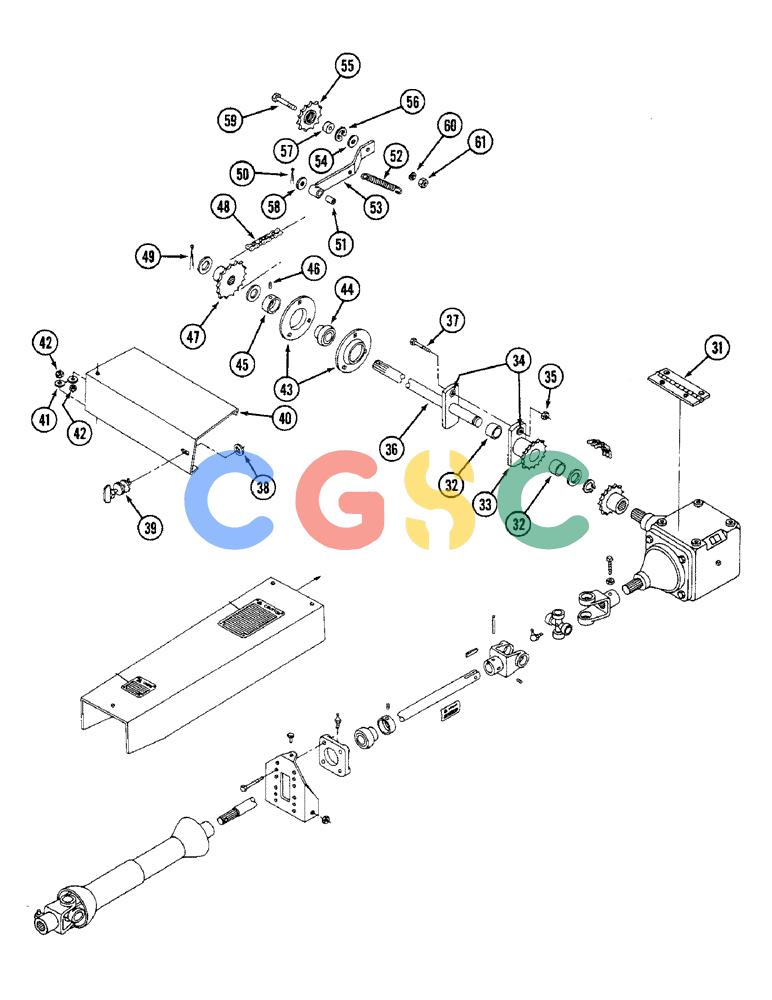

| 31. |
ZA104325
|
[1] |
HINGE
|
IH
|
| 32. |
96329C1
|
[2] |
BUSHING
|
IH
|
| 33. |
ZA105088
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 16 teeth
|
| 34. |
ZA301074
|
[2] |
BUSHING
|
IH
|
| 35. |
378531R1
|
[1] |
LOCK NUT,1/4"-20, GA
|
IH
NUT - hex lock, 1/4 inch NC Superseded by part number: 87034810
|
| 36. |
ZA104912
|
[1] |
SHAFT
|
IH
- cross
|
| 37. |
280112
|
[1] |
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
|
NH
|
| 38. |
ZA103937
|
[2] |
WASHER
|
IH
- retaining Superseded by part number: 1326407C1
|
| 39. |
ZA103138
|
[1] |
FASTENER
|
IH
|
| 40. |
ZA104705
|
[1] |
SHIELD
|
IH
|
| 41. |
106969R1
|
[2] |
WASHER
|
IH
- flat, 11/32 x 1-1/4 x 1/16 inch (8 x 31 x 1 mm) Superseded by part number: 495-81119
|
| 42. |
9412083
|
[2] |
NUT,5/16"-18, GB
|
IH
NUT - hex lock, 5/16 inch NC Superseded by part number: 9413994
|
| 43. |
619333R1
|
[2] |
FLANGED BEARING
|
IH
HOUSING - bearing
|
| 44. |
664597R91
|
[1] |
BALL BEARING,1.5005" ID x 90 mm OD x 1.625"
|
IH
Superseded by part number: 47577202
|
| 45. |
664598R11
|
[1] |
COLLAR
|
IH
WITH SET SCREW
|
| 46. |
485-13816
|
[1] |
SET SCREW,Sq Hd, 3/8"-16 x 1"
|
CAS
SCREW - set, hex socket headless cup point, 3/8 NF x 1 inch Superseded by part number: 84983
|
| 47. |
ZA104591
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 16 teeth
|
| 48. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY - (Use 99 links from roll marked 654437R91, 1 offset link, 654439R91 and 1 connecting link, 654438R91)
|
| . . |
654437R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3.048 m) roll
|
| . . |
654438R91
|
[1] |
LINK
|
IH
- connecting Superseded by part number: 241-1418
|
| . . |
654439R91
|
[1] |
LINK
|
IH
- offset Superseded by part number: 241-1718
|
| 49. |
432-1640
|
[1] |
COTTER PIN,1/4" x 2 1/2"
|
CAS
Pin, Split (Cotter), 1/4" x 2 1/2" Superseded by part number: 80752
|
| 50. |
432-1220
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Pin, Split (Cotter), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 51. |
96315C1
|
[1] |
BRONZE BUSHING
|
IH
BUSHING
|
| 52. |
1281008C1
|
[1] |
SPRING
|
IH
|
| 53. |
ZA104649
|
[1] |
ARM
|
IH
|
| 54. |
67872C1
|
[1] |
WASHER
|
IH
|
| 55. |
ZA740486
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 12 tooth
|
| 56. |
1254031C1
|
[1] |
RING
|
IH
- retaining
|
| 57. |
133214R91
|
[1] |
BEARING LOCK NUT
|
IH
BEARING Superseded by part number: 87302841
|
| 58. |
446257
|
[1] |
WASHER,3/4" x 1 3/4" x .148"
|
IH
- flat, 13/16 x 1-3/4 x 1/8 inch (20 x 44 x 3 mm) Superseded by part number: 495-31081
|
| 59. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
BOLT - hex, 5/8 NC x 1-3/4 inch
|
| 60. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 61. |
280374
|
[1] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
- hex, 5/18 inch NC
|
