沃尔沃零件查询4300 Injector prod nr 16100,161064300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
791 次

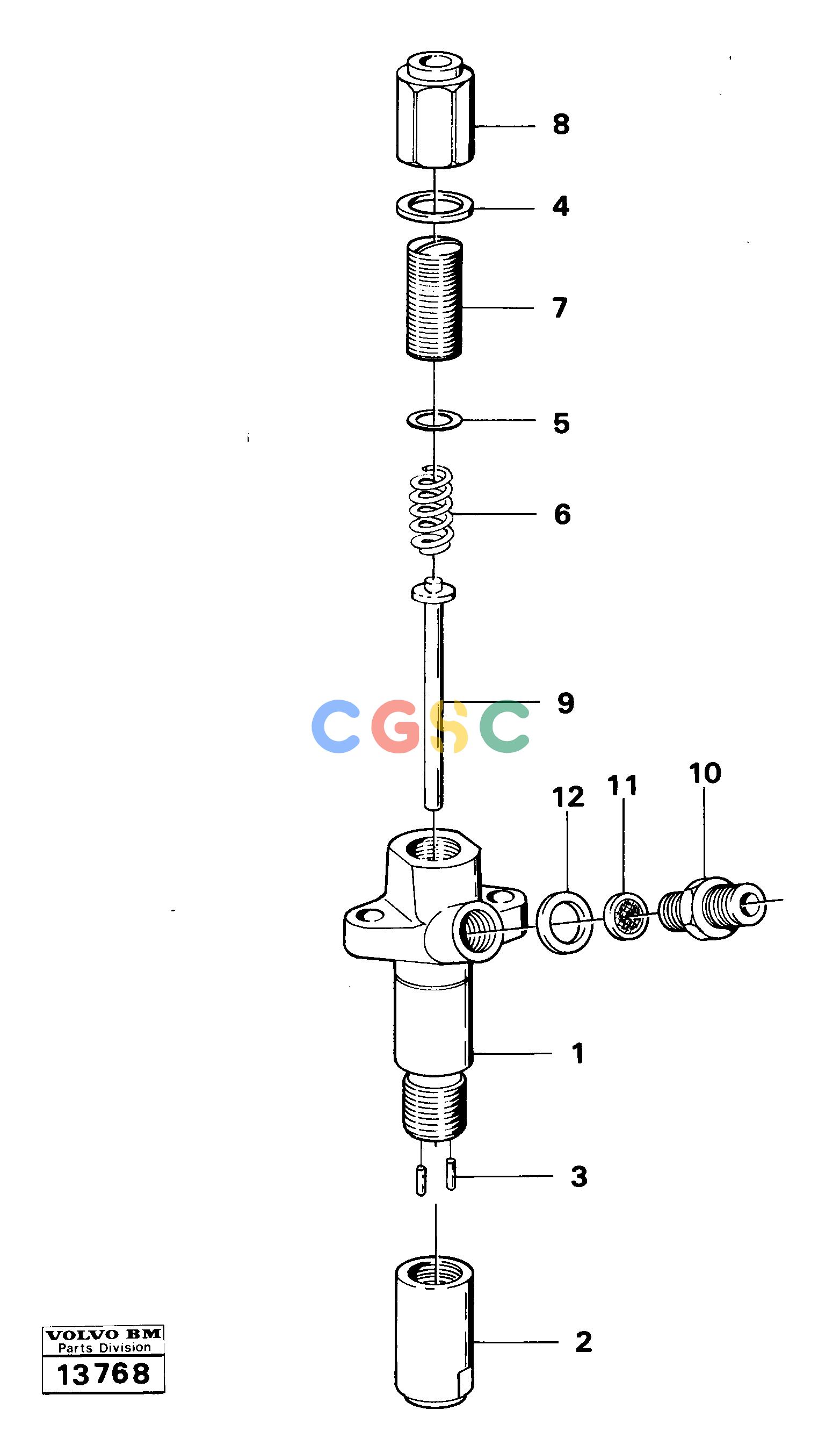

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE7078310
|
[2] |
Bowl
|
D=2,92 ALT.
|
| |
VOE7242007
|
[2] |
Pin
|
D=2,93 ALT.
|
| |
VOE7236956
|
[2] |
Pin
|
D=2,94 ALT.
|
| 4. |
VOE7242014
|
[1] |
Washer
|
|
| 5. |
VOE7242419
|
[1] |
Spacer
|
|
| |
|
[0001] |
Injector
|
|
| 6. |
VOE7242084
|
[1] |
Spring
|
|
| 7. |
VOE7242086
|
[1] |
Nut
|
|
| 8. |
VOE7242088
|
[1] |
Nut
|
|
| 9. |
VOE7242700
|
[1] |
Push Rod
|
|
| 10. |
VOE6644151
|
[1] |
Connector
|
|
| 11. |
VOE7078286
|
[1] |
Filter
|
|
| 12. |
VOE7242702
|
[1] |
Gasket
|
|
| |
VOE4786850
|
[1] |
Nozzle
|
|
| |
VOE7242698
|
[0001] |
Noz Holder Body
|
|
| 1. |
|
[0001] |
Housing
|
|
| 2. |
VOE7242699
|
[1] |
Nut
|
|
