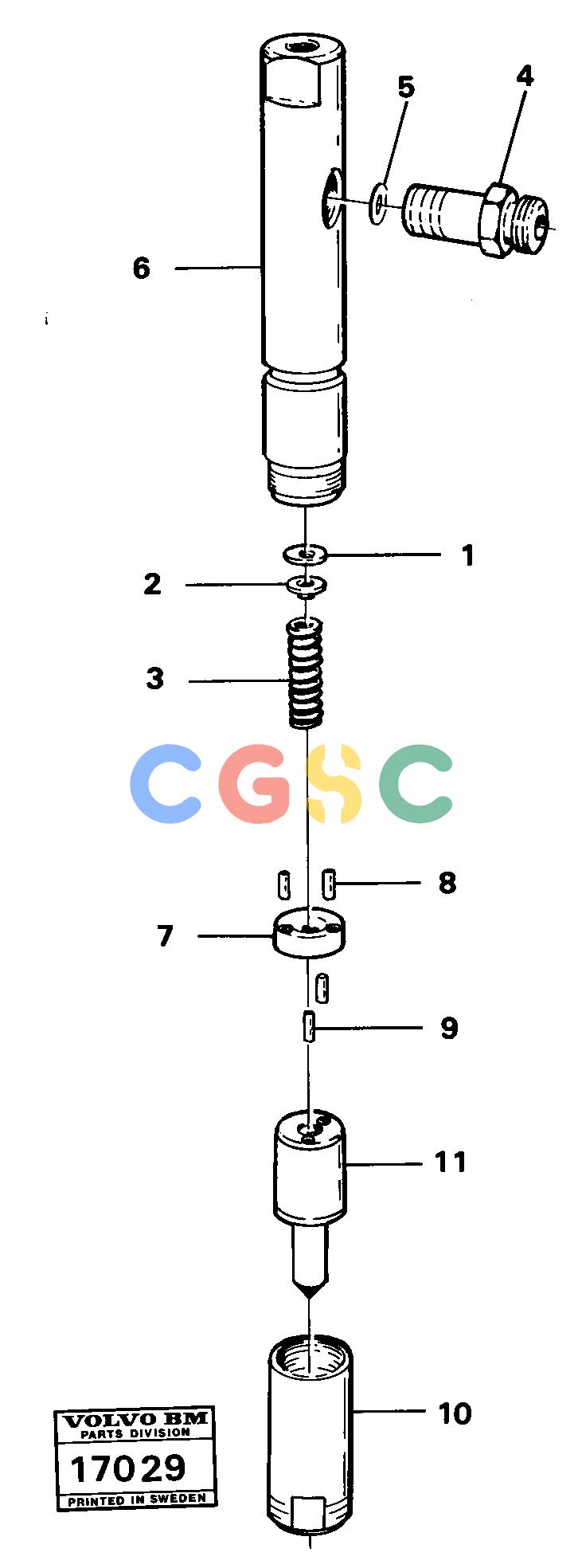

沃尔沃零件查询4300 Injector prod nr 16300, 163054300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE6211977
|
[REQ] |
Shim
|
THICK=0,44
|
| |
VOE6211978
|
[REQ] |
Shim
|
THICK=0,47
|
| |
VOE6211979
|
[REQ] |
Shim
|
THICK=0,50
|
| |
VOE6211979
|
[REQ] |
Shim
|
THICK=0,53
|
| |
VOE6211983
|
[REQ] |
Shim
|
THICK=0,56
|
| |
|
[0001] |
Injector
|
|
| |
VOE6211982
|
[REQ] |
Shim
|
THICK=0,59
|
| |
VOE6211983
|
[REQ] |
Shim
|
THICK=0,62
|
| |
VOE6211984
|
[REQ] |
Shim
|
THICK=0,65
|
| |
VOE6211985
|
[REQ] |
Shim
|
THICK=0,68
|
| |
VOE6211986
|
[REQ] |
Shim
|
THICK=0,98
|
| |
VOE6211987
|
[REQ] |
Shim
|
THICK=1,28
|
| |
VOE6211988
|
[REQ] |
Shim
|
THICK=1,58
|
| 2. |
VOE6211989
|
[0001] |
Spring disc
|
|
| 3. |
VOE6211990
|
[0001] |
Spring
|
|
| 4. |
VOE6211991
|
[0001] |
Connector
|
|
| |
VOE4880460
|
[0001] |
Nozzle retainer
|
|
| 5. |
VOE11000011
|
[0001] |
Gasket
|
|
| 6. |
|
[0001] |
Housing
|
|
| 7. |
VOE6211993
|
[0001] |
Adapter
|
|
| 8. |
|
[0002] |
Pin
|
|
| 9. |
|
[0002] |
Pin
|
|
| 10. |
VOE6211994
|
[0001] |
Cap nut
|
|
| 11. |
VOE4880582
|
[0001] |
Nozzle
|
|
| 1. |
VOE6211975
|
[REQ] |
Shim
|
THICK=0,30
|
| |
VOE6211976
|
[REQ] |
Shim
|
THICK=0,41
|
