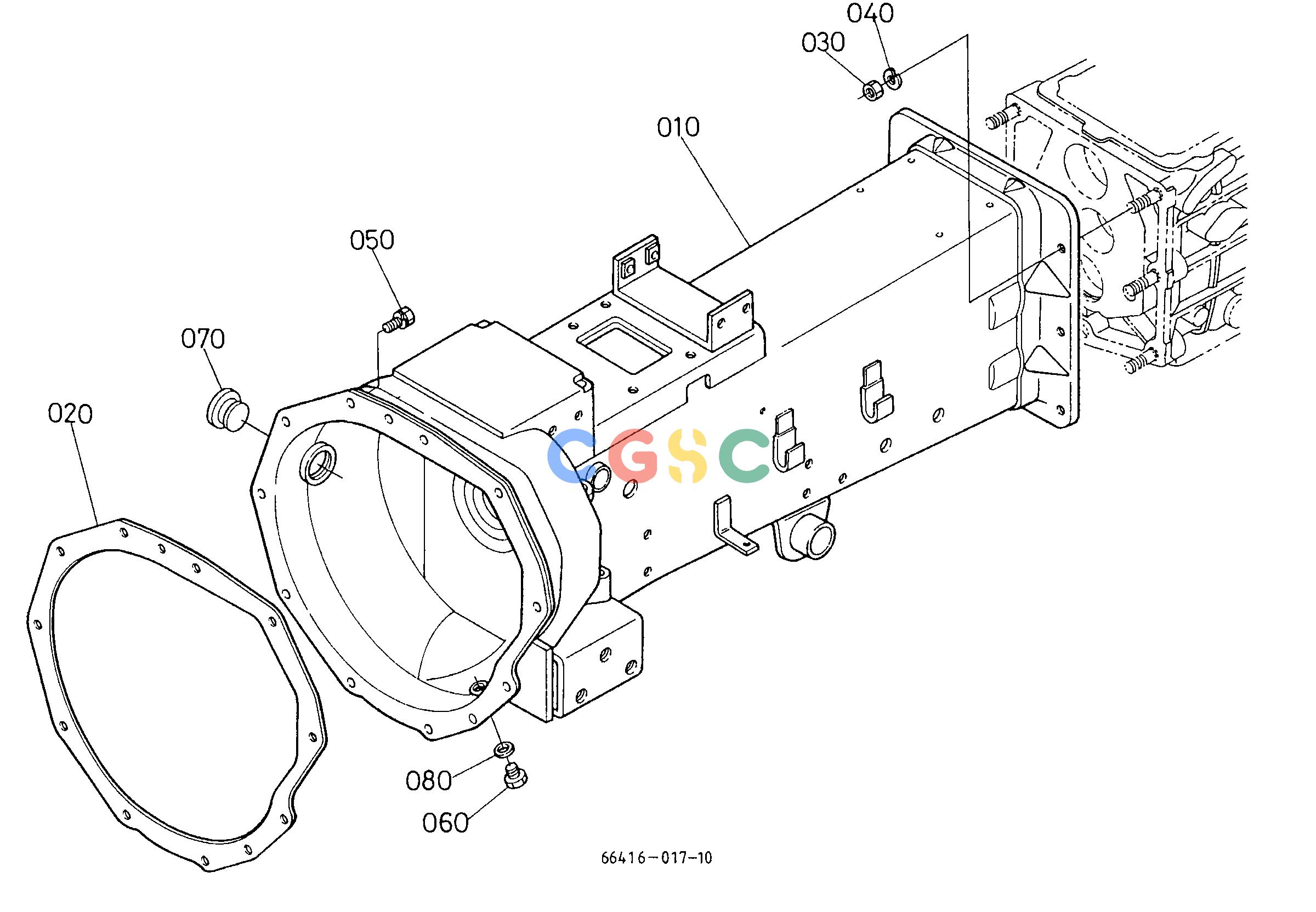

久保田零件查询T04800 CLUTCH HOUSING CLUTCHEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641651110
|
[1] |
HOUSING FRAME CLUTCH
|
0.0000(lbs); 0.000
|
| 010. |
6641651114
|
[1] |
HOUSING FRAME CLUTCH
|
0.0000(lbs); 0.000
|
| 010. |
6641651116
|
[1] |
HOUSING FRAME CLUTCH
|
46.6840(lbs); 21.220
|
| 020. |
6662151410
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
0217450120
|
[7] |
NUT
|
0.0220(lbs); 0.010
|
| 040. |
0451250120
|
[7] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 050. |
0112350825
|
[11] |
BOLT
|
0.0286(lbs); 0.013
|
| 060. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 070. |
6670451190
|
[1] |
COVER TIMING HOLE
|
0.0198(lbs); 0.009
|
| 080. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
