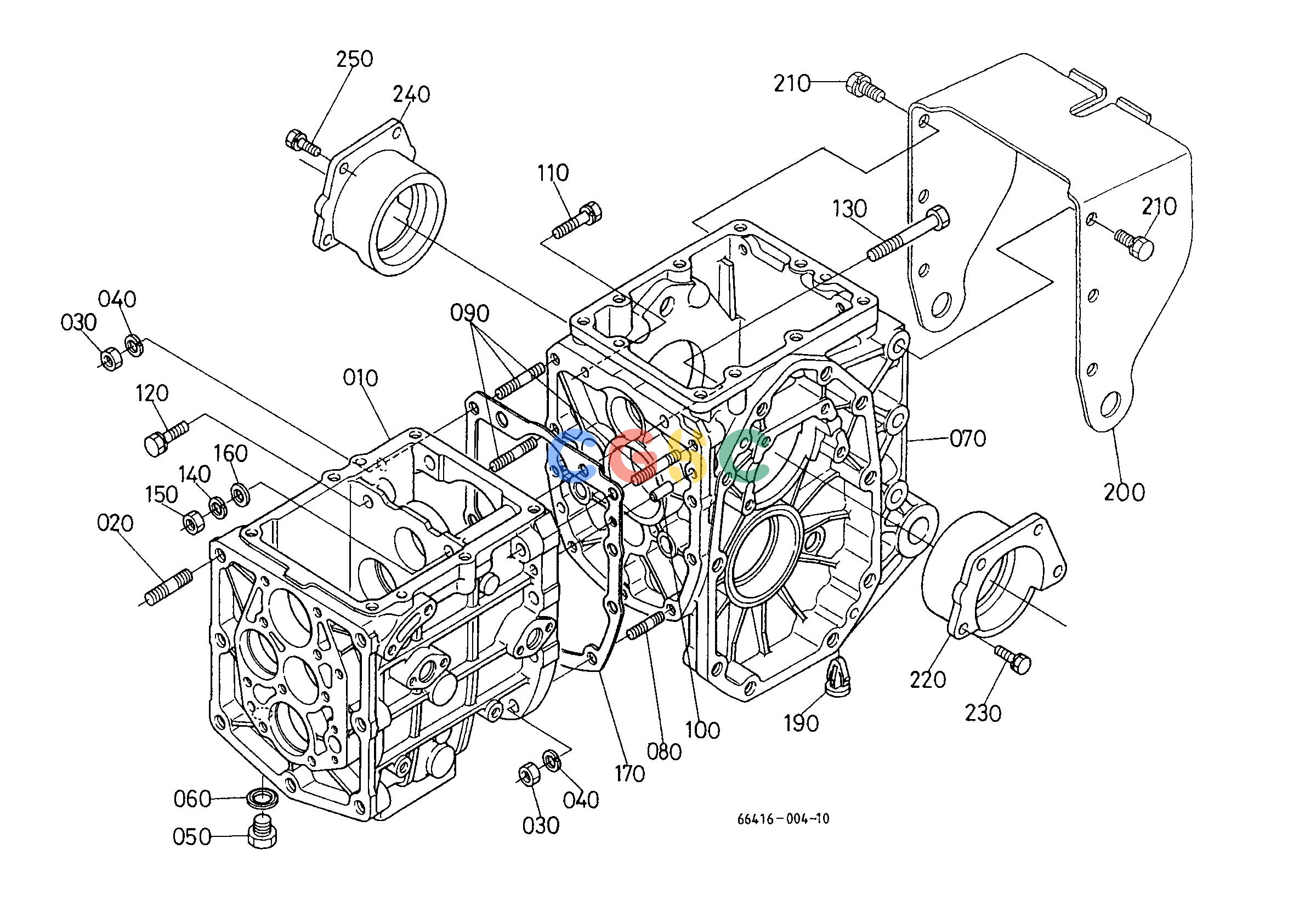

久保田零件查询T04900 TRANSMISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
568 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641611110
|
[1] |
CASE TRANSMISSION
|
0.0000(lbs); 0.000
|
| 010. |
6641611114
|
[1] |
CASE TRANSMISSION
|
10.4720(lbs); 4.760
|
| 020. |
0155551225
|
[7] |
STUD
|
0.0858(lbs); 0.039
|
| 030. |
0217650100
|
[9] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
0451260100
|
[9] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 050. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 060. |
0471701700
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 070. |
6661111172
|
[1] |
CASE GEAR
|
0.0000(lbs); 0.000
|
| 070. |
6661111173
|
[1] |
CASE GEAR
|
0.0000(lbs); 0.000
|
| 070. |
6661111174
|
[1] |
CASE DIFF.GEAR
|
18.7000(lbs); 8.500
|
| 080. |
0155551035
|
[6] |
STUD
|
0.0638(lbs); 0.029
|
| 090. |
0155551050
|
[3] |
STUD
|
0.0836(lbs); 0.038
|
| 100. |
6661111160
|
[2] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 110. |
0112350838
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 120. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
| 130. |
6661111140
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 130. |
1738191010
|
[1] |
BOLT
|
0.1870(lbs); 0.085
|
| 140. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 150. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 160. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 170. |
6690511130
|
[1] |
GASKET
|
0.0176(lbs); 0.008
|
| 190. |
6721111140
|
[3] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 200. |
6641611210
|
[2] |
PLATE
|
0.9680(lbs); 0.440
|
| 200. |
6670411214
|
[1] |
COVER PTO
|
4.9720(lbs); 2.260
|
| 210. |
0112351235
|
[6] |
BOLT
|
0.0902(lbs); 0.041
|
| 220. |
6661111510
|
[1] |
HOLDER DIFF.BRG.LH
|
1.7160(lbs); 0.780
|
| 230. |
0112350822
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 240. |
6661111812
|
[1] |
HOLDER DIFF.BRG.RH
|
1.5840(lbs); 0.720
|
| 250. |
0112350822
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
