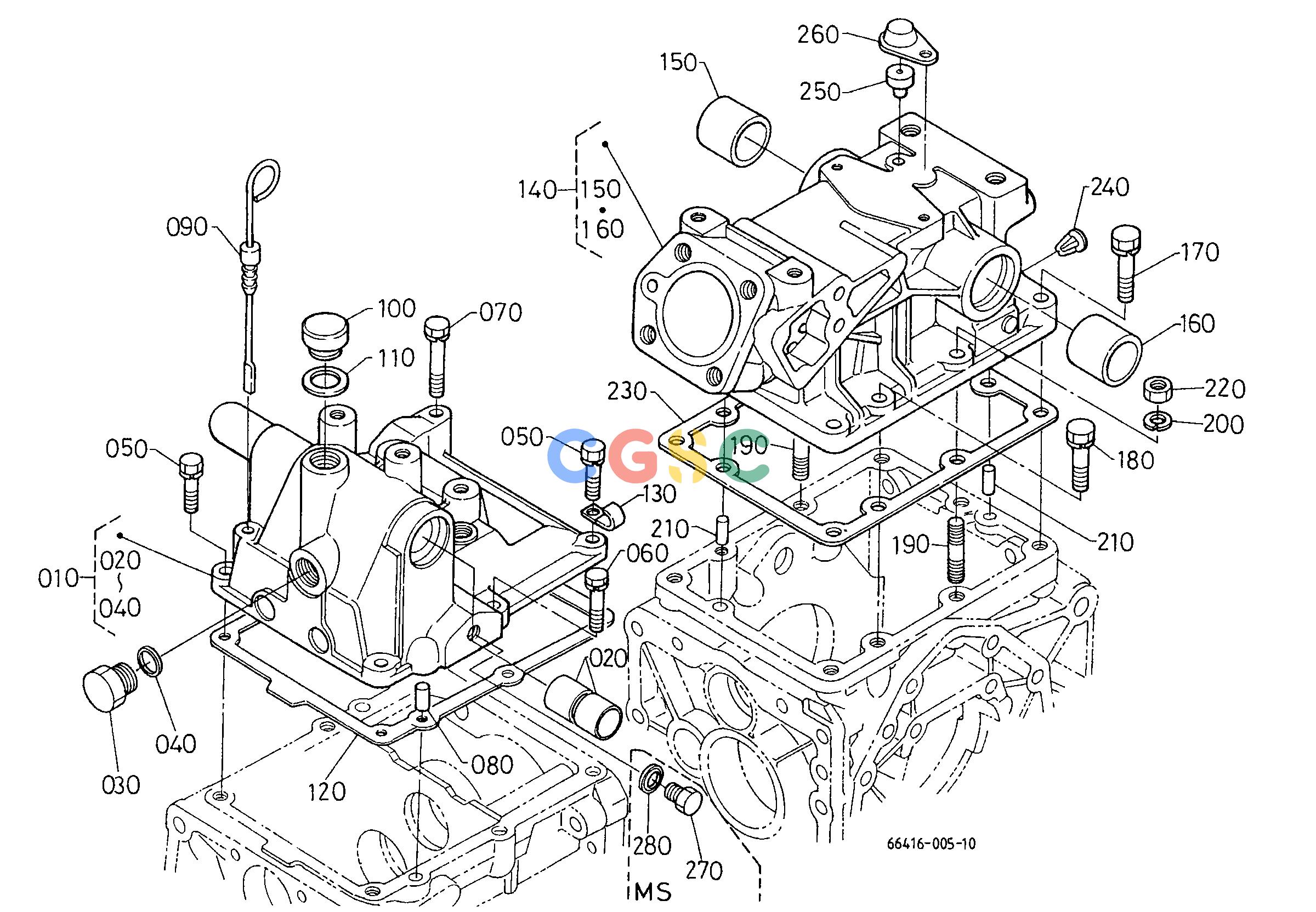

久保田零件查询T05000 TRANSMISSION CASE COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641612400
|
[1] |
ASSY COVER UPPER F.
|
10.3400(lbs); 4.700
|
| 020. |
6715618230
|
[2] |
BUSH
|
0.0220(lbs); 0.010
|
| 030. |
0631155040
|
[1] |
PLUG
|
0.2046(lbs); 0.093
|
| 040. |
0471702150
|
[1] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
| 050. |
0112350828
|
[3] |
BOLT
|
0.0308(lbs); 0.014
|
| 060. |
0112351035
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 070. |
0112350845
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 080. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 090. |
6641612420
|
[1] |
GAUGE OIL
|
0.0330(lbs); 0.015
|
| 100. |
6659111460
|
[1] |
CAP
|
0.0352(lbs); 0.016
|
| 110. |
0471300400
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 120. |
6659111220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 130. |
1381667580
|
[2] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 130. |
1382467580
|
[2] |
CLAMP CORD
|
0.0132(lbs); 0.006
|
| 140. |
6641612500
|
[1] |
ASSY COVER REAR
|
9.1080(lbs); 4.140
|
| 150. |
3435025380
|
[1] |
BUSH
|
0.1012(lbs); 0.046
|
| 160. |
6711136320
|
[1] |
BUSH
|
0.1430(lbs); 0.065
|
| 170. |
0112351040
|
[3] |
BOLT
|
0.0660(lbs); 0.030
|
| 180. |
0112351035
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 190. |
0155451045
|
[2] |
STUD
|
0.0704(lbs); 0.032
|
| 200. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 210. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 220. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 230. |
6690512520
|
[1] |
GASKET
|
0.0132(lbs); 0.006
|
| 240. |
6721111140
|
[2] |
PLUG BLIND
|
0.0022(lbs); 0.001
|
| 250. |
6715612530
|
[1] |
CAP BREATHER
|
0.0000(lbs); 0.000
|
| 250. |
6715612532
|
[1] |
CAP BREATHER
|
0.0220(lbs); 0.010
|
| 250. |
6715612533
|
[1] |
BREATHER
|
0.0044(lbs); 0.002
|
| 260. |
6715612540
|
[1] |
COVER BREATHER
|
0.0220(lbs); 0.010
|
| 270. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 280. |
0471400120
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
