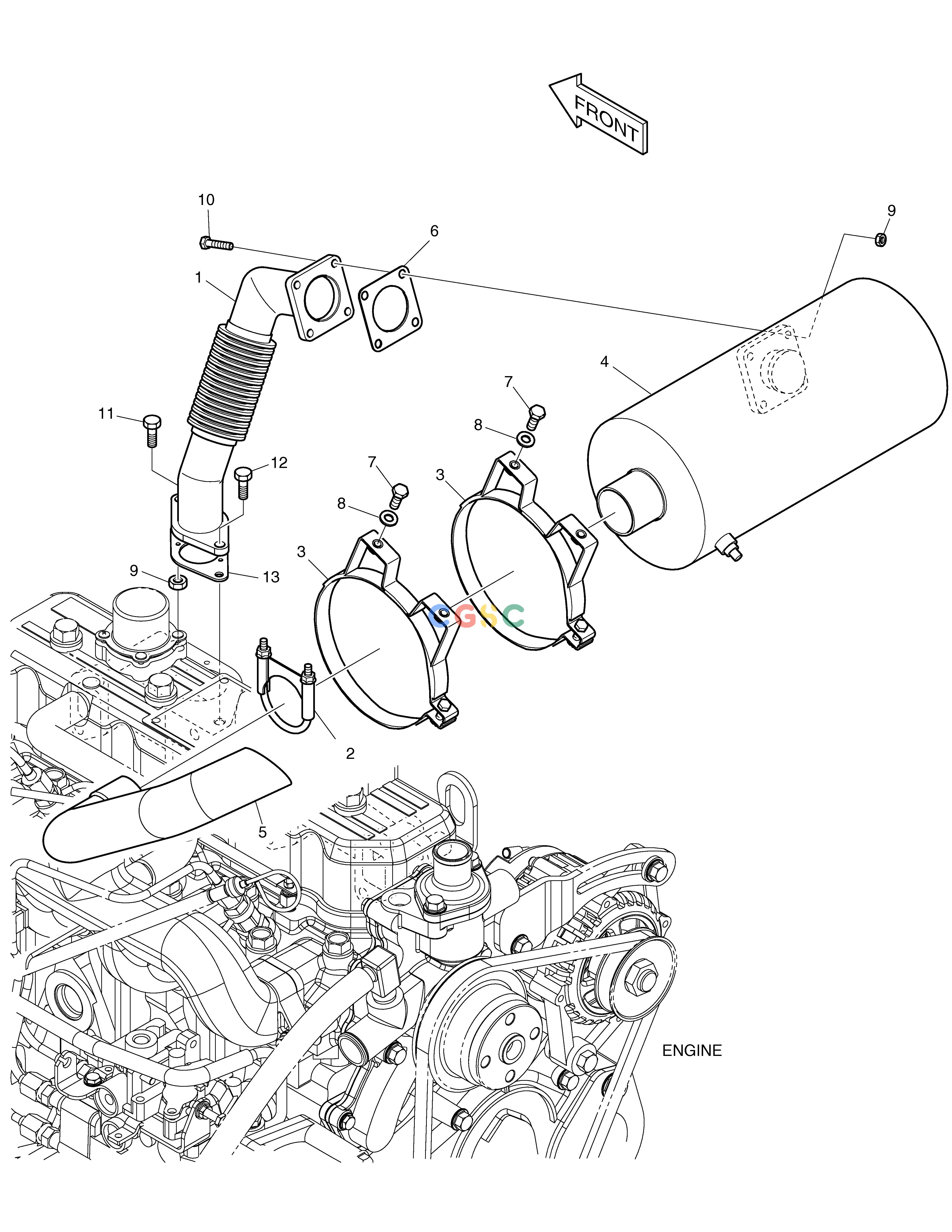

斗山零件查询MUFFLER 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021272
|
[-] |
MUFFLER ASS'Y
|
|
| 1. |
K1021316
|
[1] |
TUBE;FLEXIBLE
|
|
| 10. |
S0509363
|
[4] |
BOLT
|
|
| 11. |
S0509563
|
[1] |
BOLT
|
|
| 12. |
S0509063
|
[1] |
BOLT M8X1.25X25
|
|
| 13. |
K1019360
|
[1] |
GASKET
|
|
| 2. |
K1020220
|
[1] |
CLAMP
|
|
| 3. |
K1020160
|
[2] |
BAND
|
|
| 4. |
K1020061
|
[1] |
MUFFLER
|
|
| 5. |
K1020870
|
[1] |
TUBE
|
|
| 6. |
K1022323
|
[1] |
GASKET
|
K1022323A
|
| 6. |
K1022323A
|
[1] |
GASKET
|
|
| 7. |
S0512063
|
[4] |
WASHER
|
|
| 8. |
K1023147
|
[4] |
WASHER;HARDENED
|
|
| 9. |
K1023115
|
[5] |
NUT;LOCK
|
|
