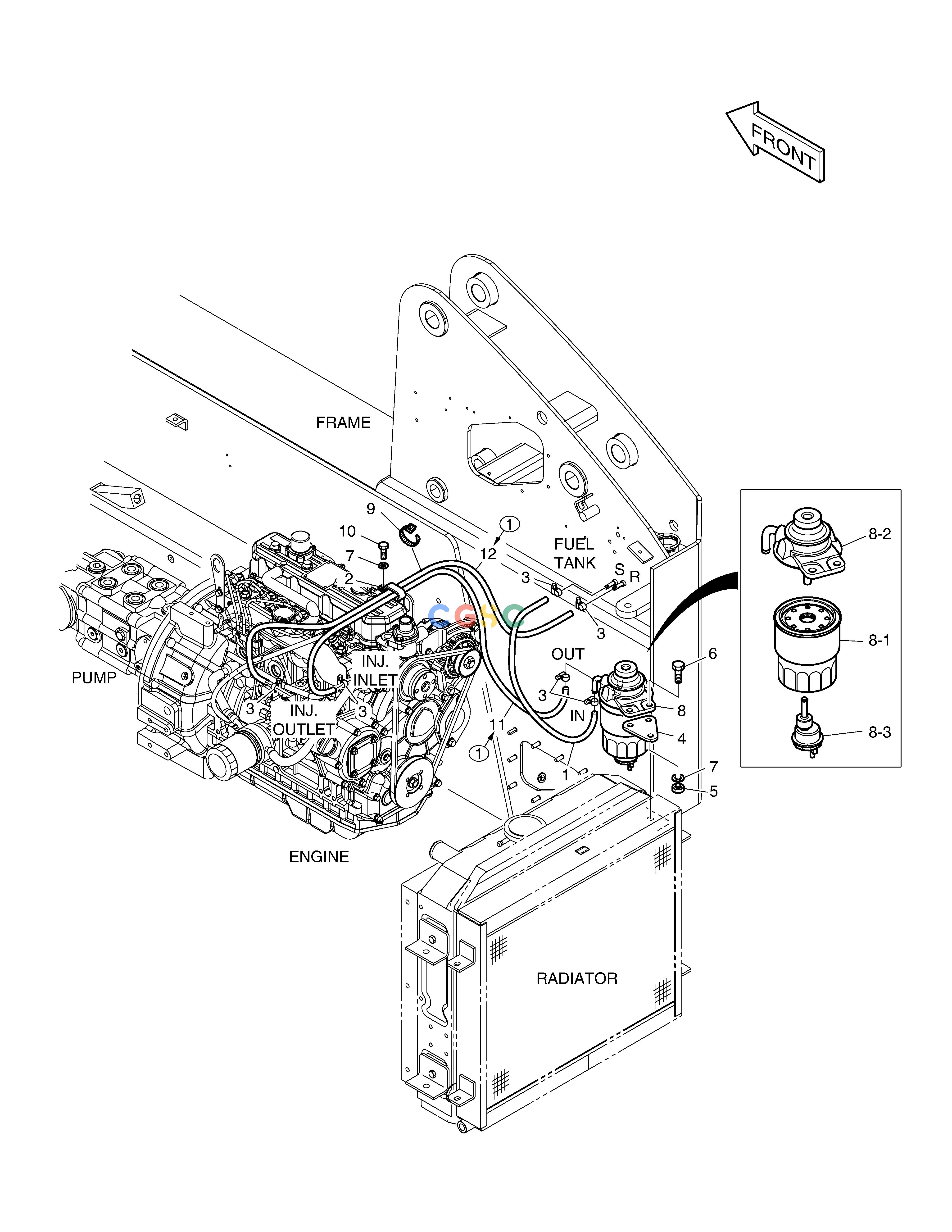

斗山零件查询FUEL PIPING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1021268A
|
[-] |
FUEL PIPING
|
|
| 1. |
K1022322
|
[272] |
HOSE
|
|
| 1. |
DS2079208
|
[1] |
HOSE
|
|
| 10. |
S0508463
|
[1] |
BOLT
|
|
| 11. |
DS2079209
|
[1] |
HOSE
|
|
| 12. |
DS2079210
|
[1] |
HOSE
|
|
| 2. |
K1022924
|
[1] |
CLIP
|
|
| 3. |
S8450006
|
[6] |
CLAMP
|
|
| 4. |
K1020553
|
[1] |
PLATE;FILTER MOUNTING
|
|
| 5. |
K1023115
|
[2] |
NUT;LOCK
|
|
| 6. |
S0509063
|
[2] |
BOLT M8X1.25X25
|
|
| 7. |
K1023146
|
[3] |
WASHER;HARDENED
|
|
| 8. |
K1019407
|
[1] |
FUEL FILTER ASS'Y
|
|
| 8-1. |
K1019408
|
[1] |
FILTER;FUEL
|
|
| 8-2. |
K1022420
|
[1] |
HEAD;FUEL FILTER
|
|
| 8-3. |
K1019122
|
[1] |
SENSOR
|
|
| 9. |
K1022971
|
[2] |
CLIP;BAND
|
|
