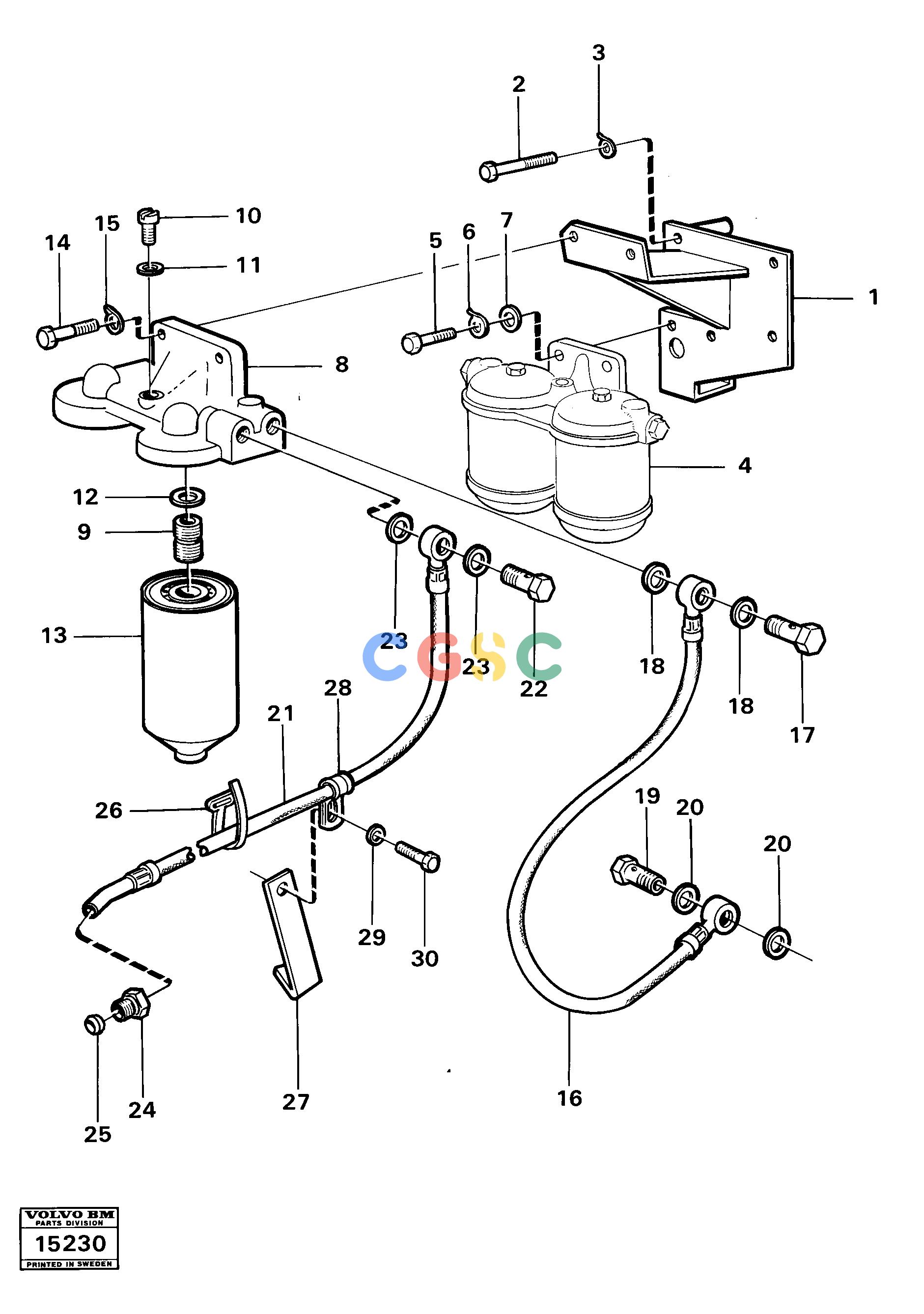

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE60111880
|
[0002] |
Hexagon screw
|
|
| 6. |
VOE13941907
|
[0002] |
Washer
|
|
| 7. |
VOE13960141
|
[0002] |
Washer
|
|
| 8. |
VOE787029
|
[0001] |
Cover
|
|
| 9. |
VOE781644
|
[0002] |
Nipple
|
|
| 1. |
VOE4928730
|
[0001] |
Anchorage
|
|
| 10. |
VOE11000051
|
[0001] |
Screw
|
|
| 11. |
VOE957171
|
[0001] |
Gasket
|
|
| 12. |
VOE949658
|
[0002] |
O-ring
|
|
| 13. |
VOE795210
|
[0002] |
Fuel filter
|
|
| 14. |
VOE60111880
|
[0002] |
Hexagon screw
|
|
| 15. |
VOE13941907
|
[0002] |
Washer
|
|
| 16. |
VOE4774631
|
[0001] |
Fuel hose
|
L=600
|
| 17. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 18. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 19. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 2. |
VOE955532
|
[0001] |
Hexagon screw
|
|
| 20. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 21. |
VOE4804354
|
[0001] |
Fuel hose
|
L=1250
|
| 22. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 23. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 24. |
VOE4780356
|
[0001] |
Nipple
|
|
| 25. |
VOE954365
|
[0001] |
Olive
|
|
| 26. |
VOE4881440
|
[0003] |
Cable tie
|
|
| 27. |
|
[0001] |
Attachment
|
|
| 28. |
VOE13949746
|
[0001] |
Clamp
|
|
| 29. |
VOE13941906
|
[0001] |
Washer
|
|
| 3. |
VOE13941907
|
[0001] |
Washer
|
|
| 30. |
VOE955269
|
[0001] |
Hexagon screw
|
|
| 4. |
|
[0001] |
Fuel filter
|
|
