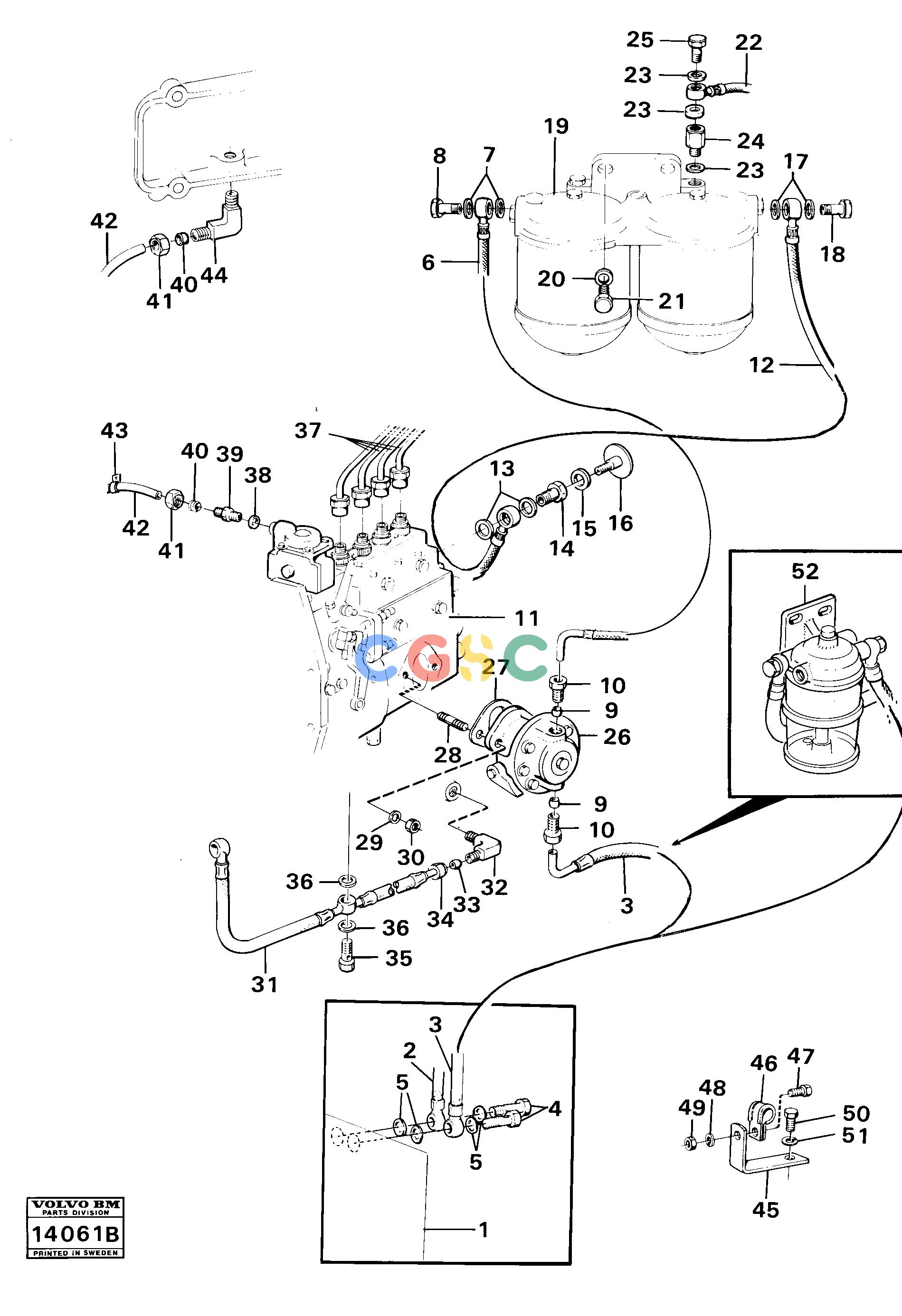

沃尔沃零件查询4300 Fuel system mo -481974300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 46. |
VOE13949746
|
[0001] |
Clamp
|
MO -53913
|
| 42. |
VOE787969
|
[0650] |
Tube
|
|
| 43. |
VOE942400
|
[0001] |
Clamp
|
MO 37989-
|
| 44. |
VOE954386
|
[0001] |
Elbow nipple
|
|
| 45. |
VOE787315
|
[0001] |
Bracket
|
MO -53913
|
| 46. |
VOE13949746
|
[0001] |
Clamp
|
|
| |
|
|
None
|
SER NO -1732
|
| |
VOE952625
|
[0001] |
Clamp
|
D=9,5 MO-53913
|
| |
VOE952627
|
[0001] |
Clamp
|
D=12,5 MO-53913
|
| |
VOE952628
|
[0001] |
Clamp
|
D=14.3 MO-53913
|
| 47. |
VOE13955523
|
[0001] |
Screw
|
MO-53
|
| 5. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 48. |
VOE13941907
|
[0001] |
Washer
|
MO-53913
|
| 49. |
VOE955826
|
[0001] |
Hexagon nut
|
MO-53913
|
| 50. |
VOE955558
|
[0001] |
Hexagon screw
|
MO-53913
|
| 51. |
VOE940280
|
[0001] |
Spring washer
|
MO-53913
|
| 52. |
|
[0001] |
Slurry separator
|
SER NO 2167-
|
| |
|
|
None
|
|
| 6. |
VOE787930
|
[0001] |
Fuel pipe
|
|
| 7. |
VOE13947621
|
[0002] |
Plane gasket
|
|
| 8. |
VOE60113509
|
[0001] |
Hollow screw
|
|
| 1. |
|
[0001] |
Fuel tank
|
|
| 9. |
VOE954365
|
[0002] |
Olive
|
|
| 10. |
VOE4780356
|
[0002] |
Nipple
|
|
| 11. |
VOE4786803
|
[0001] |
Injection Pump
|
MO - 40037
|
| |
|
|
None
|
|
| |
VOE4880090
|
[0001] |
Injection pump
|
MO 40038-
|
| |
|
|
None
|
|
| 12. |
VOE787931
|
[1] |
Fuel pipe
|
|
| 13. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 14. |
VOE787925
|
[1] |
Hollow screw
|
|
| 15. |
VOE947620
|
[1] |
Gasket
|
MO 37989-
|
| 2. |
VOE751019
|
[0001] |
Fuel hose
|
MO-44818
|
| 16. |
VOE242114
|
[1] |
Pressure equalizer
|
|
| 17. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 18. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 19. |
VOE4786766
|
[1] |
Fuel Filter
|
|
| |
|
|
None
|
|
| |
VOE4880383
|
[1] |
Fuel filter
|
|
| |
|
|
None
|
|
| 20. |
VOE941908
|
[2] |
Spring washer
|
|
| |
VOE4804334
|
[0001] |
Fuel pipe
|
MO 44819-
|
| |
|
|
None
|
|
| |
VOE13941909
|
[1] |
Washer
|
MO 37989-
|
| 21. |
VOE13970947
|
[2] |
Hexagon screw
|
|
| 22. |
VOE787933
|
[1] |
Leak-off line
|
MO-44818
|
| |
VOE4804323
|
[1] |
Leak-off line
|
MO 44819-
|
| 23. |
VOE13947281
|
[3] |
Gasket
|
|
| 3. |
VOE787063
|
[0001] |
Fuel hose
|
|
| 24. |
VOE7236634
|
[0001] |
Overflow valve
|
MO-44818
|
| |
VOE4804330
|
[0001] |
Nipple
|
MO 44819-
|
| 25. |
VOE787105
|
[0001] |
Screw
|
MO -44818
|
| |
VOE7074033
|
[0001] |
Hollow screw
|
MO 44819-
|
| 26. |
VOE4787717
|
[0001] |
Feed Pump
|
MO - 41419
|
| |
|
|
None
|
|
| |
VOE4880294
|
[0001] |
Feed pump
|
MO 41420-
|
| |
|
|
None
|
|
| 27. |
|
[0001] |
Gasket
|
|
| 28. |
VOE953235
|
[0002] |
Stud
|
|
| 29. |
VOE13941907
|
[0002] |
Washer
|
|
| 30. |
VOE955826
|
[0002] |
Hexagon nut
|
|
| |
VOE4804335
|
[0001] |
Fuel pipe
|
SER NO 1733-
|
| 31. |
VOE780559
|
[0001] |
Oil hose
|
|
| 32. |
VOE954384
|
[0001] |
Elbow nipple
|
|
| 33. |
VOE954363
|
[0001] |
Olive
|
|
| 34. |
VOE954348
|
[0001] |
Nut
|
|
| 35. |
VOE7074033
|
[0001] |
Hollow screw
|
|
| 36. |
VOE957171
|
[0002] |
Gasket
|
|
| 37. |
|
[0004] |
Fuel pipe
|
|
| 38. |
VOE13947281
|
[0001] |
Gasket
|
MO 37989-
|
| 39. |
VOE4804179
|
[0001] |
Nipple
|
|
| 40. |
VOE954365
|
[0002] |
Olive
|
|
