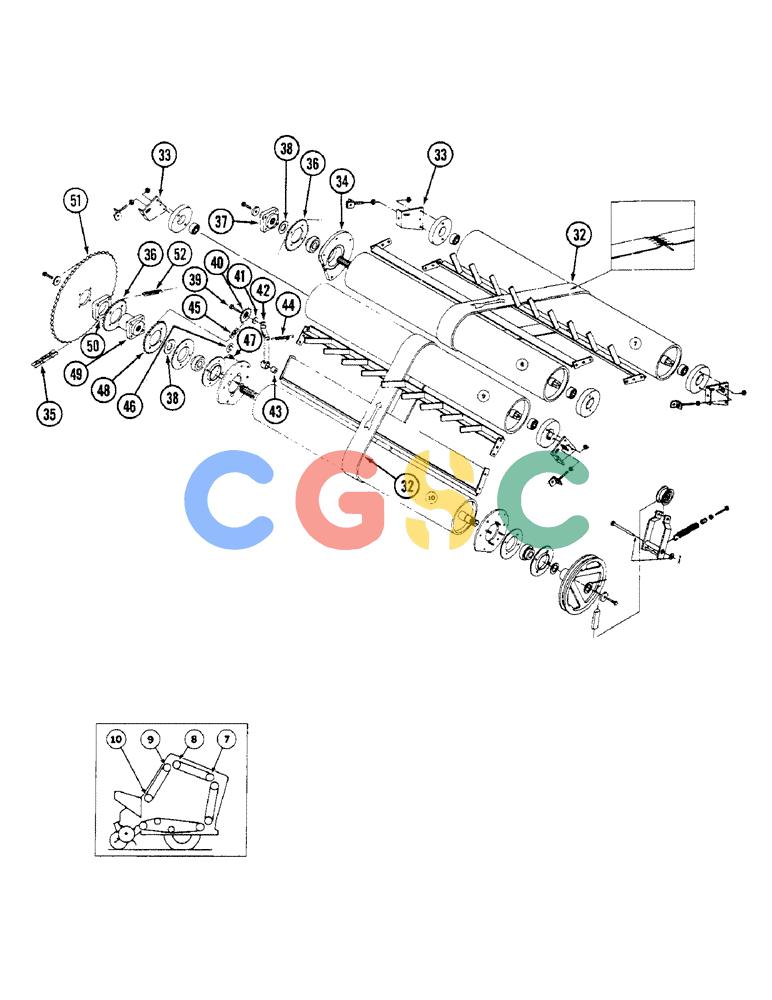

| 32. |
ZA105005
|
[10] |
BELT
|
IH
- top endless (11 inch wide) Superseded by part number: 700709544
|
| 33. |
ZA104986
|
[2] |
BRACKET
|
IH
TIGHTENER - right
|
| . . |
189305
|
[2] |
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
|
IH
- hex, 3/8 NC x 3-1/2 Superseded by part number: 186283
|
| 34. |
ZA104841
|
[1] |
HOUSING
|
IH
- bearing
|
| . . |
17351R1
|
[5] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT - round head square neck, 3/8 NC x 1 inch Superseded by part number: 88682
|
| 35. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY (Use 99 links from roll marked 654437R91, 1 offset link 654439R91 and 1 connecting link, 654438R91) (For power reduction use 95 links)
|
| . . |
654437R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3.048 m) roll
|
| . . |
654438R91
|
[1] |
LINK
|
IH
- connecting Superseded by part number: 241-1418
|
| . . |
654439R91
|
[1] |
LINK
|
IH
- offset Superseded by part number: 241-1718
|
| 36. |
ZA104227
|
[2] |
SPROCKET ASSY.
|
IH
SPROCKET - 30 teeth
|
| 37. |
ZA104593
|
[1] |
HUB
|
IH
|
| 38. |
22822R1
|
[2] |
WASHER
|
IH
- flat, 1-21/32 x 2-1/2 x 3/32 inch (42 x 63 x 2 mm) Superseded by part number: L31792
|
| 39. |
413-1032
|
[1] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
- hex, 5/8 NC x 2 inch Superseded by part number: 86505999
|
| 40. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
IDLER - 15 teeth
|
| 41. |
67872C1
|
[1] |
WASHER
|
IH
- flat, 21/32 x 1-1/4 x 1/4 inch (16 x 31 x 6 mm)
|
| 42. |
ZA104649
|
[1] |
ARM
|
IH
|
| 43. |
96315C1
|
[1] |
BRONZE BUSHING
|
IH
BUSHING
|
| 44. |
1281008C1
|
[1] |
SPRING
|
IH
- extension
|
| . . |
611362R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3.048 m) roll Superseded by part number: 611362R91X
|
| . . |
574532R91
|
[1] |
CLIP, SPRING
|
IH
LINK - connecting Superseded by part number: 241-1316
|
| 47. |
219-37
|
[2] |
LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF
|
CAS
FITTING - grease, 1/4 PTF x 45 degree Superseded by part number: 87569
|
| 48. |
ZA104229
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 30 teeth
|
| 49. |
ZA104619
|
[1] |
HUB
|
IH
|
| 50. |
ZA104607
|
[1] |
SPACER
|
IH
|
| 51. |
ZA104656
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 52 teeth (Interchangeable with ZA104624) Superseded by part number: 136475A1
|
| 51. |
ZA104624
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 42 teeth (Interchangeable with ZA104656) (For power reduction) Superseded by part number: 700120248
|
| . . |
191249
|
[4] |
BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5
|
IH
- hex, 3/8 NC x 3-1/2 inch Superseded by part number: 86505979
|
| . . |
120382
|
[4] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
208790C1
|
[1] |
PACKAGE
|
IH
KIT - belt repair (Box of lacing hooks)
|
| . . |
1254050C1
|
[1] |
TOOL
|
IH
LACER - belt (6 inch) Superseded by part number: 828459
|
