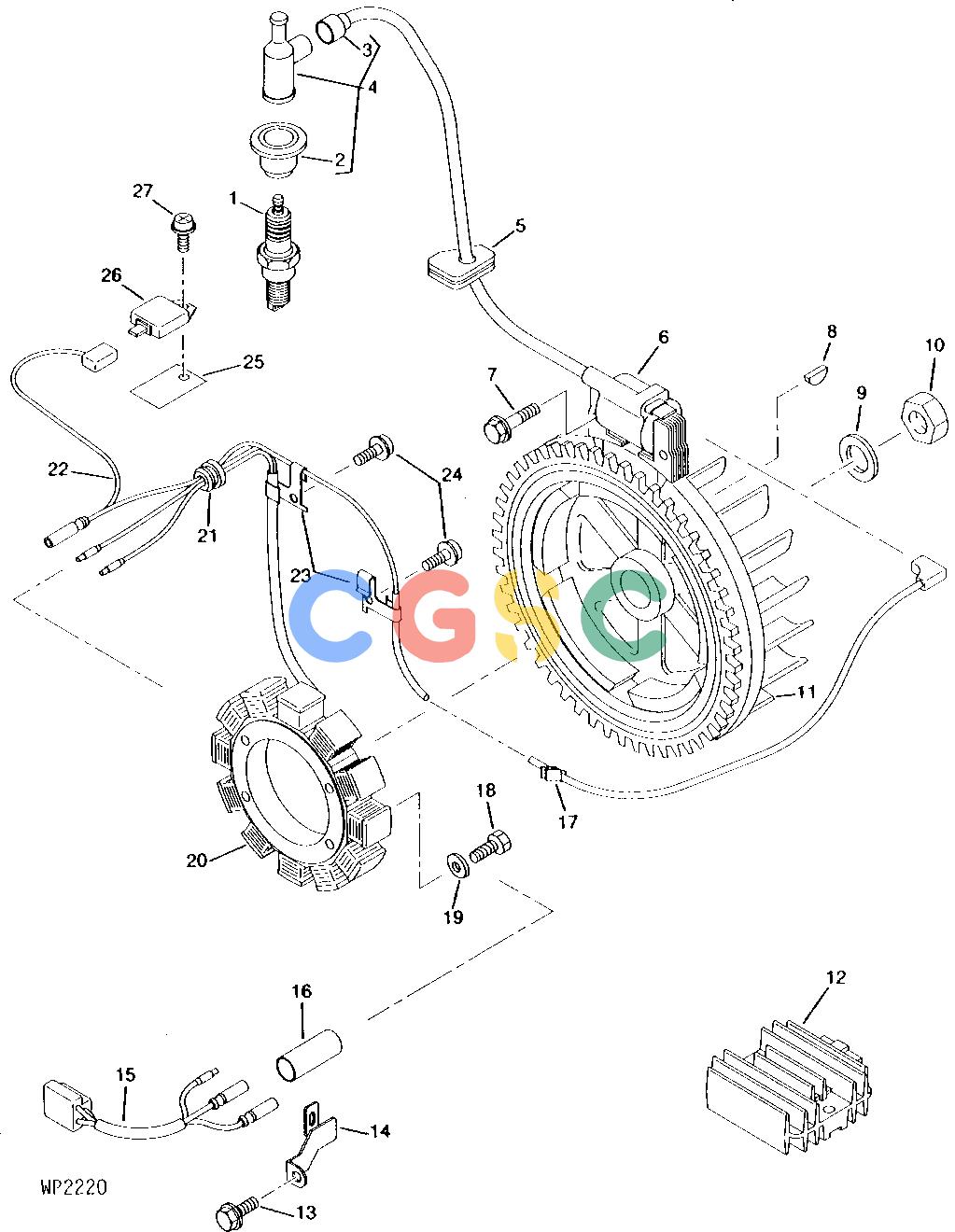

Pos.	Part No	Qty	Parts name	Comments
1.	M802138	[1]	Spark Plug	BPR5ES (NGK)
2.	W40450	[1]	Cover
3.	PT10001	[1]	Grommet
4.	AW26838	[1]	Plug
5.	M70118	[1]	Grommet
6.	W40449	[1]	ELECTRICAL COIL
7.	M88483	[2]	Bolt
8.	M77843	[1]	Shaft Key
9.	M70280	[1]	Washer
10.	M73821	[1]	NUT
11.	AM122741	[1]	Flywheel	(SUB FOR AW26839) (ALSO ORDER M119146) (WHEN REPLACING AW26839 WITH AM122741, M119146 IGNITER MUST BE USED WITH AM122741) (W40448 IGNITER IS MARKED TI-26; M119146 IGNITER IS MARKED TI-46)
12.	M70121	[1]	VOLTAGE REGULATOR
13.	19M7774	[1]	Screw	M6 X 12
14.	W40458	[1]	Clamp
15.	W40451	[1]	WIRING HARNESS
16.	W40454	[1]	Tube	(16 X 17 X 40 MM)
17.	W40457	[1]	Clamp
18.	21M7206	[4]	Screw	M6 X 20
19.	24M7054	[4]	Washer	6.400 X 12 X 1.600 MM
20.	M119147	[1]	Field Winding Coil	(SUB FOR W40453)
21.	W40455	[1]	Grommet
22.	W40452	[1]	WIRING LEAD
23.	W40456	[2]	Clamp
24.	M95848	[2]	Screw	(SUB FOR PT12100)
25.	W40447	[1]	Insulator
26.	M119146	[1]	Ignitor	(SUB FOR W40448)
27.	M77136	[1]	Screw
