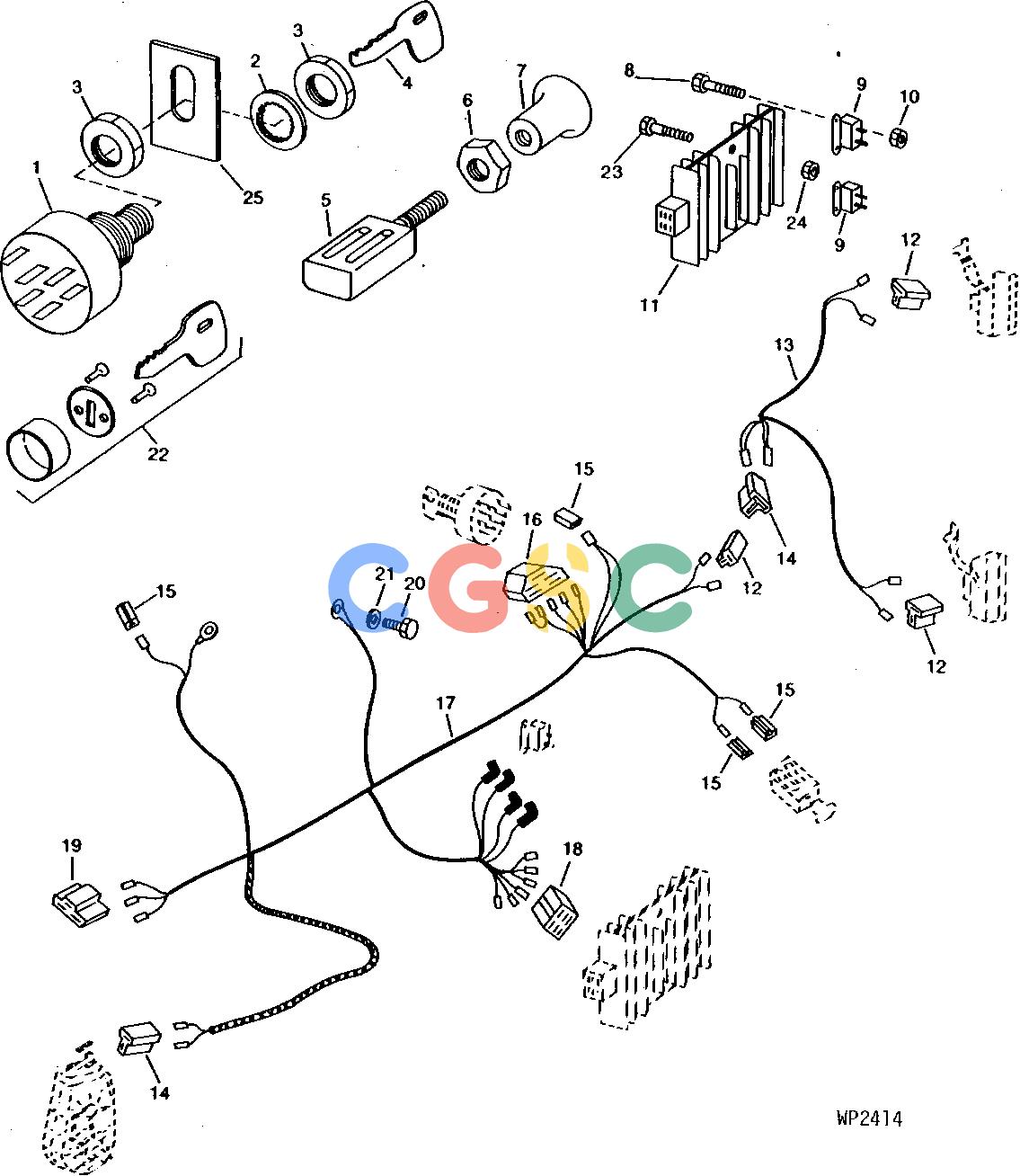

约翰迪尔零件查询622 - AMT MAIN WIRING HARNESS AND SWITCHES (NORTH AMERICAN VERSION) FAISCEAU DE FILS PRINCIPAL ET COMMUTATEURSEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AM101561
|
[1] |
Switch
|
|
| 2. |
M91167
|
[1] |
SPRING WASHER
|
|
| 3. |
M110159
|
[2] |
NUT
|
|
| 4. |
AM131841
|
[1] |
KEY
|
|
| 5. |
AM101021
|
[1] |
Switch
|
|
| 6. |
M83733
|
[1] |
NUT
|
|
| 7. |
AM31210
|
[1] |
Knob
|
|
| 8. |
19M7640
|
[4] |
CAP SCREW
|
|
| 9. |
AR28403
|
[2] |
Circuit Breaker
|
|
| 10. |
14M7265
|
[4] |
LOCK NUT
|
|
| 11. |
M70121
|
[1] |
VOLTAGE REGULATOR
|
|
| 12. |
........
|
[3] |
Connector
|
|
| 13. |
AW26778
|
[1] |
WIRING HARNESS
|
|
| 14. |
........
|
[2] |
Connector
|
|
| 15. |
........
|
[4] |
Connector
|
|
| 16. |
........
|
[1] |
Connector
|
|
| 17. |
AW26758
|
[1] |
WIRING HARNESS
|
|
| 18. |
........
|
[1] |
Connector
|
|
| 19. |
........
|
[1] |
Connector
|
|
| 20. |
12H291
|
[1] |
Lock Washer
|
|
| 21. |
19M7162
|
[1] |
CAP SCREW
|
|
| 22. |
AM107076
|
[1] |
Boot Kit
|
|
| 23. |
19M7160
|
[2] |
CAP SCREW
|
|
| 24. |
14M7165
|
[2] |
LOCK NUT
|
|
| 25. |
M95413
|
[1] |
Plate
|
|
| 25. |
M95413
|
[1] |
Plate
|
|
| ... |
R44302
|
[AR] |
Tie Band
|
|
| ... |
H77698
|
[AR] |
Tie Band
|
|
