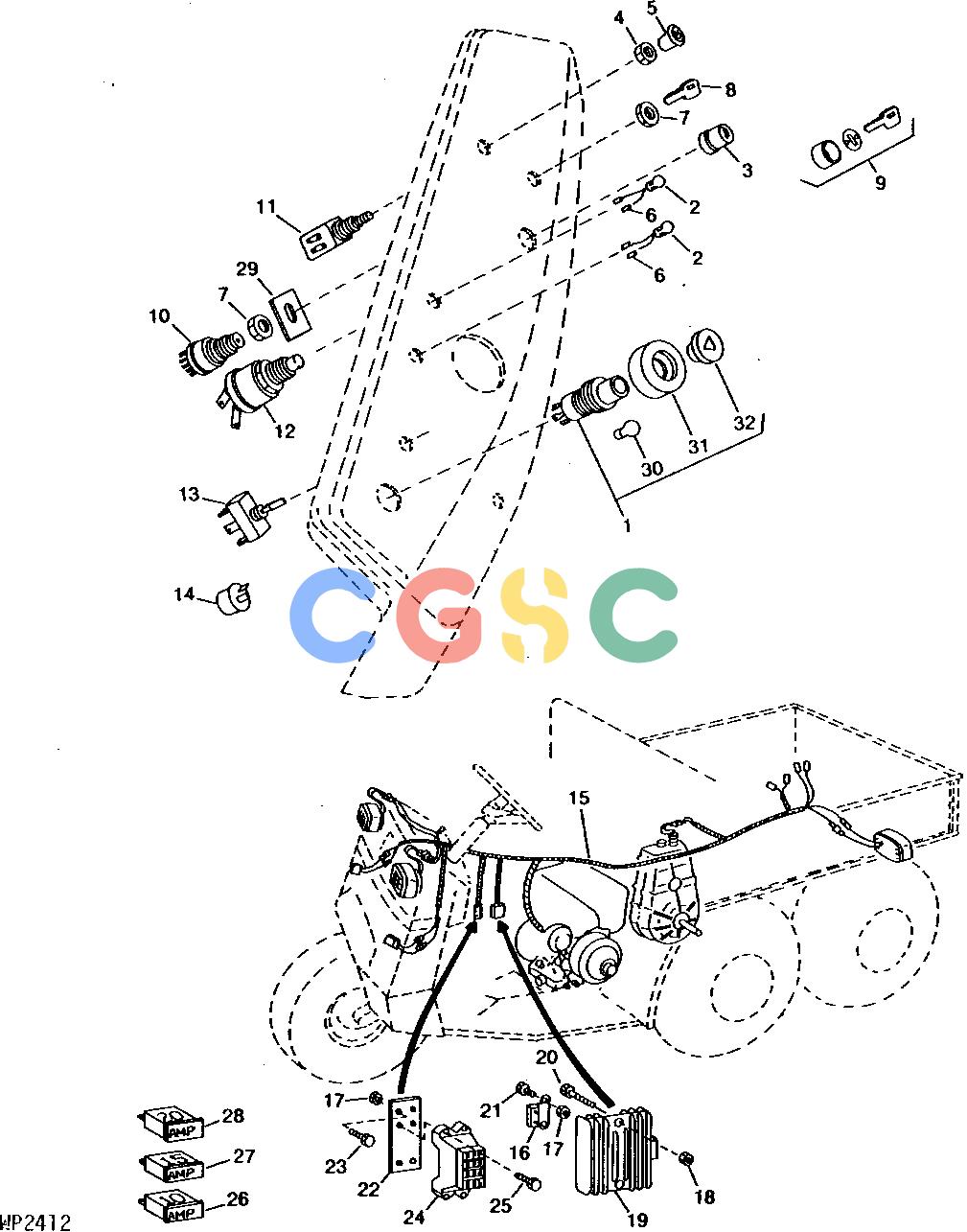

约翰迪尔零件查询622 - AMT MAIN WIRING HARNESS AND SWITCHES (EUROPEAN VERSION) FAISCEAU DE FILS PRINCIPAL ET COMMUTATEURS (VERSEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询622 - AMT MAIN WIRING HARNESS AND SWITCHES (EUROPEAN VERSION) FAISCEAU DE FILS PRINCIPAL ET COMMUTATEURS (VERSEPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 843 次

Pos.	Part No	Qty	Parts name	Comments
1.	AL32062	[1]	Switch
2.	AM108516	[2]	Lamp
3.	T55501	[1]	Cap
4.	........	[1]	NUT	NSEP
5.	AM31210	[1]	Knob
6.	M43835	[4]	ELECTRICAL CONNECTOR ASSY
7.	M110159	[2]	NUT
8.	AM131841	[1]	KEY	(SUB FOR AM101600)
9.	AM107076	[1]	Boot Kit
10.	AM101561	[1]	Switch
11.	AM108495	[1]	Switch	(A)
12.	AR20235	[1]	Switch	(B)
13.	AM107654	[1]	Switch	(C)
14.	AU41465	[1]	FLASHER
15.	AM108502	[1]	WIRING HARNESS
16.	AR28403	[1]	Circuit Breaker
17.	14M7360	[6]	LOCK NUT	M5
18.	14M7165	[2]	LOCK NUT	M6
19.	M70121	[1]	VOLTAGE REGULATOR
20.	19M7160	[2]	CAP SCREW	M6 X 30
21.	19M7640	[2]	CAP SCREW	M5 X 12
22.	M95366	[1]	Bracket
23.	37H154	[2]	Screw	1/4" X 1"
24.	........	[1]	Fuse Holder	NSEP ORD AM108502
25.	19M7373	[4]	CAP SCREW	M5 X 20
26.	57M7121	[4]	Fuse	10 AMP
27.	99M7065	[2]	Fuse	15 AMP
28.	57M7120	[1]	Fuse	20 AMP
29.	M95413	[1]	Plate
30.	57M6277	[1]	Bulb
31.	L35162	[1]	Cap
32.	L40523	[1]	INSERT
...	R44302	[AR]	Tie Band	4.6 X 171 MM (0.18" X 6.75")
...	H77698	[AR]	Tie Band	4.7 X 360 MM (0.18" X 14.2")
