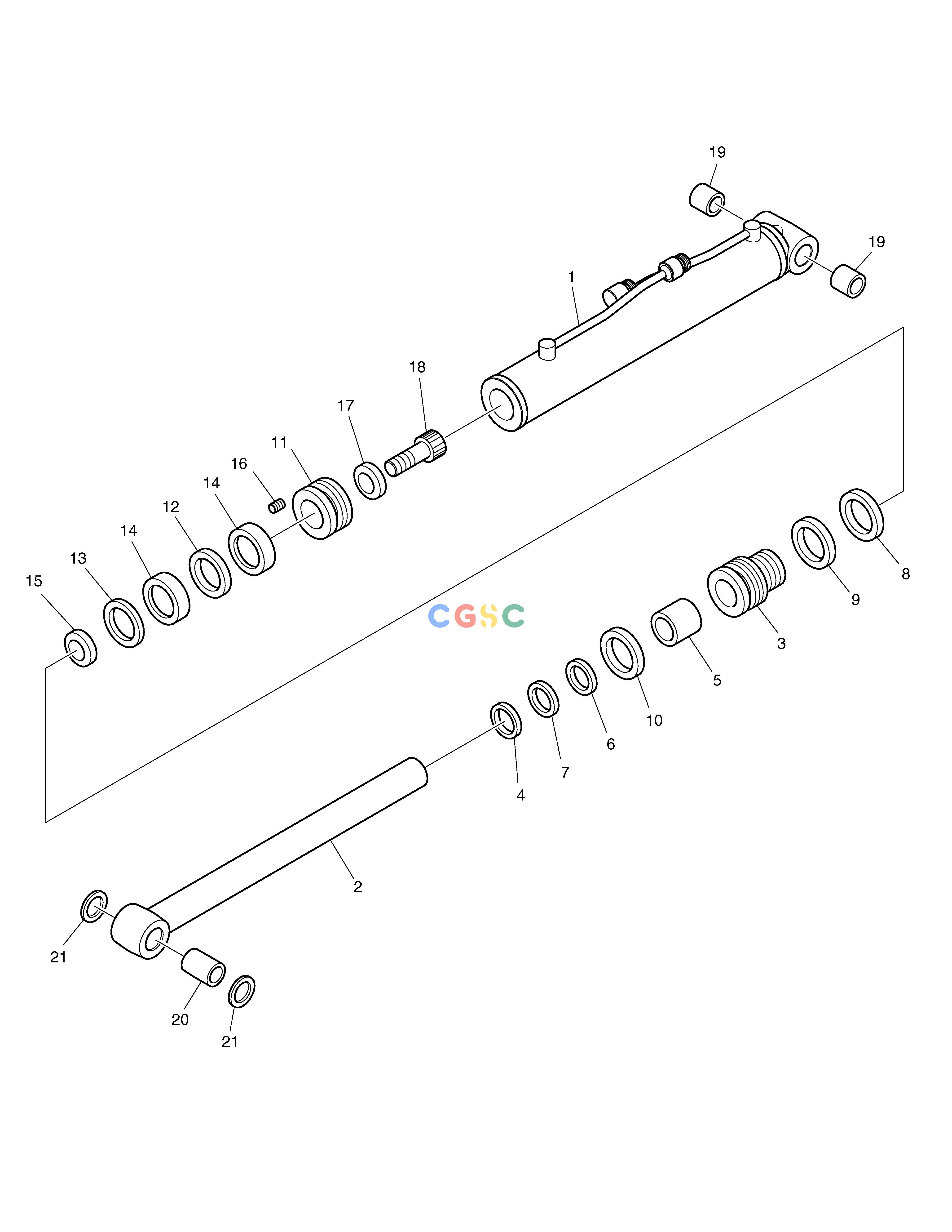

斗山零件查询BUCKET CYLINDER 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K1022632
|
[1] |
SEAL KIT
|
|
| -. |
K1022624
|
[2] |
CYLINDER;BUCKET
|
|
| 1. |
K1022633
|
[1] |
TUBE ASS'Y
|
|
| 10. |
K1022517
|
[1] |
WASHER
|
|
| 11. |
K1022629
|
[1] |
PISTON
|
|
| 12. |
NA01100
|
[1] |
. SEAL,SLIPPER
|
|
| 13. |
NA00993
|
[1] |
RING;WEAR
|
|
| 14. |
NA00993
|
[2] |
RING;WEAR
|
|
| 15. |
NA00643
|
[1] |
. O-RING
|
|
| 16. |
K1022611
|
[1] |
SET;SCREW
|
|
| 17. |
K1023160
|
[1] |
WASHER;HARD
|
|
| 18. |
K1022647
|
[1] |
BOLT;SOCKET
|
|
| 19. |
K1022573
|
[2] |
BUSH;DU
|
|
| 2. |
K1022627
|
[1] |
ROD ASS'Y
|
|
| 20. |
K1022639
|
[1] |
BUSH;DX
|
|
| 21. |
K1022586
|
[2] |
WIPER;PIN
|
|
| 3. |
K1022628
|
[1] |
COVER;ROD
|
|
| 4. |
NA01344
|
[1] |
|
|
| 5. |
K1022509
|
[1] |
BUSH
|
|
| 6. |
NA00740
|
[1] |
PACKING
|
|
| 7. |
NA00945
|
[1] |
|
|
| 8. |
NA00643
|
[1] |
. O-RING
|
|
| 9. |
NA00945
|
[1] |
|
|
