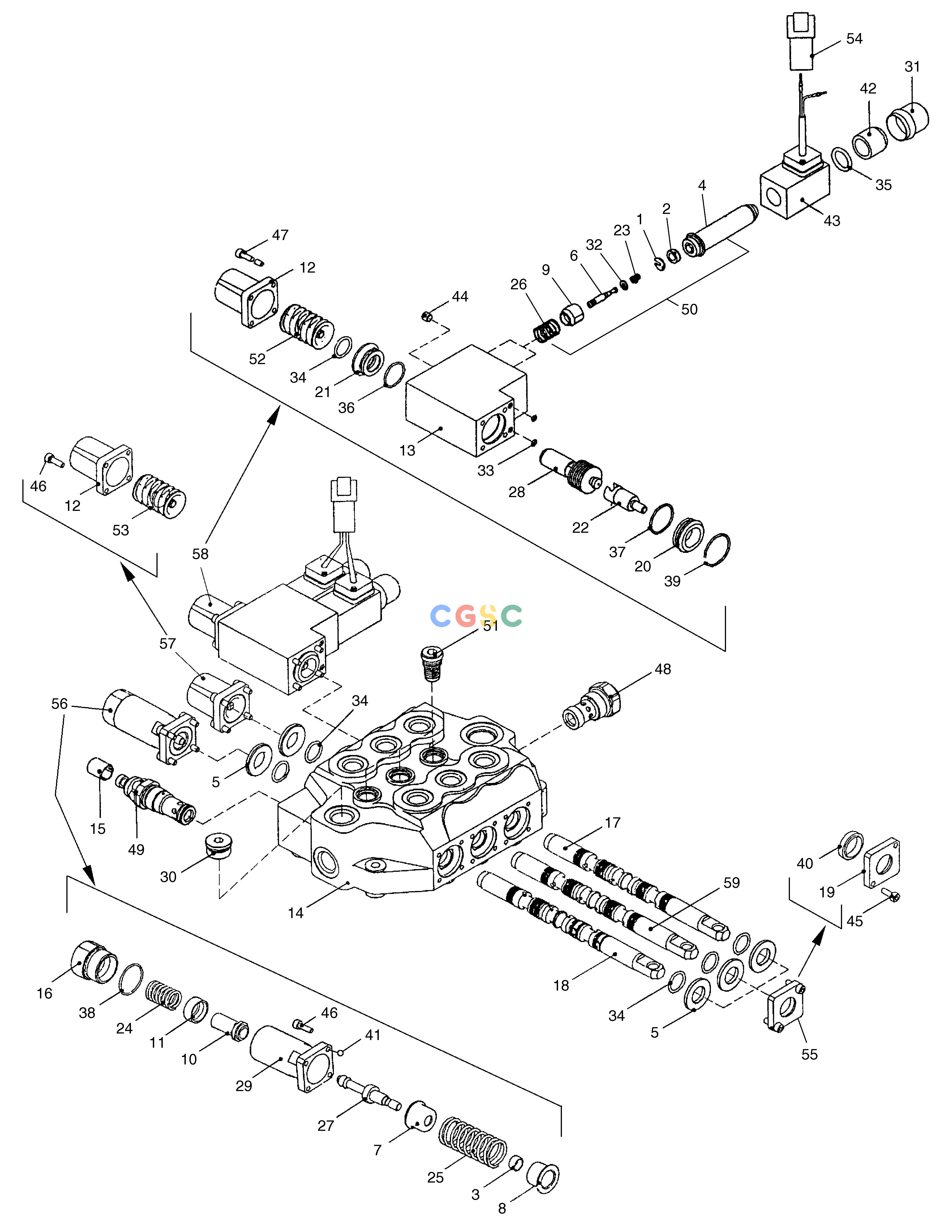

斗山零件查询CONTROL VALVE 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1020062
|
[1] |
CONTROL VALVE
|
|
| 1. |
NA00929
|
[2] |
RING
|
|
| 10. |
NA00263
|
[1] |
BUSHING
|
|
| 11. |
NA00929
|
[1] |
RING
|
|
| 12. |
K1022771
|
[2] |
CAP;END
|
|
| 13. |
NA00079
|
[1] |
BODY
|
|
| 14. |
NA00528
|
[1] |
CARTER
|
|
| 15. |
NA00524
|
[1] |
|
|
| 16. |
NA00392
|
[1] |
COUVERCLE
|
|
| 17. |
K1022781
|
[1] |
SPOOL
|
|
| 18. |
K1022792
|
[1] |
SPOOL;BOOM
|
|
| 19. |
NA00456
|
[3] |
FLANGE
|
|
| 2. |
NA00929
|
[2] |
RING
|
|
| 20. |
NA00456
|
[1] |
FLANGE
|
|
| 21. |
NA00456
|
[1] |
FLANGE
|
|
| 22. |
NA00565
|
[1] |
|
|
| 23. |
NA01182
|
[2] |
. SPRING
|
|
| 24. |
NA01182
|
[1] |
. SPRING
|
|
| 25. |
NA01182
|
[1] |
. SPRING
|
|
| 26. |
NA01182
|
[2] |
. SPRING
|
|
| 27. |
NA00752
|
[1] |
PIN
|
|
| 28. |
NA00796
|
[1] |
PISTON
|
|
| 29. |
NA00392
|
[1] |
COUVERCLE
|
|
| 3. |
NA01153
|
[1] |
SPACER
|
|
| 30. |
K1022779
|
[1] |
PLUG
|
|
| 31. |
K1022886
|
[2] |
BELLOWS;SOLENOID
|
|
| 32. |
NA00929
|
[2] |
RING
|
|
| 33. |
K1022887
|
[2] |
O-RING
|
|
| 34. |
K1022759
|
[6] |
O-RING
|
|
| 35. |
K1022888
|
[2] |
O-RING
|
|
| 36. |
K1022889
|
[1] |
O-RING
|
|
| 37. |
K1022890
|
[1] |
O-RING
|
|
| 38. |
NA00643
|
[1] |
. O-RING
|
|
| 39. |
K1022891
|
[1] |
O-RING
|
|
| 4. |
NA00752
|
[2] |
PIN
|
|
| 40. |
NA00397
|
[3] |
|
|
| 41. |
NA00018
|
[4] |
BALL
|
|
| 42. |
K1022892
|
[2] |
NUT;LOCK
|
|
| 43. |
K1022756
|
[2] |
COIL AMP PIN
|
|
| 44. |
K1022757
|
[1] |
SCREW
|
|
| 45. |
NA01040
|
[6] |
VIS
|
|
| 46. |
NA01040
|
[8] |
VIS
|
|
| 47. |
K1022893
|
[4] |
SCREW
|
|
| 48. |
K1022894
|
[1] |
VALVE;BACK PRESSURE
|
|
| 49. |
K1022895
|
[1] |
VALVE;MAIN RELIEF
|
|
| 5. |
K1022760
|
[5] |
RING
|
|
| 50. |
NA01281
|
[2] |
CABLE
|
|
| 51. |
K1022778
|
[3] |
VALVE;LOAD CHECK
|
|
| 52. |
K1022758
|
[1] |
SPOOL;CONTROL
|
|
| 53. |
NA01174
|
[1] |
|
|
| 54. |
K1022782
|
[1] |
DEUTCH CONNECTOR
|
|
| 55. |
K1022783
|
[1] |
DUST COVER ASS'Y
|
|
| 56. |
K1022784
|
[1] |
FLOAT DETENT SPOOL CONTROL
|
|
| 57. |
K1022785
|
[1] |
SPOOL CONTERING
|
|
| 58. |
K1022786
|
[1] |
VALVE;SOLENOID
|
|
| 59. |
K1022791
|
[1] |
SPOOL
|
|
| 6. |
NA00580
|
[2] |
|
|
| 7. |
NA00263
|
[1] |
BUSHING
|
|
| 8. |
NA00263
|
[1] |
BUSHING
|
|
| 9. |
NA00263
|
[2] |
BUSHING
|
|
