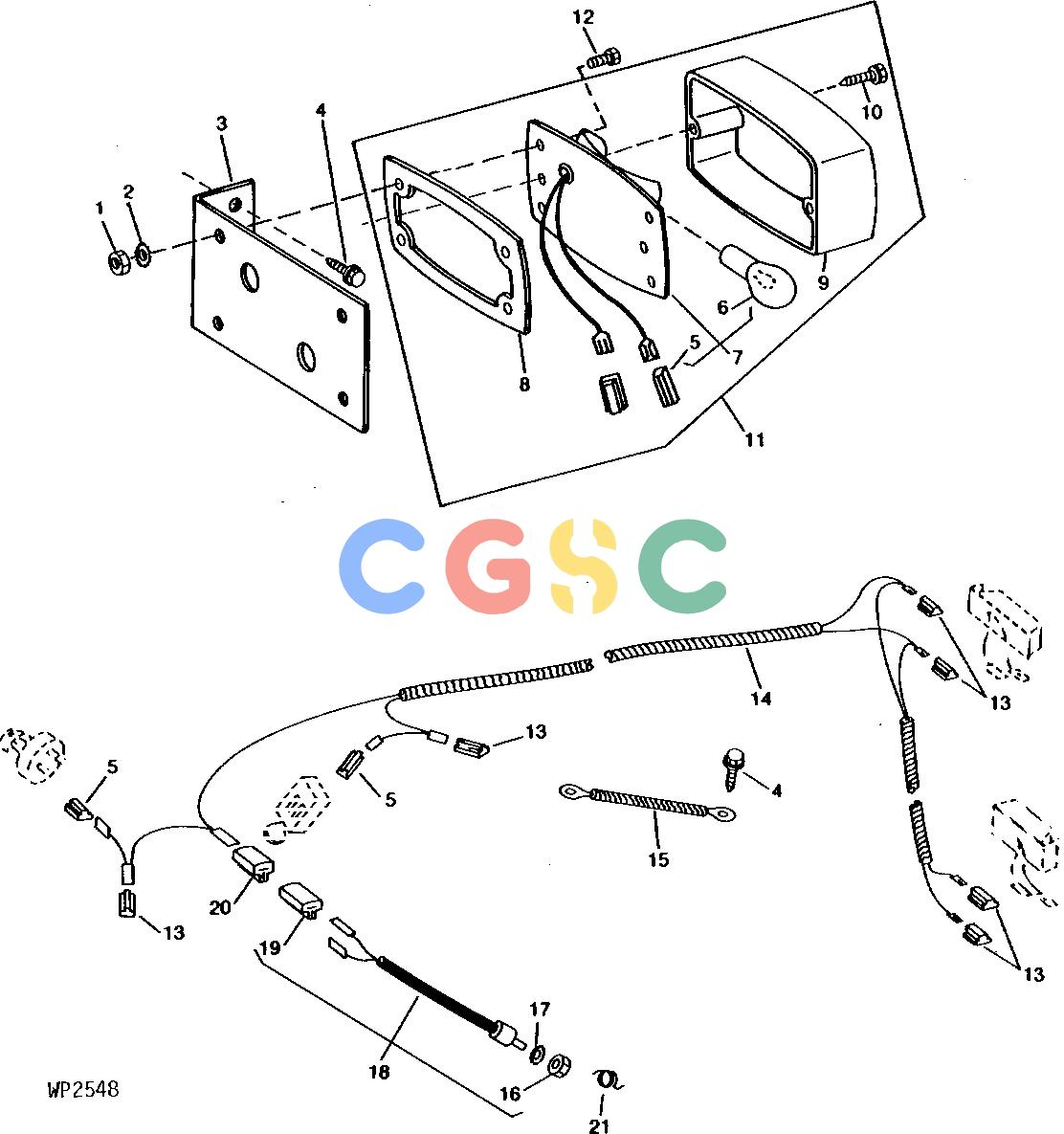

约翰迪尔零件查询622 - AMT STOP LIGHT KIT (NORTH AMERICAN VERSION) JEU DE FEUX STOP (VERSION POUR L'AMERIQUE DU NORD) BREMSLICHEPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14H1026
|
[8] |
NUT
|
|
| 2. |
12H297
|
[8] |
Lock Washer
|
|
| 3. |
W40603
|
[2] |
Bracket
|
|
| 4. |
37H129
|
[5] |
Screw
|
|
| 5. |
M43835
|
[4] |
ELECTRICAL CONNECTOR ASSY
|
|
| 6. |
AR48041
|
[2] |
Bulb
|
|
| 7. |
........
|
[2] |
Holder
|
|
| 8. |
W40750
|
[2] |
Gasket
|
|
| 9. |
........
|
[2] |
Lens
|
|
| 10. |
37M7198
|
[4] |
Screw
|
|
| 11. |
AW26899
|
[2] |
Stop Light
|
|
| 12. |
21H1308
|
[8] |
Screw
|
|
| 13. |
T28585
|
[6] |
ELECTRICAL CONNECTOR ASSY
|
|
| 14. |
AW26873
|
[1] |
WIRING HARNESS
|
|
| 15. |
AW26874
|
[1] |
WIRING HARNESS
|
|
| 16. |
........
|
[1] |
NUT
|
|
| 17. |
12M7081
|
[1] |
Lock Washer
|
|
| 18. |
AM116523
|
[1] |
Switch
|
|
| 19. |
T28586
|
[1] |
ELECTRICAL CONNECTOR ASSY
|
|
| 20. |
R77476
|
[1] |
ELECTRICAL CONNECTOR ASSY
|
|
| 21. |
W40612
|
[1] |
Torsion Spring
|
|
| ... |
R44302
|
[10] |
Tie Band
|
|
| ... |
AM116524
|
[1] |
TAIL LAMP
|
|
