约翰迪尔零件查询622 - AMT DIRECTION INDICATOR LIGHT KIT (NORTH AMERICAN VERSION) JEU D'INDICATEURS DE CHANGEMENT DE DIRECTION EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询622 - AMT DIRECTION INDICATOR LIGHT KIT (NORTH AMERICAN VERSION) JEU D'INDICATEURS DE CHANGEMENT DE DIRECTION EPC John Deere online

广数供应链运营团队, 14 02月, 2025，浏览： 320 次

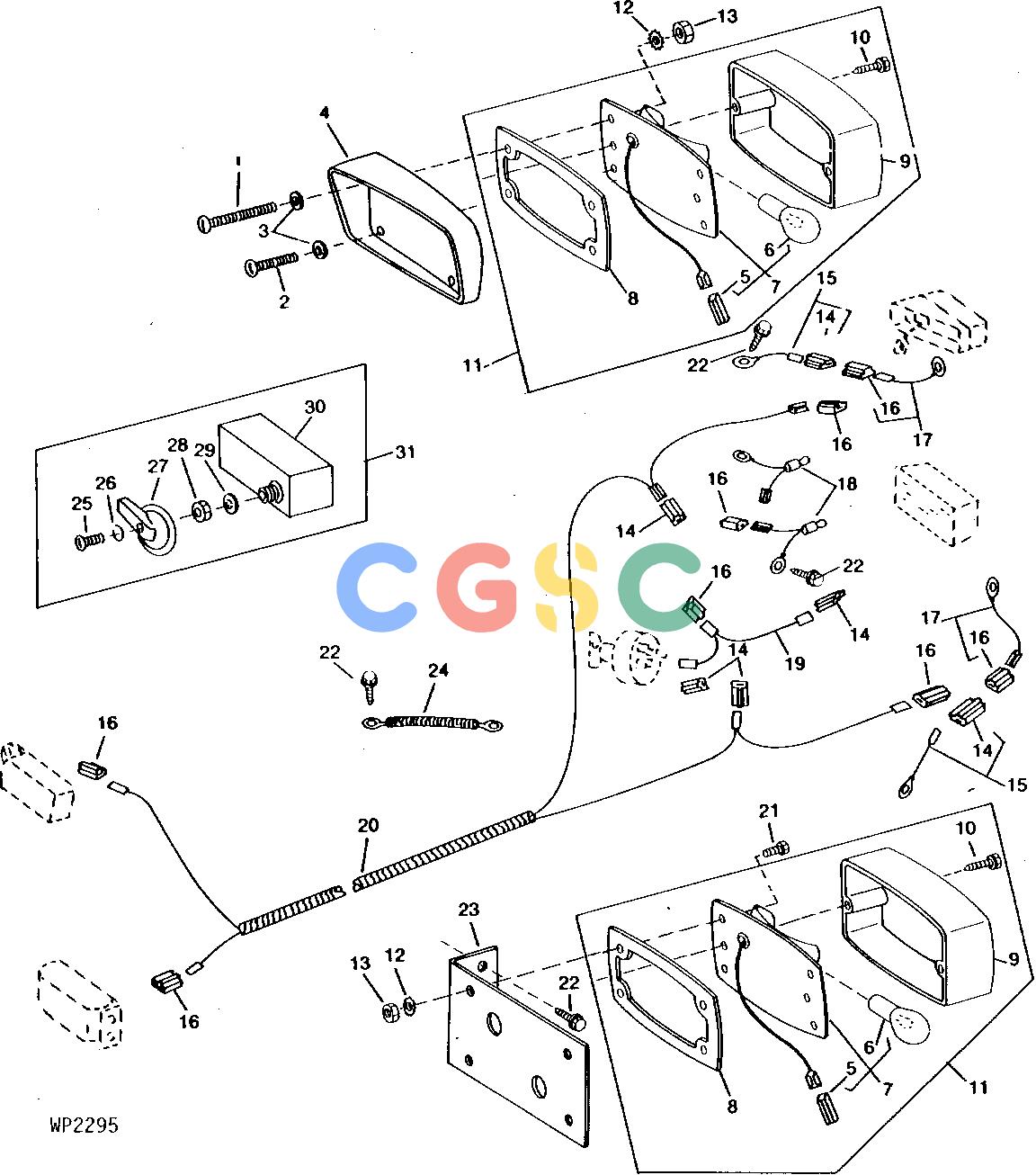

Pos.	Part No	Qty	Parts name	Comments
1.	21H1476	[4]	Screw	0.138" X 2"
2.	21H1185	[4]	Screw	0.138" X 1-1/4"
3.	24H1281	[8]	Washer	5/32" X 3/8" X 0.049"
4.	W40605	[1]	Support	L.H.
4.	W40606	[1]	Support	R.H.
5.	M43835	[4]	ELECTRICAL CONNECTOR ASSY
6.	AD2062R	[4]	Bulb	(GE 1156)
7.	........	[4]	Holder
8.	W40750	[4]	Gasket
9.	........	[4]	Lens
10.	37M7198	[8]	Screw
11.	AW26898	[4]	Turn Signal Lamp
12.	12H297	[8]	Lock Washer	1/4"
13.	14H1026	[8]	NUT	0.138"
14.	T28585	[6]	ELECTRICAL CONNECTOR ASSY
15.	AW26878	[2]	WIRING HARNESS
16.	M43835	[7]	ELECTRICAL CONNECTOR ASSY
17.	AW26879	[2]	WIRING HARNESS
18.	AW26907	[2]	Lamp	W/(1) T28585
19.	AW26875	[1]	WIRING HARNESS	W/(1) U46370 + (1) T28585
20.	AW26880	[1]	WIRING HARNESS	W/(4) T28585 + (2) U46370
21.	21H1308	[8]	Screw	0.138" X 3/8"
22.	37H129	[9]	Screw
23.	W40603	[2]	Bracket
24.	AW26874	[1]	WIRING HARNESS
25.	21H1372	[1]	Screw	1/8" X 3/8"
26.	12H233	[1]	Lock Washer	1/8"
27.	R56026	[1]	Knob
28.	R56410	[1]	NUT
29.	M91167	[1]	SPRING WASHER
30.	AR64422	[1]	Turn Signal Controller
31.	AR87054	[1]	Turn Signal Lamp
...	R44302	[10]	Tie Band	4.5 X 185 MM (0.18" X 7.3")
...	AW26902	[1]	KIT	INCL.KEYS 1 - 31
