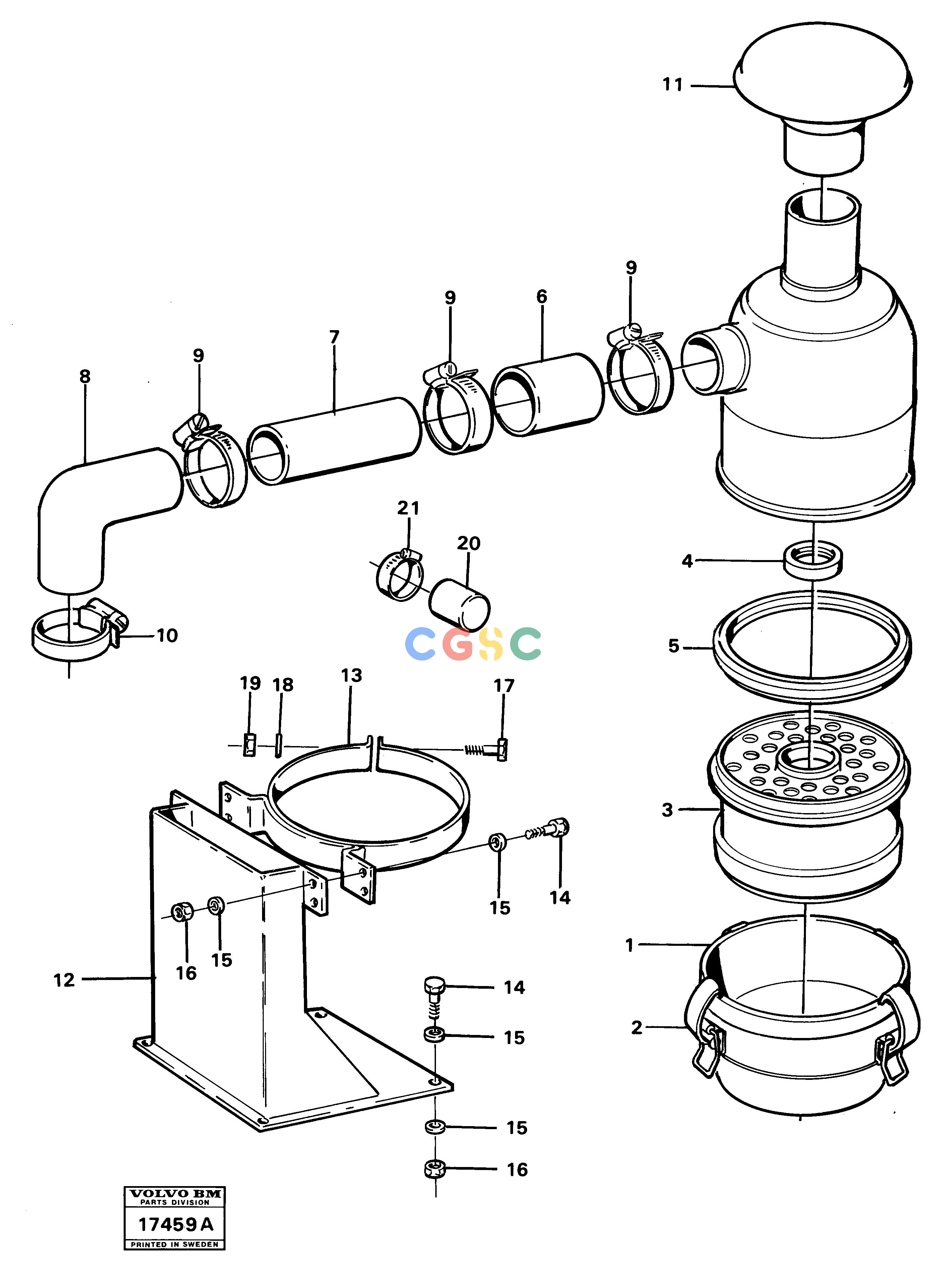

沃尔沃零件查询4300 Oil-bath filter 997664300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
|
[0001] |
Gasket
|
|
| 5. |
|
[0001] |
Gasket
|
|
| 6. |
VOE4771019
|
[0001] |
Rubber hose
|
|
| 7. |
|
[0001] |
Pipe
|
|
| 8. |
VOE824359
|
[0001] |
Connecting hook
|
|
| |
VOE4880365
|
[0001] |
Oil Bath Filter
|
|
| 9. |
VOE943484
|
[0003] |
Hose clamp
|
|
| 10. |
VOE943483
|
[0001] |
Hose clamp
|
|
| 11. |
VOE14525451
|
[0001] |
Rain cap
|
|
| 12. |
|
[0001] |
Bracket
|
|
| 13. |
|
[0001] |
Tensioning band
|
|
| 14. |
VOE13970948
|
[0008] |
Hexagon screw
|
|
| 15. |
VOE976945
|
[0016] |
Washer
|
|
| 16. |
VOE971071
|
[0008] |
Hexagon nut
|
|
| 17. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 18. |
VOE976945
|
[0002] |
Washer
|
|
| 1. |
VOE6210930
|
[0001] |
Oil reservoir
|
|
| 19. |
VOE926049
|
[0002] |
Nut
|
|
| 20. |
VOE4932563
|
[0002] |
Rubber bushing
|
SER NO 4769 -
|
| 21. |
VOE943475
|
[0002] |
Hose clamp
|
SER NO 4769 -
|
| 2. |
VOE6212135
|
[0004] |
Oil reservoir
|
|
| 3. |
VOE820050
|
[0001] |
Filter insert
|
|
