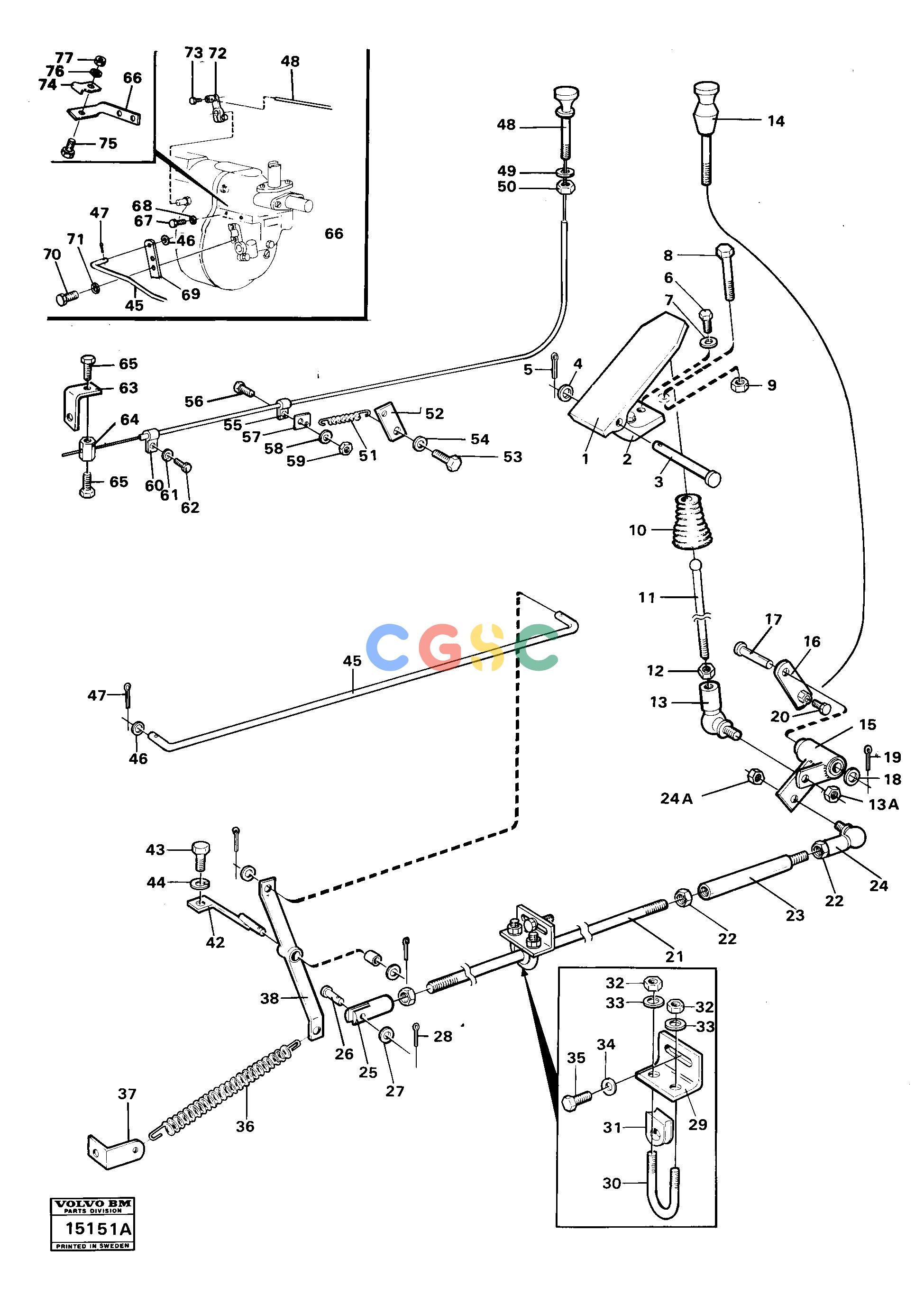

沃尔沃零件查询4300 Governor controls prod no 33100, 33105, 33106, 331074300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE60110353
|
[0001] |
Washer
|
|
| 45. |
VOE4925735
|
[0001] |
Pull rod
|
SER NO -2451
|
| |
VOE4929828
|
[0001] |
Pull rod
|
SER NO 2452 - 4147
|
| |
VOE4939244
|
[0001] |
Pull rod
|
SER NO 4148-
|
| 46. |
VOE955892
|
[0002] |
Plain washer
|
|
| 47. |
VOE907822
|
[0002] |
Split pin
|
|
| 48. |
VOE15140105
|
[0001] |
Wire control
|
TILLV NR-1025
|
| |
VOE15140105
|
[0001] |
Wire control
|
SER NO 1026-4147
|
| |
VOE15140105
|
[0001] |
Wire control
|
SER NO 4148-
|
| 49. |
VOE13940109
|
[0001] |
Lock washer
|
|
| 50. |
VOE940140
|
[0001] |
Hexagon nut
|
|
| 51. |
VOE767269
|
[0001] |
Spring
|
SER NO -2451
|
| |
VOE4929887
|
[0001] |
Compression spring
|
SER NO 2452-4147
|
| 52. |
|
[0001] |
Attachment
|
|
| 53. |
VOE955546
|
[0001] |
Hexagon screw
|
SER NO -2451
|
| 5. |
VOE13907856
|
[0001] |
Cotter Pin
|
|
| 54. |
VOE940147
|
[0001] |
Toothed washer
|
SER NO -2451
|
| 55. |
VOE7121563
|
[0001] |
Clamp
|
SER NO -2451
|
| 56. |
VOE955269
|
[0001] |
Hexagon screw
|
SER NO -2451
|
| 57. |
VOE4707860
|
[0001] |
Anchorage
|
SER NO -2451
|
| 58. |
VOE955948
|
[0001] |
Toothed washer
|
SER NO -2451
|
| 59. |
VOE13955781
|
[0001] |
Nut
|
SER NO -2451
|
| 60. |
VOE7121563
|
[0001] |
Clamp
|
SER NO -2451
|
| 61. |
VOE955946
|
[0001] |
Toothed washer
|
SER NO -2451
|
| 62. |
VOE950019
|
[0001] |
Cross recessed screw
|
SER NO -2451
|
| 63. |
|
[0001] |
Attachment
|
|
| |
VOE952622
|
[0001] |
Clamp
|
SER NO 2452-4147
|
| |
VOE955269
|
[0001] |
Hexagon screw
|
SER NO 2452-4147
|
| |
VOE13941906
|
[0001] |
Washer
|
SER NO 2452-4147
|
| |
VOE13955781
|
[0001] |
Nut
|
SER NO 2452-4147
|
| 6. |
VOE13955272
|
[0002] |
Screw
|
|
| 64. |
VOE715141
|
[0001] |
Anchorage
|
SER NO -2451
|
| 65. |
VOE13940102
|
[0002] |
Screw
|
SER NO -2451
|
| 66. |
|
[0001] |
Anchorage
|
|
| |
|
|
None
|
PROD NO 16307
|
| 67. |
VOE955269
|
[0002] |
Hexagon screw
|
PROD NO 16307
|
| 68. |
VOE13941906
|
[0002] |
Washer
|
PROD NO 16307
|
| 69. |
VOE4939282
|
[0001] |
Hand lever
|
PROD NO 16307
|
| 70. |
VOE13955271
|
[0002] |
Screw
|
PROD NO 16307
|
| 71. |
VOE13941906
|
[0002] |
Washer
|
PROD NO 16307
|
| 72. |
VOE955891
|
[0001] |
Plain washer
|
PROD NO 16307
|
| 73. |
VOE955637
|
[0002] |
Hexagon screw
|
PROD NO 16307
|
| 7. |
VOE955948
|
[0002] |
Toothed washer
|
|
| 74. |
VOE7018335
|
[0001] |
Clamp
|
PROD NO 16307
|
| 75. |
VOE955244
|
[0001] |
Hexagon screw
|
PROD NO 16307
|
| 76. |
VOE941905
|
[0001] |
Spring washer
|
PROD NO 16307
|
| 77. |
VOE955780
|
[0001] |
Hexagon nut
|
PROD NO 16307
|
| 8. |
VOE955304
|
[0001] |
Hexagon screw
|
|
| 1. |
VOE1598173
|
[0001] |
Accelerator pedal
|
|
| 9. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 10. |
VOE4951016
|
[0001] |
Sealing bellows
|
|
| 11. |
VOE13948512
|
[0001] |
Control rod
|
|
| 12. |
VOE13955781
|
[0001] |
Nut
|
|
| 13. |
VOE959079
|
[0001] |
Angle ball joint
|
|
| 13A. |
VOE946035
|
[0001] |
Lock nut
|
|
| 14. |
VOE1571492
|
[0001] |
Control
|
|
| 15. |
VOE4974566
|
[0001] |
Hand lever
|
|
| 16. |
VOE4926103
|
[0001] |
Hand lever
|
|
| 17. |
VOE191240
|
[0001] |
Bolt
|
|
| 2. |
VOE324714
|
[0001] |
Attaching bracket
|
|
| 18. |
VOE60110353
|
[0001] |
Washer
|
|
| 19. |
VOE13907856
|
[0001] |
Cotter Pin
|
|
| 20. |
VOE955269
|
[0001] |
Hexagon screw
|
|
| 21. |
VOE4928264
|
[0001] |
Pull rod
|
|
| 22. |
VOE13955781
|
[0003] |
Nut
|
|
| 23. |
VOE4925728
|
[0001] |
Adjusting screw
|
|
| 24. |
VOE959079
|
[0001] |
Angle ball joint
|
|
| 24A. |
VOE946035
|
[0001] |
Lock nut
|
|
| |
VOE1588548
|
[0002] |
Bushing
|
|
| 25. |
VOE961786
|
[0001] |
Clevis
|
|
| 26. |
VOE913112
|
[0001] |
Clevis pin
|
|
| 27. |
VOE955892
|
[0001] |
Plain washer
|
|
| 28. |
VOE907822
|
[0001] |
Split pin
|
|
| 29. |
VOE4926115
|
[0001] |
Bracket
|
|
| 30. |
VOE4739981
|
[0001] |
Clamp
|
|
| 31. |
VOE351524
|
[0001] |
Bushing
|
|
| 32. |
VOE946035
|
[0002] |
Lock nut
|
|
| 33. |
VOE955892
|
[0002] |
Plain washer
|
|
| 34. |
VOE13955894
|
[0001] |
Washer
|
|
| 3. |
VOE191240
|
[0001] |
Bolt
|
|
| 35. |
VOE940199
|
[0001] |
Hexagon screw
|
|
| 36. |
VOE11180052
|
[0001] |
Spring
|
|
| 37. |
|
[0001] |
Attachment
|
|
| 38. |
VOE4947874
|
[0001] |
Hand lever
|
|
| 39. |
VOE1588548
|
[0002] |
Bushing
|
|
| 40. |
VOE60110353
|
[0001] |
Washer
|
|
| 41. |
VOE13907856
|
[0001] |
Cotter Pin
|
|
| 42. |
VOE4925732
|
[0001] |
Brg Arrangement
|
|
| 43. |
VOE955562
|
[0002] |
Hexagon screw
|
|
| 44. |
VOE940280
|
[0002] |
Spring washer
|
|
