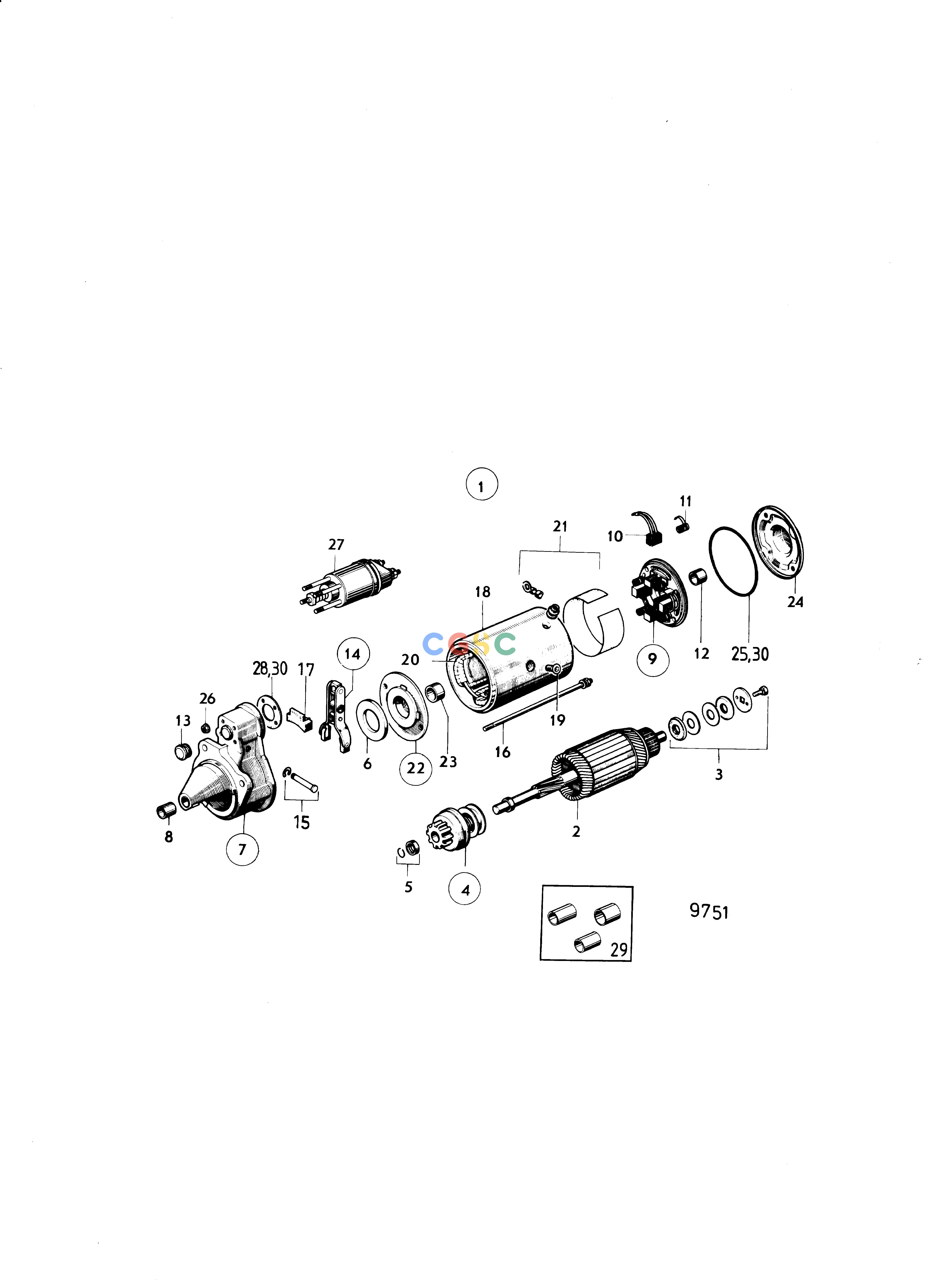

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemStarter 1-poleEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829527
|
[1] |
Starter motor
|
Also available as an exchange part., 12V
|
| 2. |
834843
|
[1] |
Rotor
|
|
| 3. |
858936
|
[1] |
Repair kit
|
|
| 4. |
834845
|
[1] |
Starter pinion
|
|
| 5. |
829012
|
[1] |
Set
|
|
| 6. |
834799
|
[1] |
Washer
|
|
| 7. |
834846
|
[1] |
Bearing cover
|
|
| 8. |
818147
|
[1] |
Bushing
|
Replaced by bushing kit 859197.
|
| 9. |
834849
|
[1] |
Armature bearing
|
|
| 10. |
858946
|
[1] |
Brush set
|
(834853)
|
| 11. |
834854
|
[1] |
Spring kit
|
Included in kit 858946.
|
| 12. |
818162
|
[1] |
Bushing
|
Replaced by bushing kit 859197.
|
| 13. |
826964
|
[1] |
Bellows
|
|
| 14. |
859204
|
[1] |
Engagement lever
|
(829023)
|
| 15. |
829024
|
[1] |
Shaft
|
Included in kit 858936., Repl by 859204
|
| 16. |
834850
|
[1] |
Screw kit
|
|
| 17. |
834851
|
[1] |
Seal
|
|
| 18. |
|
|
|
|
| 19. |
818157
|
[4] |
Screw
|
Repl by 859200
|
| 19. |
859200
|
[1] |
Screw kit
|
Repl by 859550
|
| 19. |
859550
|
[1] |
Screw
|
|
| 20. |
834847
|
[1] |
Field winding
|
|
| 21. |
834848
|
[1] |
Insulating kit
|
|
| 22. |
834803
|
[1] |
Intermediate bearing
|
|
| 23. |
834806
|
[1] |
Bushing
|
Replaced by bushing kit 859197.
|
| 24. |
829017
|
[1] |
Protecting cover
|
|
| 25. |
826986
|
[1] |
Gasket
|
Replaced by repair kit 860007 (859203)
|
| 26. |
965483
|
[1] |
Flange nut
|
(829031)
|
| 27. |
834852
|
[1] |
Actuator solenoid
|
|
| 28. |
834805
|
[1] |
Gasket
|
Replaced by repair kit 860007 (859203)
|
| 29. |
859197
|
[1] |
Bushing kit
|
|
| 30. |
860007
|
[1] |
Repair kit
|
(859203)
|
