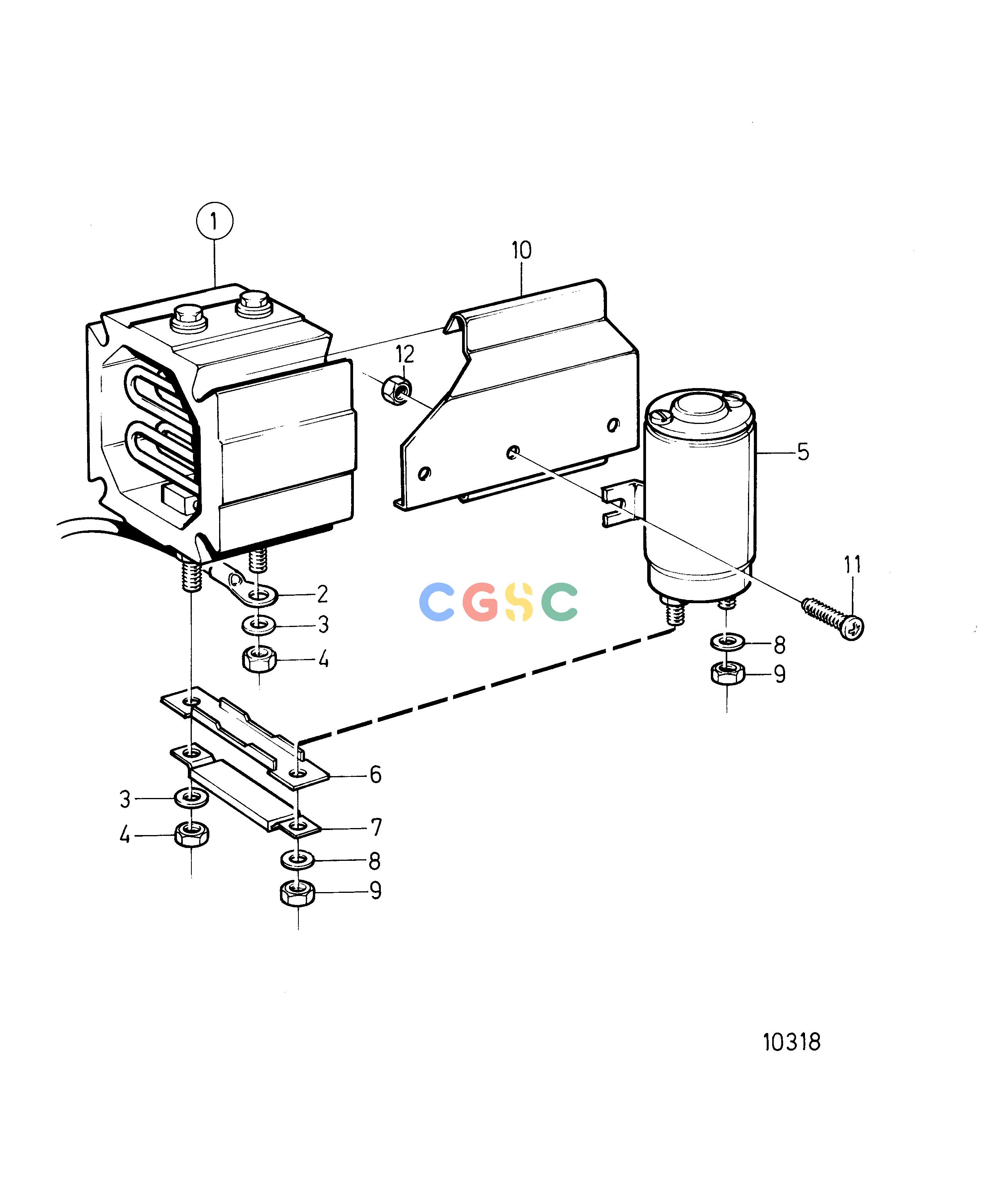

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemStarter Element and Relay with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
562 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863377
|
[1] |
Heater
|
12V
|
| 2. |
|
|
|
|
| 3. |
955894
|
[2] |
Washer
|
|
| 4. |
17624
|
[2] |
Hexagon nut
|
|
| 5. |
1577375
|
[1] |
Relay
|
12V/150A, Replaced by 1pc relay 872242, 2pcs cabel terminal 881493 and 1pc attaching plate 866463.
|
| 5. |
872242
|
[1] |
Relay
|
|
| 6. |
471477
|
[1] |
Fuse
|
|
| 7. |
421692
|
[1] |
Support
|
|
| 8. |
942767
|
[2] |
Toothed washer
|
|
| 9. |
945408
|
[2] |
Flange nut
|
|
| 10. |
866463
|
[1] |
Attaching plate
|
|
| 11. |
955243
|
[2] |
Hexagon screw
|
|
| 12. |
963104
|
[2] |
Lock nut
|
|
