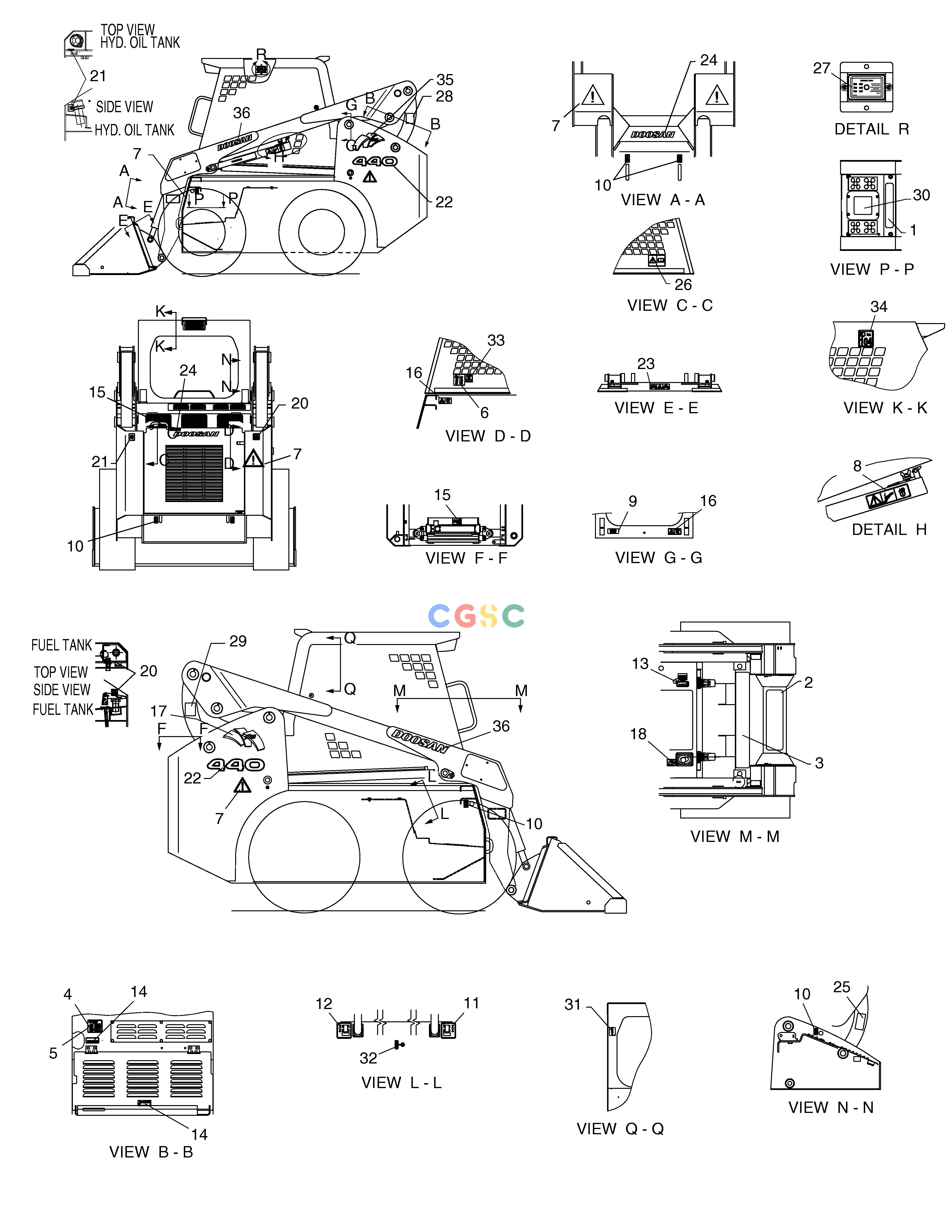

斗山零件查询NAME PLATE-CE 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023425A
|
[-] |
NAME PLATE ASS'Y
|
|
| 1. |
K1019962
|
[1] |
PLATE;ANTI SKID
|
|
| 10. |
K1020027
|
[8] |
FILM;SYMBOL
|
|
| 11. |
K1020024
|
[1] |
FILM;LH LEVER
|
|
| 12. |
K1020025
|
[1] |
FILM;RH LEVER
|
|
| 13. |
K1020019
|
[1] |
FILM;THROTTLE LEVER
|
|
| 14. |
K1020016
|
[2] |
FILM;HOT SURFACES
|
|
| 15. |
K1020015
|
[2] |
FILM;CRUSHING HAZARDS
|
|
| 16. |
K1020020
|
[2] |
FILM;CANOPY LOCK
|
|
| 17. |
K1021654
|
[1] |
FILM;NAME
|
|
| 18. |
K1020549
|
[1] |
DECAL;PARK BRAKE
|
|
| 2. |
K1020544
|
[1] |
PLATE;ANTI SKID
|
|
| 20. |
K1020026
|
[2] |
FILM;DIESEL
|
|
| 21. |
K1020028
|
[2] |
FILM;HYD OIL
|
|
| 22. |
K1021657
|
[2] |
FILM;440
|
|
| 23. |
K1020018
|
[1] |
FILM;LATCHES ENGAGED
|
|
| 24. |
K1022129
|
[2] |
FILM;DOOSAN
|
|
| 25. |
K1020815
|
[2] |
FILM;PINCH WARNING
|
|
| 26. |
K1020017
|
[1] |
FILM
|
|
| 27. |
K1021883
|
[1] |
FILM;FUSE DIAGRAM
|
|
| 28. |
K1020569
|
[1] |
FILM;LEFT HAND WARNING
|
|
| 29. |
K1020570
|
[1] |
FILM;RIGHT HAND WARNING
|
|
| 3. |
K1020545
|
[1] |
PLATE;ANTI SKID
|
|
| 30. |
K1020722
|
[1] |
PLATE;ANTI SKID
|
|
| 31. |
K1019641
|
[1] |
FILM;EXTINGUISHER
|
|
| 32. |
K1019088
|
[1] |
FILM;MASTER DISC SW
|
|
| 33. |
K1019820
|
[1] |
FILM;ET
|
|
| 34. |
K1021487
|
[1] |
FILM;LWA
|
|
| 35. |
K1021653
|
[1] |
FILM;NAME
|
|
| 36. |
K1022128
|
[2] |
FILM;DOOSAN
|
|
| 4. |
K1019757
|
[2] |
RIVET
|
|
| 5. |
K1022130A
|
[1] |
PLATE;NAME;CE
|
|
| 6. |
K1019987
|
[1] |
FILM;PEDAL OPERATING
|
|
| 7. |
K1020022
|
[6] |
FILM;ATTENTION
|
|
| 8. |
K1020023
|
[1] |
FILM;BOOM LOCK
|
|
| 9. |
K1022131
|
[1] |
DECAL;FOPS/ROPS
|
|
