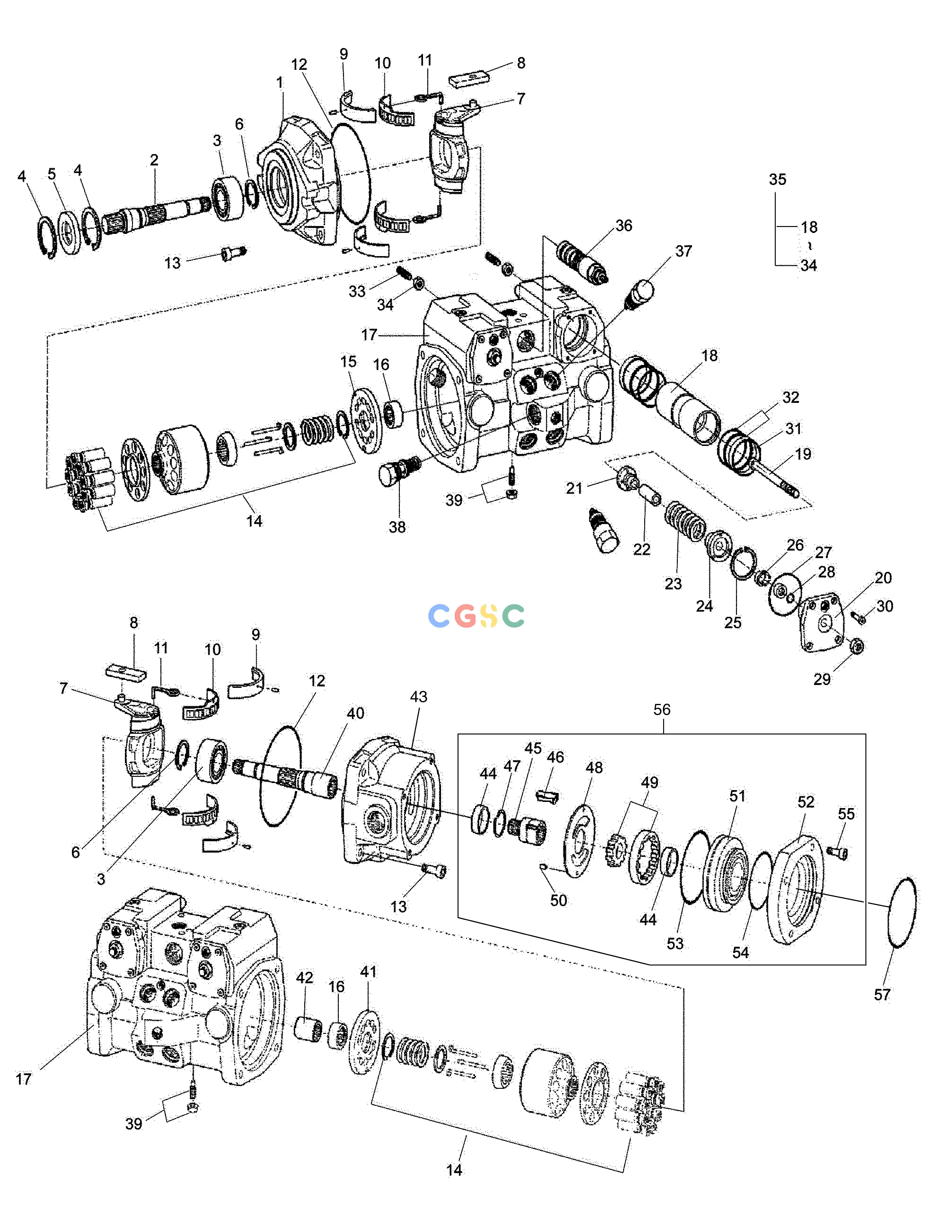

斗山零件查询HST PUMP-JOYSTICK 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1022797A
|
[1] |
PUMP;HST
|
K1022797B
|
| -. |
K1022797B
|
[1] |
PUMP;HST
|
|
| -. |
K1022797
|
[1] |
PUMP;HST
|
K1022797A
|
| 1. |
K1022809
|
[1] |
FLANGE;BEARING
|
|
| 10. |
K1022818
|
[2] |
BEARING;CRADLE
|
|
| 11. |
K1022819
|
[4] |
COIL;WIRE WITH
|
|
| 12. |
K1022820
|
[2] |
O-RING
|
|
| 13. |
K1022821
|
[8] |
SCREW
|
|
| 14. |
K1022822
|
[2] |
GROUP;ROTARY
|
|
| 15. |
K1022823
|
[1] |
CONTROL PLATE-R
|
|
| 16. |
K1022824
|
[2] |
BEARING;ROLLER
|
|
| 17. |
NA00539
|
[1] |
|
|
| 18. |
K1022826
|
[2] |
PISTON;POSITIONING
|
|
| 19. |
K1022827
|
[2] |
ROD
|
|
| 2. |
K1022810
|
[1] |
SHAFT;DRIVE
|
|
| 20. |
K1022828
|
[2] |
COVER
|
|
| 21. |
K1022829
|
[2] |
COLLAR;SPRING
|
|
| 22. |
K1022830
|
[2] |
BUSH;SPACER
|
|
| 23. |
K1022831
|
[2] |
SPRING;PRESSURE
|
|
| 24. |
K1022832
|
[2] |
COLLAR;SPRING
|
|
| 25. |
K1022833
|
[2] |
RING;RETAINING
|
|
| 26. |
K1022834
|
[2] |
RING
|
|
| 27. |
K1022835
|
[2] |
O-RING
|
|
| 28. |
K1022836
|
[2] |
O-RING
|
|
| 29. |
K1022837
|
[2] |
NUT;HEXAGON
|
|
| 3. |
K1022811
|
[2] |
BEARING;ROLLER
|
|
| 30. |
K1022838
|
[8] |
SCREW
|
|
| 31. |
K1022839
|
[4] |
RING;GUIDE
|
|
| 32. |
K1022840
|
[4] |
KIT;ROD SEAL
|
|
| 33. |
K1022841
|
[4] |
PIN;THREADED
|
|
| 34. |
K1022842
|
[4] |
NUT;SEAL LOCK
|
|
| 35. |
K1022843
|
[2] |
CONTROL;HYD KIT
|
|
| 36. |
K1022844
|
[1] |
CARTRIDGE;CONTROL
|
|
| 37. |
K1022845
|
[4] |
VALVE;MAIN RELIEF
|
|
| 38. |
K1022846
|
[1] |
VALVE;CHARGE RELIEF
|
|
| 39. |
K1022847
|
[2] |
SCREW;ECCENTRIC
|
|
| 4. |
K1022812
|
[3] |
RING;SEEGER
|
|
| 40. |
K1022848
|
[1] |
DRIVE SHAFT-R
|
|
| 41. |
K1022849
|
[1] |
CONTROL PLATE-L
|
|
| 42. |
K1022850
|
[1] |
COUPLING
|
|
| 43. |
NA00457
|
[1] |
|
|
| 44. |
K1022852
|
[1] |
BUSHING
|
|
| 45. |
K1022853
|
[1] |
COUPLING
|
|
| 46. |
K1022855
|
[1] |
KEY;SHAFT
|
|
| 47. |
K1022856
|
[1] |
RING;SNAP
|
|
| 48. |
K1022857
|
[1] |
PLATE;WEAR
|
|
| 49. |
K1022858
|
[1] |
SET;WHEEL
|
|
| 5. |
K1022813
|
[1] |
RING;SHAFT SEAL
|
|
| 50. |
K1022859
|
[1] |
PIN;CYLINDER
|
|
| 51. |
K1022860
|
[1] |
HOUSING
|
|
| 52. |
K1022861
|
[1] |
PLATE;INTER
|
|
| 53. |
K1022862
|
[1] |
O-RING
|
|
| 54. |
K1022863
|
[1] |
O-RING
|
|
| 55. |
K1022864
|
[4] |
SCREW
|
|
| 56. |
K1022866
|
[1] |
KIT;GEAR PUMP
|
|
| 57. |
K1022867
|
[1] |
O-RING
|
|
| 6. |
K1022814
|
[2] |
RING;RETAINING
|
|
| 7. |
K1022815
|
[2] |
CRADLE
|
|
| 8. |
K1022816
|
[2] |
RING;SLIDE
|
|
| 9. |
K1022817
|
[2] |
LINER;BEARING
|
|
