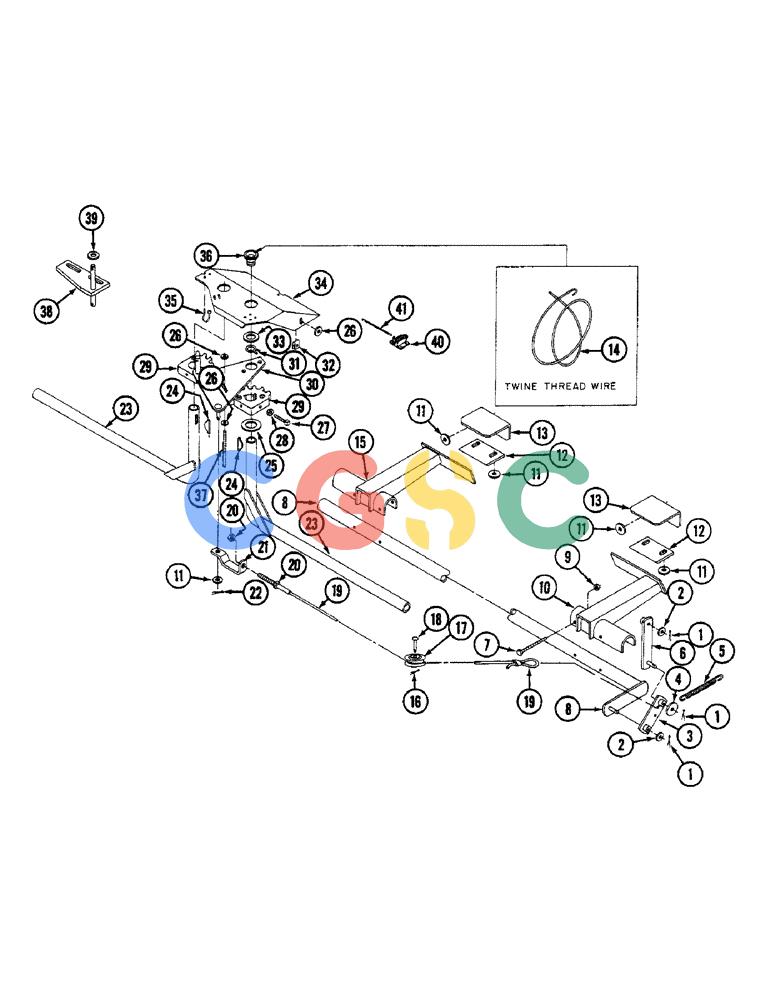

| 1. |
432-1216
|
[3] |
COTTER PIN,3/16" x 1"
|
CAS
Pin, Split (Cotter), 3/16" x 1"
|
| 2. |
21883R1
|
[2] |
WASHER
|
IH
- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm) Superseded by part number: 632076R1
|
| 3. |
ZA105518
|
[1] |
STRAP
|
IH
- bottom
|
| 4. |
22042R1
|
[1] |
WASHER
|
IH
- flat, 17/32 x 2 x 1/8 inch (13 x 25 x 3 mm) Superseded by part number: 495-91167
|
| 5. |
1281008C1
|
[1] |
SPRING
|
IH
- extension
|
| 6. |
ZA105516
|
[1] |
STRAP
|
IH
- top
|
| 7. |
24621R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8
|
IH
Superseded by part number: 326-636
|
| 8. |
ZA104890
|
[1] |
PIPE
|
IH
|
| 9. |
9413979
|
[4] |
LOCK NUT,3/8"-16, GC
|
IH
NUT - hex lock, 3/8 NC Type 8 Superseded by part number: 232-4136
|
| 10. |
ZA104837
|
[1] |
STOP
|
IH
CUT OFF - left
|
| 11. |
118775
|
[5] |
WASHER,3/8" x 13/16" x .065"
|
IH
- flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm) Superseded by part number: 87613282
|
| 12. |
ZA104892
|
[2] |
KNIFE
|
IH
|
| . . |
550796R1
|
[4] |
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
|
IH
BOLT - round head square neck, 3/8 x 1-1/4 Type 1 Superseded by part number: 86508749
|
| 13. |
ZA104862
|
[2] |
HOLDER
|
IH
- twine
|
| . . |
495967R1
|
[2] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
|
IH
BOLT - round head square neck, 3/8 NC x 1 inch Superseded by part number: 80280503
|
| 14. |
ZA104769
|
[1] |
ELECTRICAL WIRE
|
IH
WIRE - twine thread (Replaces ZA104628)
|
| 15. |
ZA104836
|
[1] |
STOP
|
IH
CUT OFF - right
|
| 16. |
103386
|
[1] |
COTTER PIN,1/8" x 1 1/4"
|
IH
Pin, Split (Cotter), 1/8" x 1 1/4" Superseded by part number: 87395
|
| 17. |
ZA206636
|
[1] |
PULLEY
|
IH
|
| 18. |
22635R1
|
[1] |
HEADED PIN,1/2" x 1 1/4"
|
IH
PIN, HEADED, 1/2 x 1 1/4 inch Superseded by part number: 439-1820
|
| 19. |
ZA105513
|
[1] |
CABLE
|
IH
|
| 20. |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
- hex, 5/16 inch NC Superseded by part number: 280136
|
| 21. |
ZA104703
|
[1] |
ANCHOR
|
IH
- cable
|
| 22. |
103385
|
[1] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| 23. |
ZA104753
|
[2] |
TUBE
|
IH
|
| 24. |
96317C1
|
[2] |
KEY
|
IH
- hi pro, 1/4 x 1-1/8 inch
|
| 25. |
20885R1
|
[2] |
WASHER
|
IH
- flat, 1-5/32 x 2 x 1/16 inch (29 x 50 x 1 mm) Superseded by part number: 86624175
|
| 26. |
611344R1
|
[4] |
WASHER
|
IH
- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm) Superseded by part number: 495-61034
|
| 27. |
21407R1
|
[4] |
SCREW
|
CAS
- square head cup point set, 3/8 NC x 1-1/4 inch Superseded by part number: 87532
|
| 28. |
124829
|
[4] |
JAM NUT,Hex, 3/8" - 16, Gr 5
|
IH
Superseded by part number: 329-146
|
| 29. |
ZA104729
|
[2] |
GEAR
|
IH
- 6 teeth
|
| 30. |
ZA105646
|
[1] |
PLATE
|
IH
- pivot (Replaces ZA104758)
|
| . . |
180122
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
IH
- hex, 3/8 NC x 1 inch Superseded by part number: 113-207
|
| 31. |
274085R91
|
[2] |
HOSE CLAMP,#10, 0.56/1.06 Type F Worm
|
IH
CLAMP - hose, No. 10 Type F Superseded by part number: 87625624
|
| 32. |
488837C1
|
[2] |
SPRING NUT
|
IH
- speed
|
| 33. |
591715R1
|
[4] |
WASHER
|
IH
- flat, 1-1/32 x 1-5/8 x 1/16 inch (26 x 41 x 1 mm) Superseded by part number: 86624169
|
| 34. |
ZA104861
|
[1] |
SHIELD
|
IH
|
| . . |
180077
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
- hex, 5/16 NC x 3/4 inch Superseded by part number: 87872
|
| 35. |
533959R1
|
[1] |
CABLE TIE,.135" x 11"
|
IH
TIE - hose Superseded by part number: 529070
|
| 36. |
ZA104633
|
[2] |
GUIDE
|
IH
|
| 37. |
489377R1
|
[1] |
STUD - 5/16 NC x 4 inch
|
|
| . . |
120393
|
[2] |
BEARING WASHER,5/16", SAE
|
IH
WASHER - flat, 11/32 x 11/16 x 3/64 inch (8 x 17 x 1 mm) Superseded by part number: 28588R1
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| 38. |
ZA105769
|
[1] |
BRACKET
|
CAS
- actuator
|
| 39. |
25710R1
|
[1] |
WASHER
|
IH
- flat hardened, 17/32 x 1-1/16 x 1/8 inch (13 x 26 x 3 mm) Superseded by part number: 86624188
|
| 40. |
REF
|
[1] |
INSTRUCTION
|
NH
COUNTER - bale (See Page 81)
|
| 41. |
495525R1
|
[1] |
SPRING
|
IH
|
