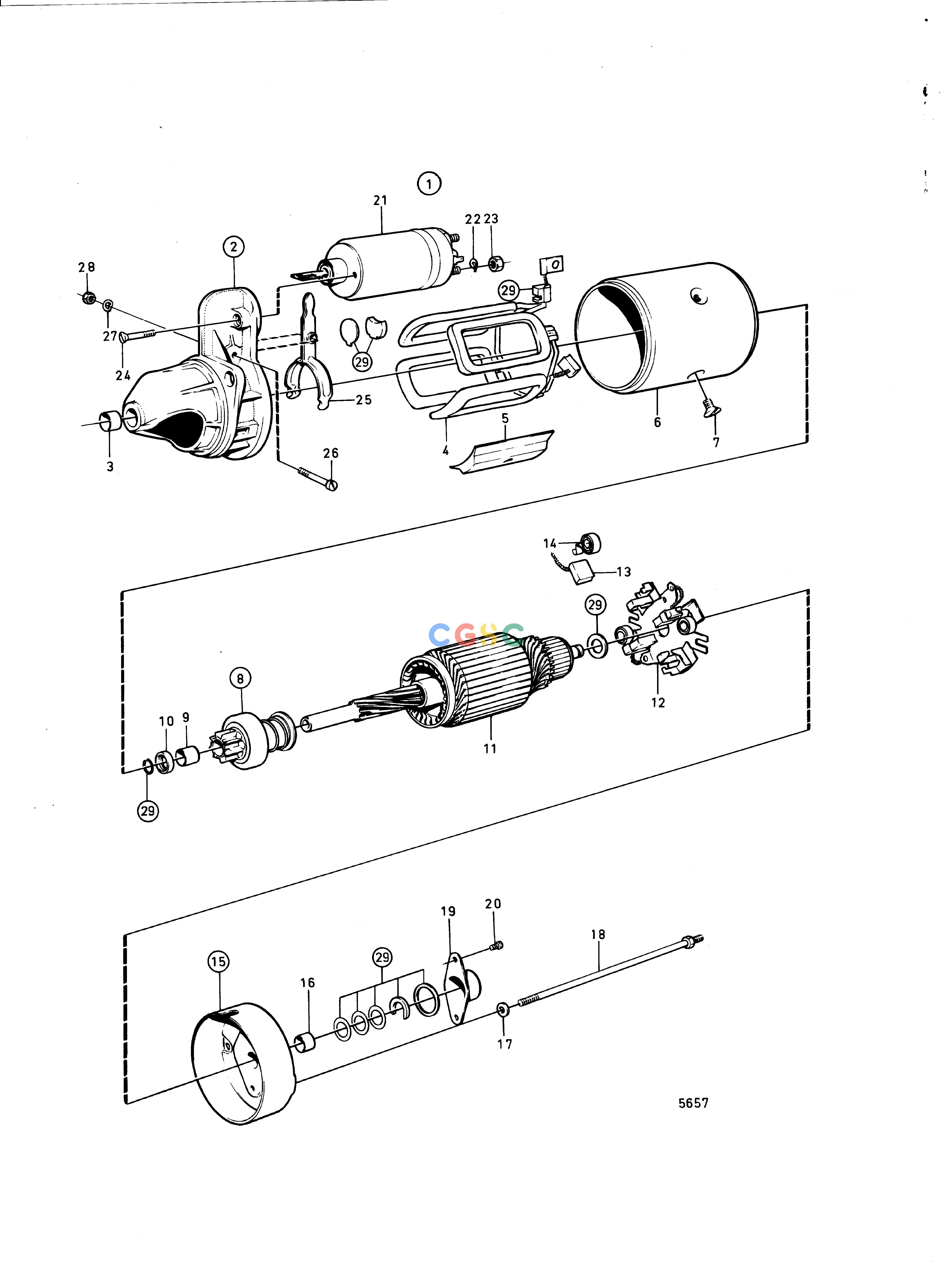

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
875 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
834339
|
[1] |
Starter motor
|
12V
|
| 1. |
3803074
|
[1] |
Starter motor, exch
|
12V
|
| 2. |
834517
|
[1] |
Drive bearing
|
|
| 3. |
3101977
|
[1] |
Bearing bushing
|
|
| 4. |
243906
|
[1] |
Field winding
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
956130
|
[4] |
Cross recessed screw
|
|
| 8. |
1266673
|
[1] |
Starter pinion
|
|
| 9. |
240620
|
[2] |
Bushing
|
|
| 10. |
238819
|
[1] |
Stop ring
|
|
| 11. |
243908
|
[1] |
Rotor
|
|
| 12. |
841189
|
[1] |
Brush retainer
|
|
| 13. |
243910
|
[1] |
Brush set
|
|
| 14. |
834519
|
[4] |
Spring
|
|
| 15. |
240601
|
[1] |
Bearing shield
|
|
| 16. |
240602
|
[1] |
Bushing
|
|
| 17. |
86287
|
[2] |
Washer
|
|
| 18. |
243912
|
[2] |
Screw
|
|
| 19. |
240606
|
[1] |
Cover
|
|
| 20. |
956059
|
[2] |
Cross recessed screw
|
|
| 21. |
244184
|
[1] |
Actuator solenoid
|
|
| 22. |
941907
|
[2] |
Spring washer
|
|
| 23. |
955782
|
[1] |
Hexagon nut
|
|
| 24. |
243914
|
[2] |
Screw
|
|
| 25. |
833727
|
[1] |
Engagement lever
|
|
| 26. |
241674
|
[1] |
Screw
|
|
| 27. |
941906
|
[1] |
Spring washer
|
|
| 28. |
955781
|
[1] |
Hexagon nut
|
|
| 29. |
241300
|
[1] |
Repair kit
|
|
