斗山零件查询ADDITIONAL LAMP 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
351 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

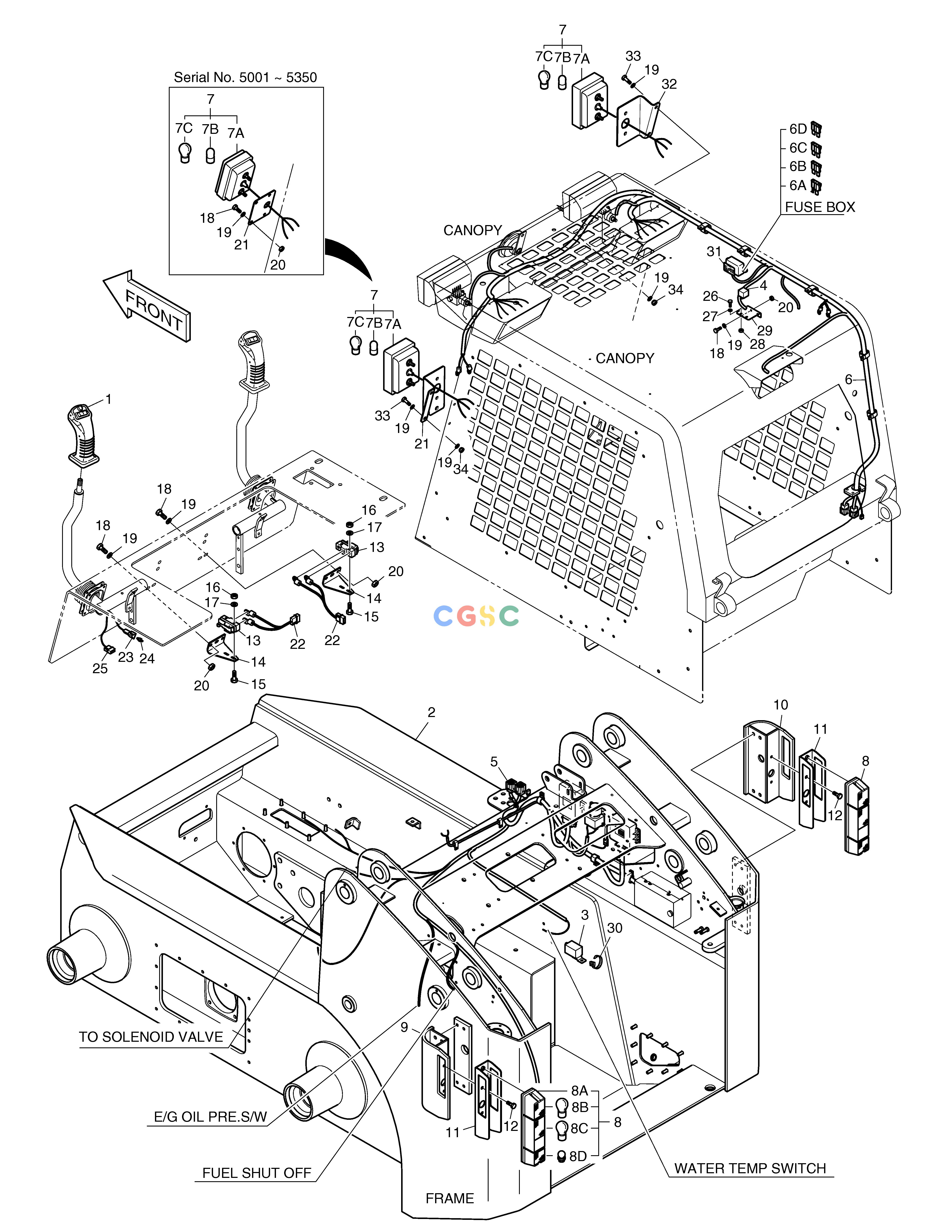

K1023378A
|
[-] |
LIGHTING SYSTEM
|
|
| 1. |
K1021941
|
[1] |
HANDLE
|
|
| 10. |
K1020947
|
[1] |
BRACKET(R.H)
|
|
| 11. |
K1019693
|
[2] |
BRACKET
|
|
| 12. |
K1023128
|
[4] |
SCREW
|
|
| 13. |
K1023015
|
[2] |
SWITCH;LIMIT
|
|
| 14. |
K1019897
|
[2] |
BRACKET
|
|
| 15. |
S3450403
|
[4] |
SCREW
|
|
| 16. |
S4012003
|
[4] |
NUT
|
|
| 17. |
S5000003
|
[4] |
WASHER;PLAIN M3
|
|
| 18. |
S0504663
|
[10] |
BOLT
|
|
| 18. |
S0504663
|
[6] |
BOLT
|
|
| 19. |
DS0401171
|
[10] |
WASHER;HARDENED
|
|
| 19. |
DS0401171
|
[14] |
WASHER;HARDENED
|
|
| 2. |
K1021445
|
[1] |
CHASSIS FRAME
|
|
| 20. |
S4016333
|
[10] |
NUT
|
|
| 20. |
S4016333
|
[6] |
NUT
|
|
| 21. |
K1020226
|
[2] |
PLATE
|
|
| 21. |
K1021965A
|
[1] |
BRACKET;LAMP(L.H)
|
|
| 22. |
K1019700
|
[2] |
HARNESS;PARK
|
|
| 23. |
K1022934
|
[1] |
HOUSING;RECEPTACLE
|
|
| 24. |
K1020088
|
[1] |
PIN;WEDGE LOCK
|
|
| 25. |
K1022963
|
[1] |
HOUSING;PIN
|
|
| 26. |
S3450853
|
[2] |
SCREW
|
|
| 27. |
S5000213
|
[3] |
. WASHER
|
|
| 28. |
S4016241
|
[2] |
NUT
|
|
| 29. |
K1020922
|
[1] |
BRACKET
|
|
| 3. |
2525-1010
|
[1] |
UNIT;BLINKER
|
2525-1012
|
| 3. |
2525-1012
|
[1] |
UNIT;BLINKER
|
|
| 30. |
K1022971
|
[1] |
CLIP;BAND
|
|
| 31. |
K1021885
|
[1] |
PLATE;NAME(FUSE DIAGRAM)
|
|
| 32. |
K1021966A
|
[1] |
BRACKET;LAMP(R.H)
|
|
| 33. |
S0504863
|
[4] |
BOLT
|
|
| 34. |
K1023117
|
[4] |
NUT;LOCK
|
|
| 4. |
K1019698
|
[1] |
RELAY;SEALED
|
|
| 5. |
K1021868
|
[1] |
HARNESS;E/G
|
|
| 6. |
K1021869
|
[1] |
HARNESS;CANOPY
|
|
| 6A. |
K1019105
|
[1] |
FUSE 5A
|
|
| 6B. |
K1019052
|
[1] |
FUSE 10A
|
|
| 6C. |
K1022925
|
[4] |
FUSE 15A
|
|
| 6D. |
K1022931
|
[1] |
FUSE 30A
|
|
| 7. |
K1020957
|
[2] |
LAMP;HEAD
|
|
| 7A. |
K1024671
|
[1] |
LAMP;COMBI
|
|
| 7B. |
S863105H
|
[1] |
BULB 12V 5W
|
|
| 7C. |
S864121H
|
[1] |
BULB 12V 21W
|
|
| 8. |
K1022950
|
[2] |
REAR LAMP ASS'Y
|
|
| 8A. |
K1022952
|
[1] |
CASE;LAMP
|
|
| 8B. |
S864123H
|
[1] |
BULB 12V 23W
|
|
| 8C. |
S866123H
|
[1] |
BULB 12V 23/8W
|
|
| 8D. |
S863110H
|
[1] |
BULB 12V 10W
|
|
| 9. |
K1020946
|
[1] |
BRACKET(L.H)
|
|
