斗山零件查询ADDITIONAL LAMP-ITALY 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

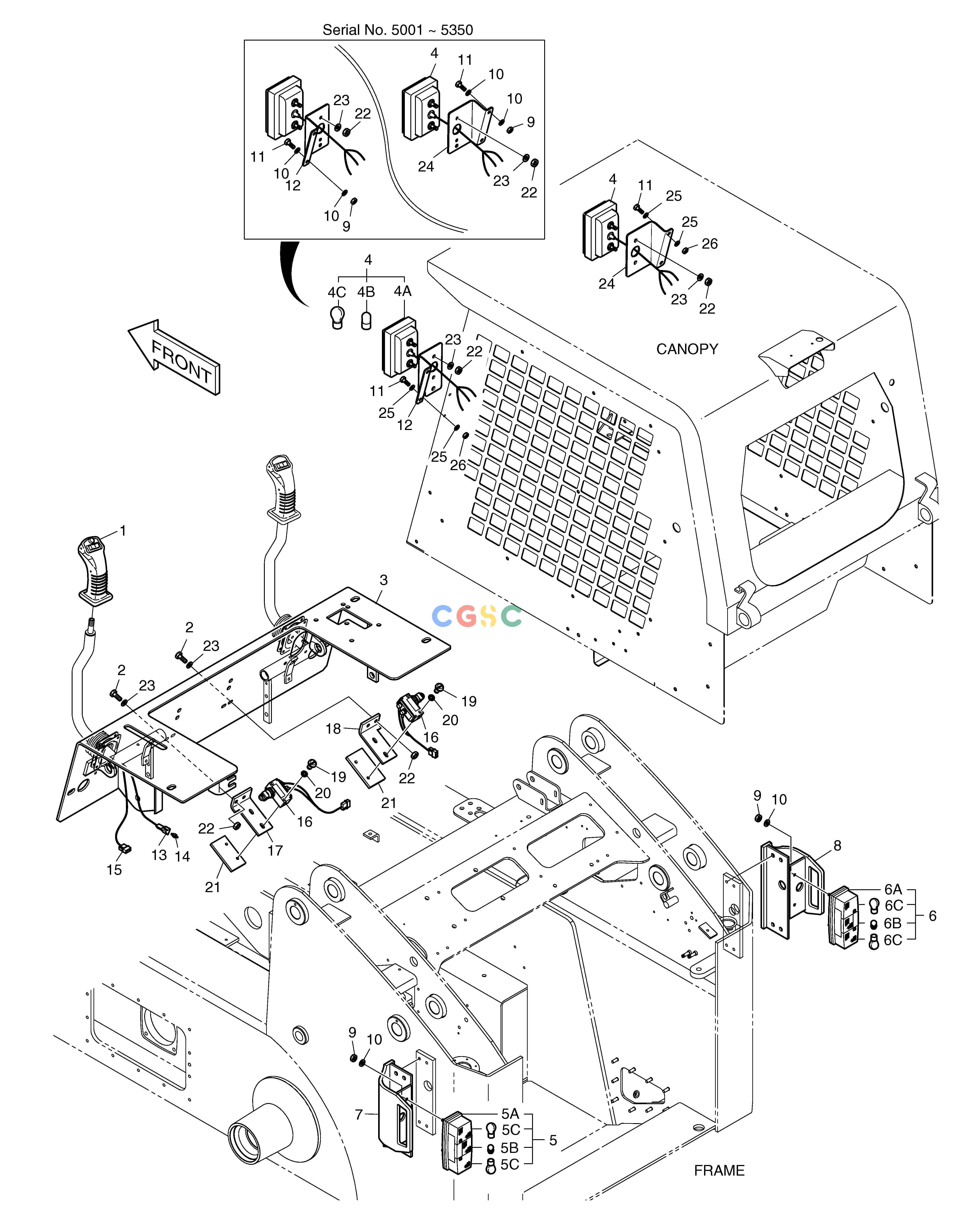

K1021178A
|
[-] |
LIGHTING SYSTEM
|
|
| 1. |
K1021941
|
[1] |
HANDLE
|
|
| 10. |
S5000213
|
[12] |
. WASHER
|
|
| 10. |
S5000213
|
[4] |
. WASHER
|
|
| 11. |
S0502963
|
[4] |
BOLT
|
|
| 11. |
S0504863
|
[4] |
BOLT
|
|
| 12. |
K1021965
|
[1] |
BRACKET;LAMP(L.H)
|
K1021965A
|
| 12. |
K1021965A
|
[1] |
BRACKET;LAMP(L.H)
|
|
| 13. |
K1022934
|
[1] |
HOUSING;RECEPTACLE
|
|
| 14. |
K1020088
|
[1] |
PIN;WEDGE LOCK
|
|
| 15. |
K1022963
|
[1] |
HOUSING;PIN
|
|
| 16. |
K1022960
|
[2] |
SWITCH
|
|
| 17. |
K1021055
|
[1] |
BRACKET(L.H)
|
|
| 18. |
K1021056
|
[1] |
BRACKET(R.H)
|
|
| 19. |
S3450633
|
[4] |
SCREW
|
|
| 2. |
S0504663
|
[4] |
BOLT
|
|
| 20. |
S5000113
|
[4] |
WASHER
|
|
| 21. |
K1020926
|
[2] |
PLATE
|
|
| 22. |
S4012333
|
[8] |
NUT
|
|
| 23. |
S5000313
|
[8] |
WASHER
|
|
| 24. |
K1021966
|
[1] |
BRACKET;LAMP(R.H)
|
K1021966A
|
| 24. |
K1021966A
|
[1] |
BRACKET;LAMP(R.H)
|
|
| 25. |
DS0401171
|
[8] |
WASHER;HARDENED
|
|
| 26. |
K1023117
|
[4] |
NUT;LOCK
|
|
| 3. |
K1021864
|
[1] |
PLATE;UPPER
|
|
| 4. |
K1020957
|
[2] |
LAMP;HEAD
|
|
| 4A. |
K1024671
|
[1] |
LAMP;COMBI
|
|
| 4B. |
S863105H
|
[1] |
BULB 12V 5W
|
|
| 4C. |
S864121H
|
[1] |
BULB 12V 21W
|
|
| 5. |
K1020959
|
[1] |
LAMP;REAR(L.H)
|
|
| 5A. |
K1024673
|
[1] |
LAMP;REAR COMBI
|
|
| 5B. |
S863110H
|
[1] |
BULB 12V 10W
|
|
| 5C. |
S864121H
|
[2] |
BULB 12V 21W
|
|
| 6. |
K1020958
|
[1] |
LAMP;REAR(R.H)
|
|
| 6A. |
K1024672
|
[1] |
LAMP;REAR COMBI
|
|
| 6B. |
S863110H
|
[1] |
BULB 12V 10W
|
|
| 6C. |
S864121H
|
[2] |
BULB 12V 21W
|
|
| 7. |
K1021183
|
[1] |
BRACKET(L.H)
|
|
| 8. |
K1021184
|
[1] |
BRACKET(R.H)
|
|
| 9. |
S4012233
|
[8] |
NUT
|
|
| 9. |
S4012233
|
[4] |
NUT
|
|
