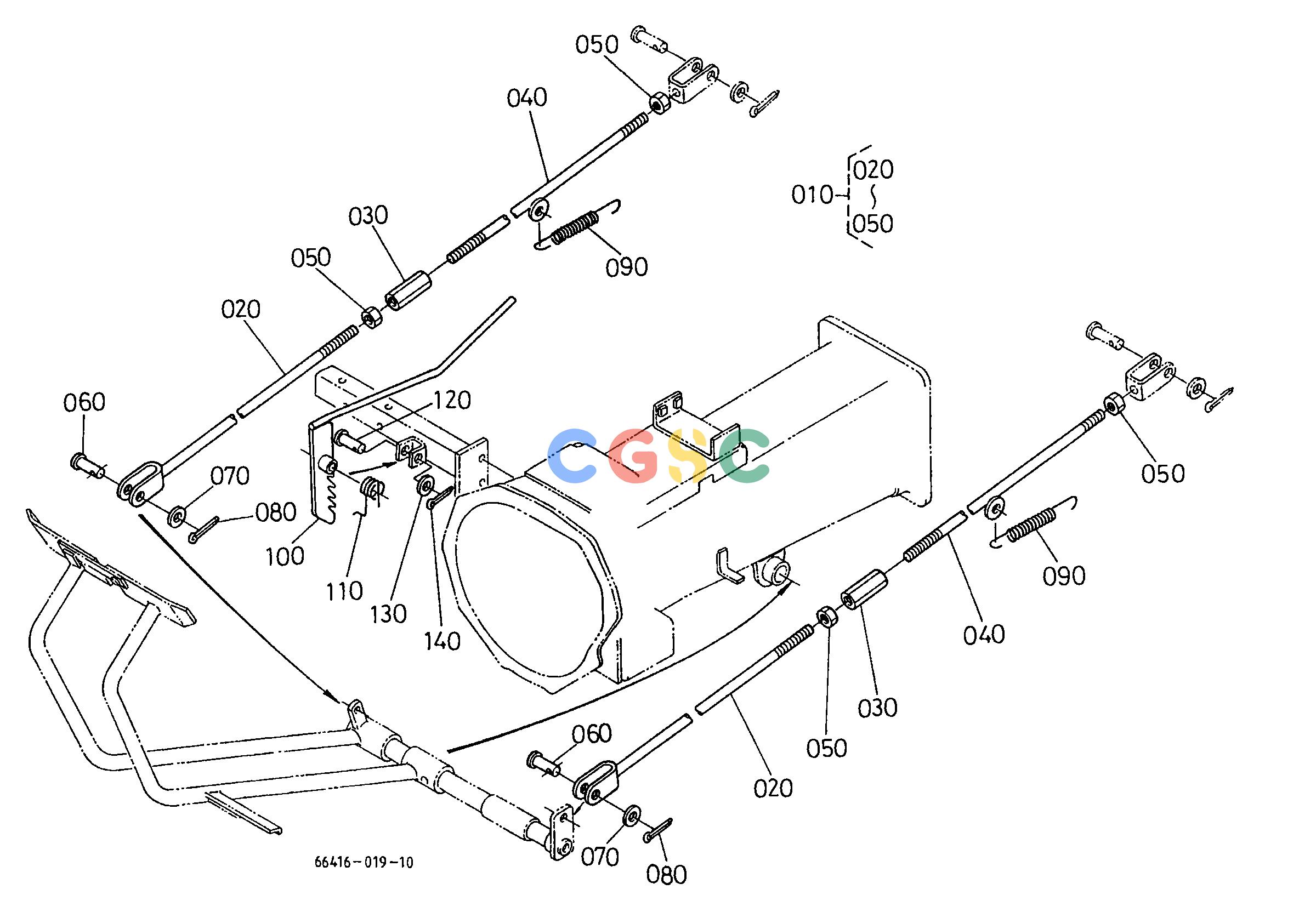

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6740142800
|
[2] |
ASSY ROD BRAKE
|
0.5720(lbs); 0.260
|
| 020. |
6740142810
|
[2] |
ROD BRAKE FRONT
|
0.1760(lbs); 0.080
|
| 030. |
6659142410
|
[2] |
TURNBUCKLE
|
0.1012(lbs); 0.046
|
| 040. |
6740142820
|
[2] |
ROD BRAKE REAR
|
0.2970(lbs); 0.135
|
| 050. |
0211250080
|
[4] |
NUT
|
0.0066(lbs); 0.003
|
| 060. |
0512250822
|
[2] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 070. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
6659143190
|
[2] |
SPRING BRAKE RETURN
|
0.0968(lbs); 0.044
|
| 100. |
6641642830
|
[1] |
LEVER BRAKE LOCK
|
0.3300(lbs); 0.150
|
| 110. |
6780044560
|
[1] |
SPRING BRAKE LOCK
|
0.0330(lbs); 0.015
|
| 120. |
0512251235
|
[1] |
PIN JOINT
|
0.0748(lbs); 0.034
|
| 130. |
0401150120
|
[1] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 140. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
